Material: | Stainless Steel, iron-based; | Process: | Metal injection molding MIM; |
Color: | various; | Supply Ability: | 5000 Piece/Pieces per Week; |
Payment Terms: | L/C,T/T,Western Union,paypal; | Packaging Detail: | EXW, OEM; |
Port: | shenzhen, hongkong; | Shape: | custom; |
Tolerance: | 0.03~0.05 mm; | Product name: | MIM parts; |
Surface treatment: | Painting; | Size: | Customised; |
Product Keywords: | metal injection molding; | Plating: | Chrome; |
Brand Name: | ZCMIM; | Perfect Weight: | 0~100g; |
Type: | Metal Injection Molding; | Certification: | ISO9001/14001; |
Place of Origin: | Guangdong China (Mainland); | Application: | Small metal parts; |

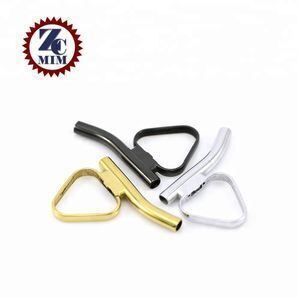

MIM Metal Injection Molding For Custom Precision Machining Part
Contrast for MIM and Traditional Process
Item | Metal Injection Mold(MIM) | PM | Precision Casting | Machining Operation | Stamping |
Density | 98% | 86% | 98% | 100% | 100% |
Tensile Strength | High | Low | High | High | High |
Surface Finish | High | Medium | Medium | High | High |
Small size | High | Medium | Low | Medium | High |
Thickness | High | Medium | Medium | Low | High |
Complexity Level | High | Low | Medium | High | Low |
Design Tolerance | High | Medium | Medium | Medium | Low |
Capacity | High | High | Medium | Medium-High | High |
Range of Applying Material | High | High | Medium-High | Medium | Medium |
Supply Ability | High | High | Medium | Low | High |
Contrast for MIM and Precision Casting Molding
Property | MIM | Precision Casting Molding |
Minimum Thickness | 0.4mm | 2mm |
Maximum Thickness | 10mm | Unlimited |
Minimum Diameter | 0.4mm | 2mm |
Tolerance of Diameter 4mm | +/-0.06mm | +/-0.2mm |
Surface Roughness | 1μm | 1μm |
FAQs
1. What is Metal injection molding MIM technology?
Metal Injection Molding MIM is a manufacturing technology that combines the shape making complexity of Plastic Injection Molding with the material flexibility of Powder Metallurgy.
2. Is the metal melted during the molding process?
No, only the binders are melted allowing the powders to flow like a plastic material. Upon cooling the binders solidify giving the part strength for handling. The part must be subsequently sintered to high density to achieve the required mechanical properties.
3. How does Metal Injection Molding (MIM) differ from the Conventional PM process?
Conventional PM uses high, uniaxially applied pressure to coarse metal powders in a die set to produce moderately complex components. Typically, no further densification is gained during the sintering process. Densities achieved by this method are typically in the range of 80-90% of theoretical which limit the physical properties that can be achieved for the given alloy. Metal Injection Molding (MIM) products are not limited in shape complexity due to the flexibility of the injection molding process. The fine metal powders used - combine with higher sintering temperatures to allow MIM to achieve near full density in the final article. This allows MIM products to have similar properties as wrought materials.
4. Does the part shrink during removal of binders?
No, the part will not change size in the debinding phase of the process. However, since sintering achieves near full density of the powders, the part will undergo a size change of up to 20%.
5. Why should I use Metal Injection Molding (MIM)?
Metal Injection Molding (MIM) excels in producing small, highly complex parts that are difficult or cost prohibitive to produce with conventional technologies such as machining or casting.
