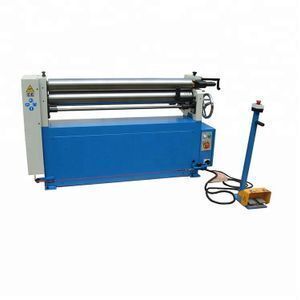

Electric 3 Roller Slip Roll Bending Machine for Metal Sheet

Supplier: Metform (Shanghai) Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Chartter Xu
Price: $600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automation:	Automatic;	Warranty:	1 Year;
Supply Ability:	100 Set/Sets per Month slip roll bending machine;	brand name:	Metform;
type:	FM-2.5*1300;	port:	Shanghai;
payment terms:	L/C T/T;	Material / Metal Processed:	Carbon Steel;
Main Motor:	1.5kw;	Machine Type:	Beading Machine;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Extra Services:	Cut To Length;	product name:	slip roll bending machine;
place of origin:	Shanghai,songjiang;	Raw Material:	Sheet / Plate Rolling;

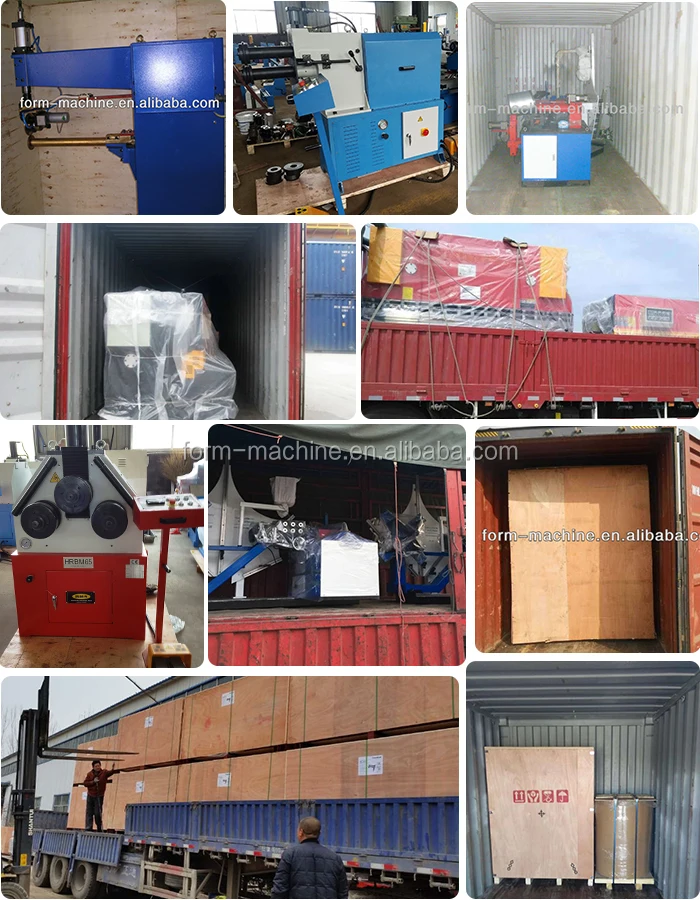

Packaging Detail:	sea worthy packing slip roll bending machine;	Machine Type:	Roll Forming Machine;
Power:	Hydraulic;	Max. Working Length (mm):	1300;
Port:	Shanghai;	Brand Name:	slip roll bending machine;
After-sales Service Provided:	Free spare parts,Online support,Video technical support;	Payment Terms:	L/C,T/T,Western Union;
Place of Origin:	Shanghai China (Mainland);	Certification:	ISO 9001:2000;

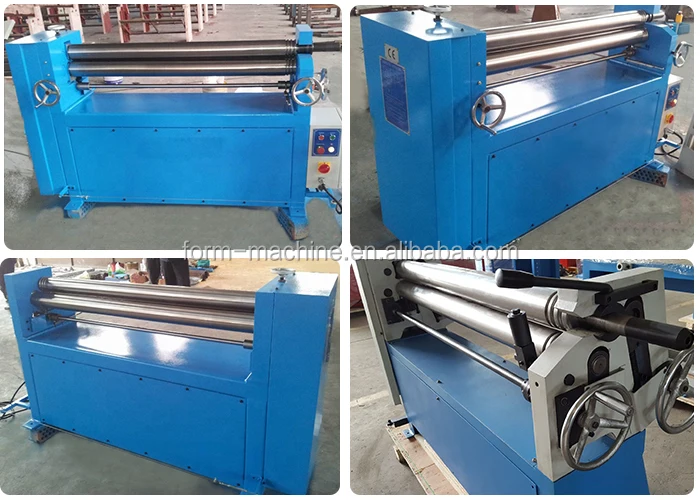

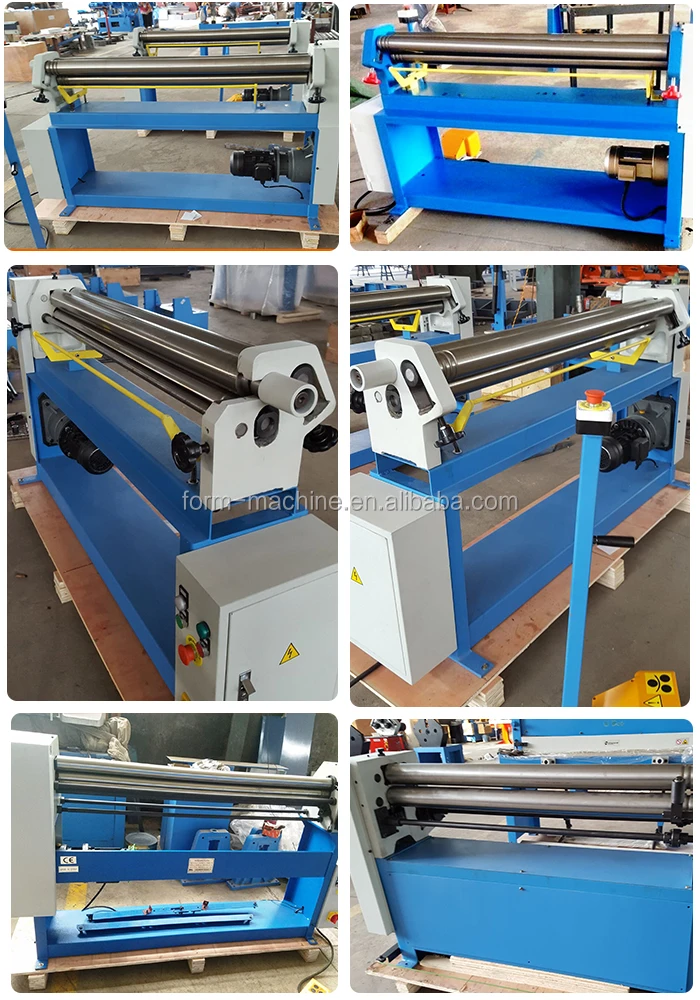

Electric 3 Roller Slip Roll Bending Machine for Metal Sheet

Product Description

1) Features and Description

The machine is asymmetric 3-roll mechanical and asymmetric type. It is easy for operation and maintenance.

Upper roll is driven by motor by means of reducer. And lower roll is moved vertically while the side roll is moved upper and down at an angle, manually by hand wheel for bending sheet at different diameter.

It is capable of round rolling and pre-bending.

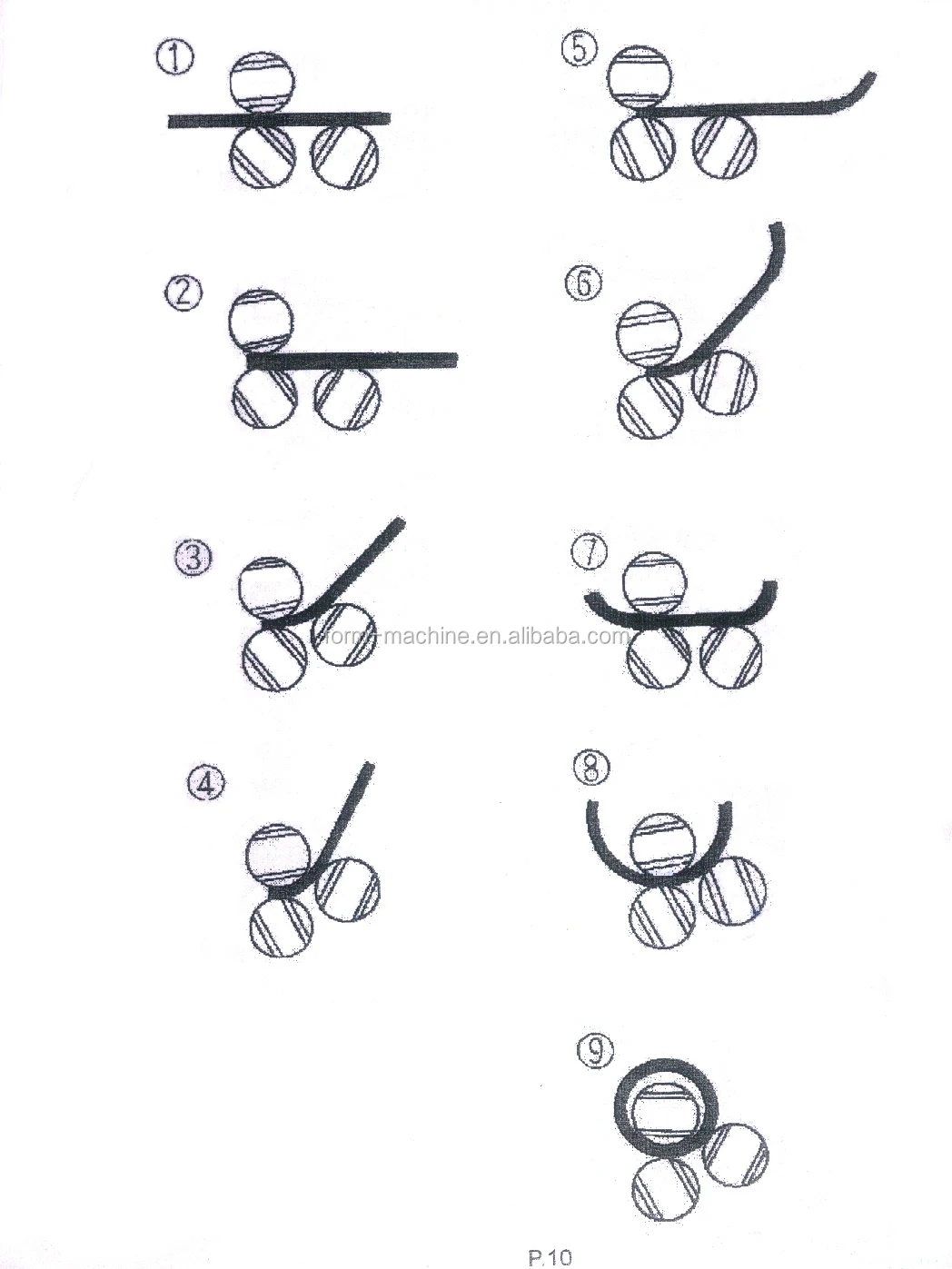

Referring to the rolling process schematic diagram below for reference.

With grooves wire for bending wires.

Conical bending device, supplied as accessory.

Optional equipment: Side roll electric adjusting system with digital display controller could be could be equipped.

2) Main Technical Data

Capacity:

Max. Thickness	2.5 mm
Max. Width	1300mm
Min. Diameter with full length	120 mm
Rolls made of forged steel 42CrMo4(SCM420), surface hardened HRC50
Diameter	90 mm
Top roll swings out manually with a cam lock
main motor power	1.5 kw

Company Information

Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
