VMC850L 4th axis cnc milling machine for mould machining

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $28500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO;	Repeatability (X/Y/Z) (mm):	0.005;
Dimension(LWH):	2260x1750x2200mm;	Table size:	500x1000mm;
Warranty:	13 months;	machine type:	cnc milling machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Brand Name:	WMT;
Condition:	New;	Single gross weight:	5,200 KG;
Spindle taper:	BT40;	Weight (T):	5.2;
Spindle unit:	Taiwan Brand;	Voltage:	380V;
Table Travel (Y) (mm):	500;	Max. Spindle speed:	8000rpm or 10000rpm;
Place of Origin:	Anhui China (Mainland);	Single package size:	200X180X232 cm;
Table Travel (Z) (mm):	600;	Logo printing:	OEM service;
Table Travel (X) (mm):	850;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Package Preview:	https://sc01.alicdn.com/kf/HTB1MAbwIuuSBuNjSsziq6zq8pXaI.jpg_640x640.jpg;	CNC Control System:	GSK, FANUC,Mitsubishi;
Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Power(W):	7.5kw/11kw;
Positioning Accuracy (mm):	0.01;	Key Selling Points:	High-accuracy;
Type:	Vertical;	Power (kW):	7.5;
Leadsrew:	ball screw;	Weight:	5600kgs;
Package Type:	standard export package;	Selling Units:	Single item;
Table Size (mm):	1000X500;

Product Description

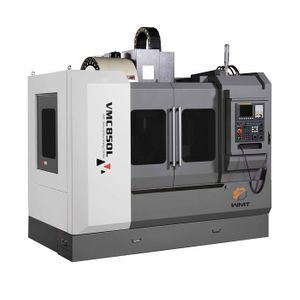

WMT BRAND Vertical machining center VMC850L

Description:

With advanced international standard of designing,modern structure, high quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing,WMT BRAND Vertical machining center VMC850L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

Features:

- Spindle unit BT40 by KENTURN Brand with 8000rpm or 1000rpm as your requirement.
- Precious Ball Screw by PMI or HIWIN Brand
- Disk type ATC 24pcs by OSHIMA Brand
- FANUC 0i MF(5) as standard CNC controller system, and Mitsubishi System or Siemens system as optional selection.
- Optimized Structure of Heavy Rail Linear Guide
- Suitable for machining parts of automobile, mold industry and so on.

Technology Data

High precision CNC milling machine, vertical machining center VMC850L

Specification	VMC850L
Worktable
Worktable size(LxW)	1000x500mm
T-slot (NxWx D)	5x18x100mm
Travel
X/Y/Z axis travel	850/500/600mm
Machine range
Distance from spindle center to column	572mm
Distance from spindle nose to worktable surface	120-720mm
Spindle
Spindle taper	BT40
Spindle power	7.5/11kw
Max.spindle speed	8000rpm
Feed(direct drive)
Max.feed speed	12m/min
Rapid feed speed(X/Y/Z)	32/32/30m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw	4016
Tool magazine
Tool magazine capacity	24T
Max.length of tool	300mm
Tool change time(T-T)	2.5s
Positioning accuracy (National standard)
Positioning accuracy(X/Y/Z)	±0.010mm
Re-positioning accuracy(X/Y/Z)	±0.005mm
Machine dimension
LxWxH	2540x2320x2780mm
Machine weight
Max.loading of worktable	500kgs
Machine weight	5200kgs

Standard Equipment:

1) with complete machine cover
2) Disc type ATC: 24 pcs tools
3) Taiwan KENTURN brand BT40 Spindle, spindle speed=80-8000rpm
4) Taiwan PMI X/Y/Z linear guideway, ballscrew
5) Taiwan PMI ballsacew
