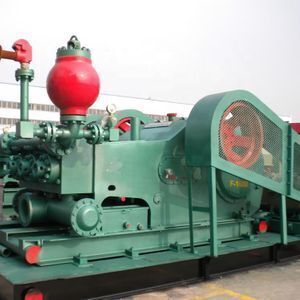

BOMCO F1600 Suction Drilling Mud Pump

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $113000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Applicable Industries:	Energy & Mining;	Certification:	API;
Selling Units:	Single item;	Outlet dia.(in):	5-1/8" Flange 5000psi;
Single package size:	110X20X30 cm;	Stroke length (in/mm):	12"/305;
Inlet dia. (in/mm):	12"/305;	Power rating HP/KW:	1600/ 1193;
Max. liner(in/mm):	7" / 180;	Package Type:	Container and Standard Export Packing;
Gear ratio:	4.206;	Valve:	API 7 #;
Type:	Drilling Mud Pump;	Overall dimention LWH (mm):	461532762688;
Single gross weight:	68 KG;	Stroke rating SPM:	120;

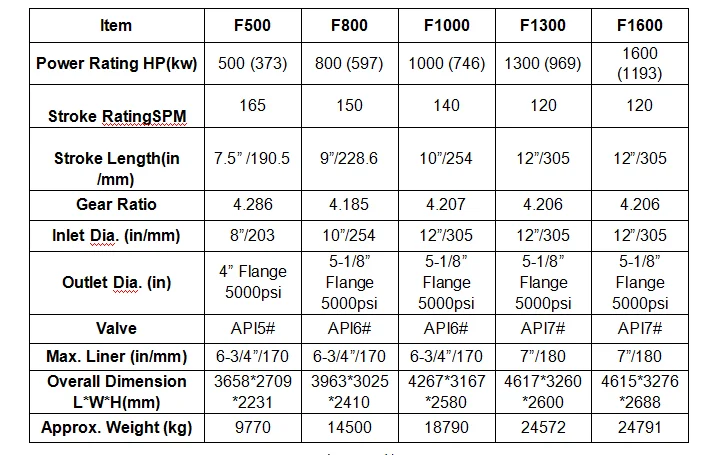

We supply quality Emsco F-series mud pumps including F-500, F-800, F-1000, F-1300, F-1600, RLF-2200, and China National 3NB series mud pump, including 3NB350, 3NB500, 3NB-600, 3NB800, 3NB1000A/D, 3NB1300A/D, and 3NB1600. The full range of products can well satisfy any need from the clients.

Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .

F Series Mud Pump Features:

1. F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.

2. F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.

3. The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.
