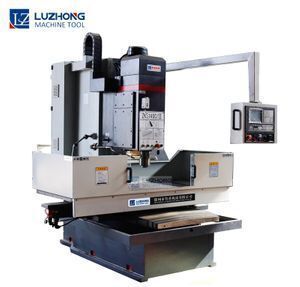

Taiwan Quality Vertical CNC Drilling Machine ZK5140C ZK5150C

Click here to contact

Product details

CNC or Not:	CNC;	Feed resistance:	16000;
Dimension(LWH):	155015302512;	model:	ZK5140C ZK5150C;
Voltage:	Customized;	MAIN MOTOR POWER:	3-4;
Model Number:	ZK5140C ZK5150C;	Certification:	CE ISO;
After-sales Service Provided:	Online support,Video technical support;	Weight:	3000kg;
Packaging Detail:	Taiwan Quality Vertical CNC Drilling Machine ZK5140C ZK5150C Type of package: Plywood case Packaging size: 155015302512 CM(one set in one case) N.W./G.W.: KGS;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance Taiwan Quality Vertical CNC Drilling Machine;
Brand Name:	Luzhong Brand;	Product name:	Vertical Drilling Machine ZK5140C ZK5150C CNC Drilling Price;
keywords:	vertical drilling machine price;	Range of Spindle Speed(r.p.m):	31.5-1400rp;
Drilling Speed:	31-1400r/min;	Place of Origin:	Shandong China (Mainland);
keywords3:	mini cnc drilling machine;	Power(W):	3;
keywords2:	cnc drill and tapping machine;	Condition:	New;
Spindle taper:	4/5;	Max. drilling diameter:	40/50;
Port:	Any port of China Taiwan Quality Vertical CNC Drilling Machine ZK5140C ZK5150C;	Warranty:	1 Year;
Supply Ability:	200 Set/Sets per Month Taiwan Quality Vertical CNC Drilling Machine ZK5140C ZK5150C;

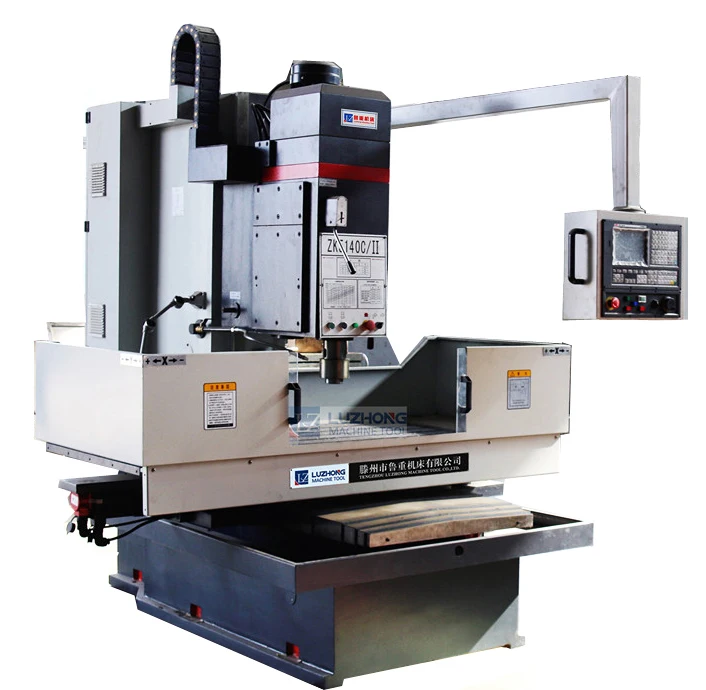

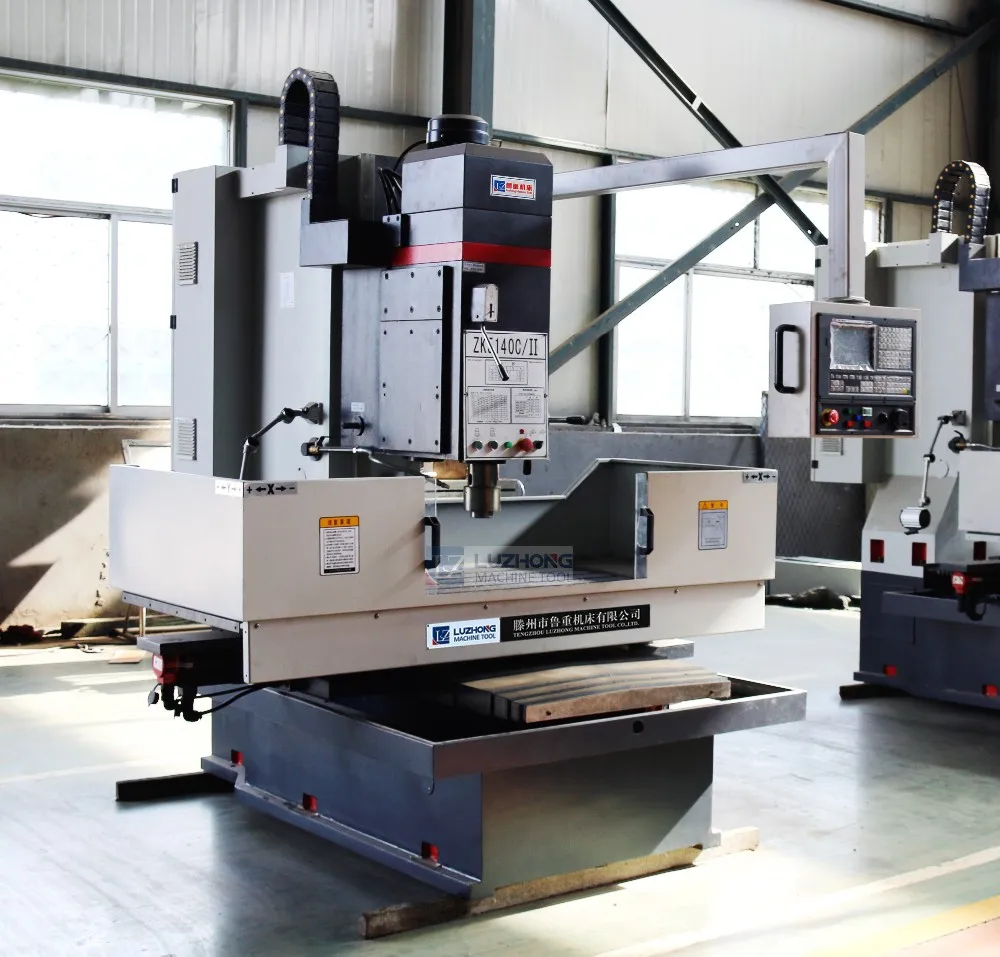

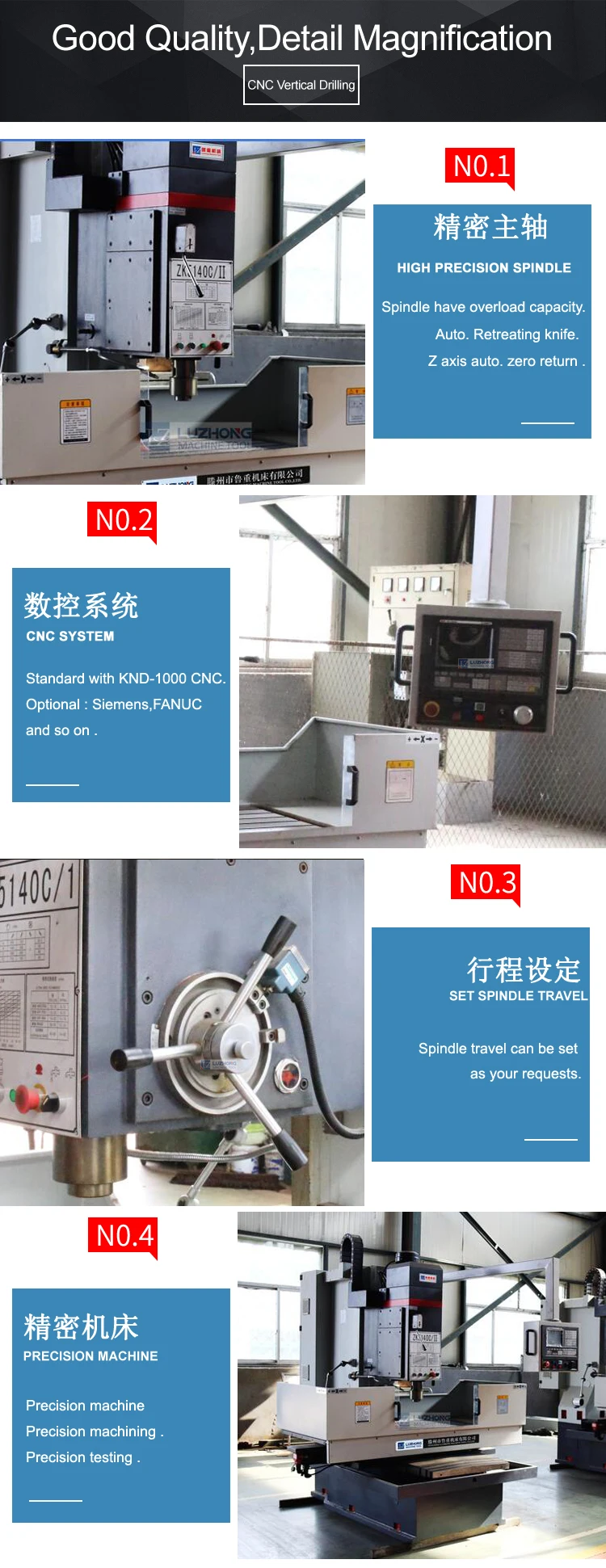

Taiwan Quality Vertical Drilling Machine ZK5140C ZK5150C CNC Drilling

Product Description

Product main technical parameters

Main Technical Specifications		Unit	ZK5140C	ZK5150C	ZK5140C/1	ZK5150C/1	ZK5140C/2	ZK5150C/2		ZK5150C/3	ZK5150C/3	ZK5150C/5		ZK5150C/5
Max. drilling diameter		mm	40	50	40	50	40	50		40	50	40		50
Max. Feed resistance		N	16000	20000	16000	20000	16000	20000		16000	20000	16000		20000
Max. Torque of spindle		Nm	350	400	350	400	350	400		350	400	350		400
Spindle taper		Morse	4	5	4	5	4	5		4	5	4		5
Main motor power		kw	3		3		3			4		4
Range of spindle speed		r/min	31.5-1400		31.5-1400		31.5-1400			31.5-1400		31.5-1400(stepless)
Feed range	X.Y axis	mm/ min	0.6-3000		0.6-3000		0.6-3000			0.6-3000		0.6-3000
			0.3-2000		0.3-2000		0.3-2000			0.3-2000		0.3-2000
	Rapid feed Z axis	mm/ min	6000(9000)		6000(9000)		6000(9000)			6000(9000)		6000(9000)
			3000(4500)		3000(4500)		3000(4500)			3000(4500)		3000(4500)
Spindle box stroke		mm	470		470		470			470		470
The axis of travel	Table X-axis	mm	600		600		1000			850		1200
	Table Y-axis	mm	400		600		600			800		800
	Spindle Z-axis	mm	250		250		250			250		250
Distance between spindle nose to worktable		mm	0-600	0-560	0-600	0-560	0-600		0-560	180-900	90-810	180-900			90-810
Control method		mm	Microcomputer three-axis control, X,Y-coordinate linkage
Size of worktable (L*W )		mm	850×450		850×650		1250×650			1100x850			1450x850
Positioning accuracy (X and Y)		mm	0.05(0.04)		0.05(0.04)		0.05(0.04)			0.05(0.04)			0.05(0.04)
Repeat positioning accuracy (X and Y)		mm	0.02(0.015)		0.02(0.015)		0.02(0.015)			0.02(0.015)			0.02(0.015)
Dimensions (LWH)		mm	1550×1530×2512		1550×1740×2512		1800×1854×2512			1700x2482x2885			2000x2482x2885
