Packaging Detail: | Stainless Steel Water Filter Housing in Wooden/MDF panel carton; | Usage: | medicine water filtration; |
Delivery Detail: | 3-5working day; | Inlet and outlet: | tri-clamp; |
Round: | 1, 3, 5, 8,......100; | Cartridge filter: | 226, 222, 220, etc; |
Brand Name: | TS filter; | Length: | 10/20/30/40Inch; |
Grade: | Pharmceutical; | Place of Origin: | Zhejiang China (Mainland); |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba; | Model Number: | BJH; |
Processing Types: | pharmaceutical filtration equipment; | Operating Pressure: | 6.0-10.0bar; |
Product name: | 10" filter housing; | Type: | water filter cartridge filter housing; |
Supply Ability: | 1000 Piece/Pieces per Month; | Port: | Shanghai or Ningbo; |
Industrial 10" filter housing with tri-clamp for medicine water filtration
filter cartridge housings are all made of 316L (or 304) Stainless steel.
Cartridge Length From 10" to 40". Cartridge adapter including 226, 222, DOE.

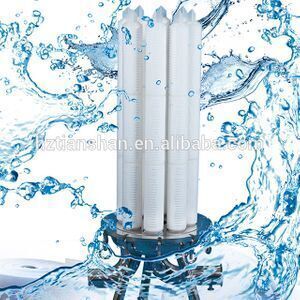

filter cartridge from single cartridge up to 60 cartridges
Applications for our multi cartridge filter housing include biopharm, food, winery, chemical, mineral water treatment, etc.
Sales engineer : Nina
Email: lyy#tsjmlc.com
Skype: andrea.liu54
Complete Stainless Steel Construction
| Reduces bacterial/particle adhesion and no dead space |
Excellent corrosion resistance | |
Easy To Install/Easy to Clean
| Easy To Install Design With Sanitary Connections, Easy to Clean |
Requires minimum floor space and quickly dismantles for easy cleaning | |
Housings Accommodate
| Suitable for small to large batch sizes and flow rates |
High pressure & high temperature designs are available | |
Clean-in-Place (CIP) /Steam-in-Place (SIP) Design | |
Typical Applications
| Ideal filtration equipment for food&beverage, pharmaceutical, biotechnology, |
chemical and other industries | |
Technical Specification
| Designed Pressure: 7.2bar(104psi)with in 30mins. |
Max.operating pressure: 6.0bar(87psi) | |
6.0bar(87psi): Electro polished, Ra≤0.2um | |
Designed flow rate: 0.2-100 t/h | |
|
Cartridges | Body Closure | Dimensions(mm) | |||||
Nos. | Length | d (outlet/inlet) | D | B | H1 | H | |
1 | 5" | Ferrule clamp | 1inch | 102 | 180 | 120 | 570 |
10" | 690 | ||||||
20" | 940 | ||||||
30" | 1190 | ||||||
3 | 10" | Stud bolts | 1 1/4 inch | 184 | 240 | 180 | 720 |
20" | 980 | ||||||
30" | 1210 | ||||||
5 | 10" | Stud bolts | 1.5 inch | 219 | 280 | 200 | 130 |
20" | 990 | ||||||
30" | 1220 | ||||||
40" | 1460 | ||||||
7 | 20" | Stud bolts | 1 3/4 inch | 273 | 420 | 210 | 1060 |
30" | 1290 | ||||||
40" | 1530 | ||||||
9 | 20" | Stud bolts | 2 inch | 325 | 460 | 210 | 1080 |
30" | 1310 | ||||||
40" | 1550 | ||||||
12 | 20" | Stud bolts | 2 1/4 inch | 350 | 480 | 240 | 1150 |
30" | 1380 | ||||||
40" | 1620 | ||||||
18 | 20" | Stud bolts | 3 inch | 400 | 500 | 260 | 1160 |
30" | 1390 | ||||||
40" | 1630 | ||||||
21 | 20" | Stud bolts | 3.5 inch | 450 | 600 | 280 | 1190 |
30" | 1420 | ||||||
40" | 1660 |
ORDER INFORMATION
PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | How to Order?- Example | |||||
BJH | 304-SUS304 | 01 - Single | AA-DOE | 10" - 10 | Material: SUS304 | |||||
316-SUS316L | 03 - Three | CN-226/FIN | 20" - 20 | Cartridge Nos.: Single | ||||||
05 - Five | BN-222/FIN | 30" - 30 | Cartridge adapter:DOE | |||||||
07 - Seven | AF-220/FLAT SEAL | 40" - 40 | Cartridge length: 10" | |||||||
09 - Nine | BF-222/FLAT SEAL | 5" - 05 | ||||||||
10 - Ten | CF-226/FLAT SEAL | Other - XX | Selection Code is: BJH30401AA10 | |||||||
12 - Twelve | ||||||||||
18 - Eighteen | ||||||||||
21 - Twenty One |
