Warranty: | 1 Year / 2000 Hours; | Engine: | B5.9; |
Warranty: | 1 Year; | Hydraulic Cylinder Brand: | Imported; |
After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts; | Gross Power: | 112 kW (150.2 hp) @1,950 rpm; |
Operating Weight: | 25500kg; | Type: | Hydraulic Crawler Excavator; |
Place of Origin: | Guangxi China (Mainland); | Engine Brand: | Weichai; |
Max Digging Radius: | 9580mm; | Single gross weight: | 25,500 KG; |
Condition: | New; | Package Preview: | https://sc02.alicdn.com/kf/Hd1b62288e0324ff9bc5e4dd1300d1fcem.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H1373e7157b2b4d1aaa5ee401b2efec45a.jpg_640x640.jpg; |
Overall length of crawler: | 4635mm; | Hydraulic Valve Brand: | Imported; |
Boom length: | 6000mm; | Arm length: | 2400mm; |
Hydraulic Pump Brand: | Imported; | Power(W): | 112 kw; |
Gradeability: | 70%; | Single package size: | 1020X319X320 cm; |
Bucket capacity: | 0.8m3; | Brand Name: | Liugong; |
Dump height: | 6650mm; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Moving Type: | Crawler Excavator; |
Package Type: | Nude Packing or by Container.; | UNIQUE SELLING POINT: | High operating efficiency; |
Rated Speed: | 3.1-5.3km/h; | Selling Units: | Single item; |
Certification: | CE ISO; | Maximum Digging Height: | 9525mm; |
Maximum Digging Depth: | 6385mm; |

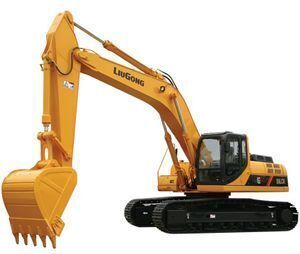

25 TON Hydraulic Digging Construction Equipment Liugong Crawler Excavator CLG925D
Specifications:
World Class Components
The CLG925DII uses major components and systems form advanced suppliers and advanced in-house technology from LiuGong.
Parts, Service and Attachments to Count On
Part of a reliable excavators is having parts, service and attachments so reliable you can count on them whenever, wherever. Genuine LiuGong parts are the perfect match to keep your investment working over the years and can be counted on when you need. Service is reliable and can be counted on to keep your excavators up and running. Attachments for the machine
have been made in-house and are part of a complete LiuGong system.
Standard reinforced bucket
Reinforced idler linkage for the toughest jobs
Rock guard plates with vertical reinforcement strips protect the arm.
Reliable lower frame
Wider More Stable Axles
The CLG925DII has an improved center of gravity thanks to wider more stable axles, this makes operation easier, more reliable and safer.
Ergonomic Design
This is one of LiuGong’s many ergonomically designed machines, placement of the buttons, levers, seat, and layout of the operator environment is designed to fit the body of the operator.
The pilot lock handle on the handrail box prevents unexpected movement since it locks the machines ignition system. Soft, flexible, pilot control operating handles are convenient and comfortable for long operating hours. Large, swing design foot pedals are comfortable and allow the operator to keep their feet on the foot rest and still operator the machine. Easy to clean, form fitted, floor mat is more functional and durable. High-back suspension seat is adjustable for all operator weights and heights. High-powered air conditioner and efficient arrangement of air outlets combine for great operator comfort-even when the front window is open.
Minimal Kick Back
During operation and swinging the kick back is minimalized not only to improve control and operator comfort but also to reduce damage to the machine. Comfortable, Low Noise Cabin
The spacious climate controlled cab is built with advanced sound reducing technology for both outside the cab and at the operator’s ear.
Excellent Visibility
The enlarged cab allows gives the operator excellent 360 degree visibility including the working instruments, and the rear of the machine. This makes operation easier and much safer.
Specifications:
Operating Weight | 25,500 kg |
Bucket Capacity | 0.8-1.4 m³ |
Engine | B5.9 |
Gross Power | 133 kW (178.3 hp) @ 2,000 rpm |
Net Power | 125 kW (167.6 hp) @ 2,000 rpm |
Peak Torque | 708 N•m @ 1,500 rpm |
Travel Speed | High:5.3 km/h Low:3.1 km/h |
Drawbar Pull | 195 kN |
Swing Speed | 11.5 rpm |
Arm Breakout Force, max, ISO | 114 kN |
Bucket Breakout Force, max, ISO | 160 kN |
Maximum Dig Depth | 7,015 mm |
Reach at Ground Level | 10,230 mm |
Depth of 8’ Level Bottom | 6,690 mm |
Maximum Dig Height | 9,720 mm |
Dump Height | 6,840 mm |
Maximum Dig Depth of Vertical Wall | 5,960 mm |
Overall Lenth | 10,200 mm |
Overall Width | 3,190 mm |
Overall Height | 3,200 mm |
