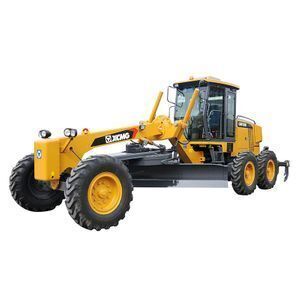

Mini Motor Grader GR215 XCMG for Sale

Click here to contact

Product details

Brand:	XCMG;	Place of Origin:	China;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Engine Brand:	Imported;
Dimension(LWH):	910526253470mm;	UNIQUE SELLING POINT:	High operating efficiency;
Port:	Shanghai;	Packaging Detail:	Nude Packing;
Type:	Wheel Manual Motor Grader;	Reverse Speed(km/h):	38;
Condition:	New;	Hydraulic Cylinder Brand:	Imported;
After-sales Service Provided:	Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available, No overseas service provided;	Engine Model:	6CTA8.3;
Supply Ability:	100 Unit/Units per Month;	Hydraulic Pump Brand:	Imported;
Brand Name:	XCMG;	Hydraulic Valve Brand:	Imported;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	1 year;
Working diameter:	500mm;	Certification:	ISO9001,CE;
Forward Speed(km/h):	38;

Mini Motor Grader GR215 XCMG for Sale

Product Description

Basic specification
Engine model	6CTA8.3
Rated power/speed	160kW/2200rpm
Dimension(LxWxH)	9105×2625×3470mm
Operating weight(Standard)	16500kg
Performance specification
Travelling speed ,forward	5,8,11,16,26,38 km/h
Travelling speed ,reverse	5,8,11,16,26,38 km/h
Tractive force(f=0.75)	98KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm
