China portable 40t/h asphalt drum mix plant ON SALE

Supplier: Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Shelly Hu
Price: $75000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Delivery Detail:	20days after deposit;	Certification:	ISO.CE;
After-sales Service Provided:	Engineers available to service machinery overseas;	Type:	Continuous Hot Mix;
Product name:	DRUM ASPHALT PLANT;	control room:	300022002500mm;
four storage bins:	16m3;	Weight:	50-130t;
Operation:	Full Auto/Manual Operation;	Supply Ability:	1 Unit/Units per Week;
Power(W):	75kW;	Warranty:	12 Months;
Brand Name:	LY;	Place of Origin:	Henan China;
Condition:	New;	Dimension(LWH):	30166m;
Payment Terms:	L/C,D/A,D/P,T/T;	Packaging Detail:	nude packing;
Model Number:	DHB40;	Port:	Shanghai;
Hot Asphalt Temperature:	130℃-165℃(adjustable);	Voltage:	220V/380V-50Hz;

Cheap price Asphalt Drum Mixing Plant 40tph 40 Tons Per Hour

Product Description

Model	Capacity	Measurement Accuracy		Total Power (kW)	Fuel Consumption (kg/t)
		Aggregate	Bitumen		Coal	Oil
DHB-40	40t/h	±1.5%	±1%	75	10-13	5.5-7

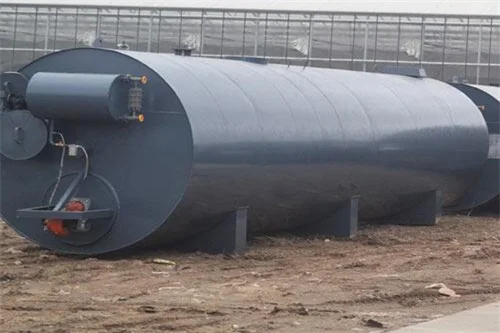

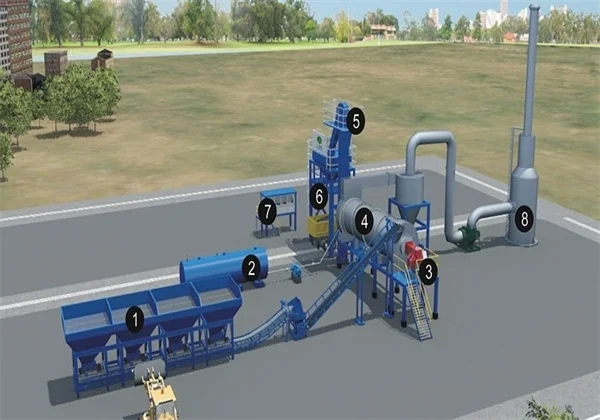

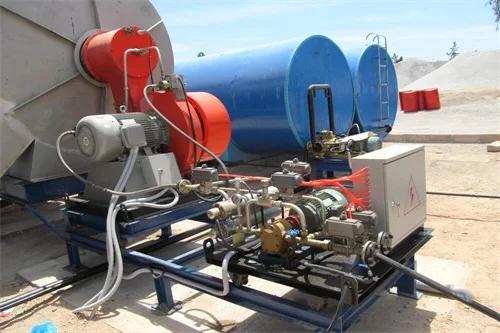

1. Cold aggregate feeder 2. Bitumen tank 3. Burner 4. Drying & mixing drum
5. Hot asphalt elevator 6. Hot asphalt silo 7.Control cabin 8. Water dust filter

PACKING: 4*40HQ containers

	DHB40
Model	DHB40 Asphalt Mixing Plant

Type	Continuous Hot Mix
	40 Tons Per Hour
Capacity	40 Tons Per Hour (Standard Working Condition)
	1200*5000mm
Drying & Mixing Drum	1200*5000mm
	5.5-7.0kg/ton
Fuel Consumption	diesel consumption: 5.5-7.0 kg /ton
	0.5%0.3%
Weighing Precision	hot aggregate: 0.5%; bitumen: 0.3%
	130-165
Hot Asphalt Temperature	130-165(adjustable)
	100mg/Nm
Air Emissions	100mg/Nm
	70db(A)
Working Noise	70db(A)
Operation	Full Auto/Manual Operation
	75kw
Installation Power	75kw
	220V/380V-50Hz ()
Electrical Design	220V/380V-50Hz(adjustable according to local voltage)
	30166
Plant Covering Area	Length:15.6m, width:15m, max. height point: 6m
Documents	Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate
