Pneumatic Filling Machine 50-500ml Semi-auto Pneumatic Liquid Filling with 30L Hopper Liquid Automatic Filling Machine

Product details
Dimension(L*W*H):96*38*37;Single gross weight:25 KG;
Selling Units:Single item;Automatic Grade:Automatic;
Voltage:220V/110V;Single package size:97X39X37 cm;
Application:Beverage,Chemical,Commodity,Food,Medical;Condition:New;
Place of Origin:Shanghai China (Mainland);Type:Filling Machine;
Brand Name:VEVOR;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Material:Glass,Plastic;Packaging Type:Bottles;
Package Type:One Carton For One Set;Warranty:2 Years;
Weight:23;Driven Type:Electric;
Certification:CE ISO;After-sales Service Provided:Online support,Video technical support;

Pneumatic Filling Machine 50-500ml Semi-auto Pneumatic Liquid Filling with 30L Hopper Liquid Automatic Filling Machine



The series of filling machine is a kind of creative and innovative product reference to foreign advanced filling machine technology. It features  the more simple and reasonable structure, high precision, more convenient operation. And it can also applied in many areas like pharmaceutical, cosmetic, food, and special industries. For high viscosity fluid and paste, the kind of machine is the best choice.

All materials are used 304 stainless steel materials, in line with the GMP requirements. Filling volume and speed of filling can be arbitrary regulation and high accuracy.

Princeple:

Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.

materials are used 304 stainless steel materials, in line with the GMP requirements.

Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.




  •  Arbitary regulation for handles and filling speed
  • High precision filling machine
  • Flat bottle labelling machine
  • Upgrade flling device without driping
  • Large-scale stainless materies and chromium structure for preventing rust
  • Reasonable designes and delicate modles
  • Pneumatic parts adopting the imported iol and gas cylinder
  • Very Easy to Operate
  • Wide range of application

Specification:



  • Condition: New
  • Fillable range: 50ml-500ml
  • Air pressure range: 0.4-0.6MPa
  • Filling speed: 5-25bottles per minute
  • High Filling Accuracy: (+/- 1%)
  • Gross weight: 30KG
  • Filling head: Single head
  • Automatic Grade: Semi-Automatic
  • Driven Type:Pneumatic
  • Material: Stainless steel 316

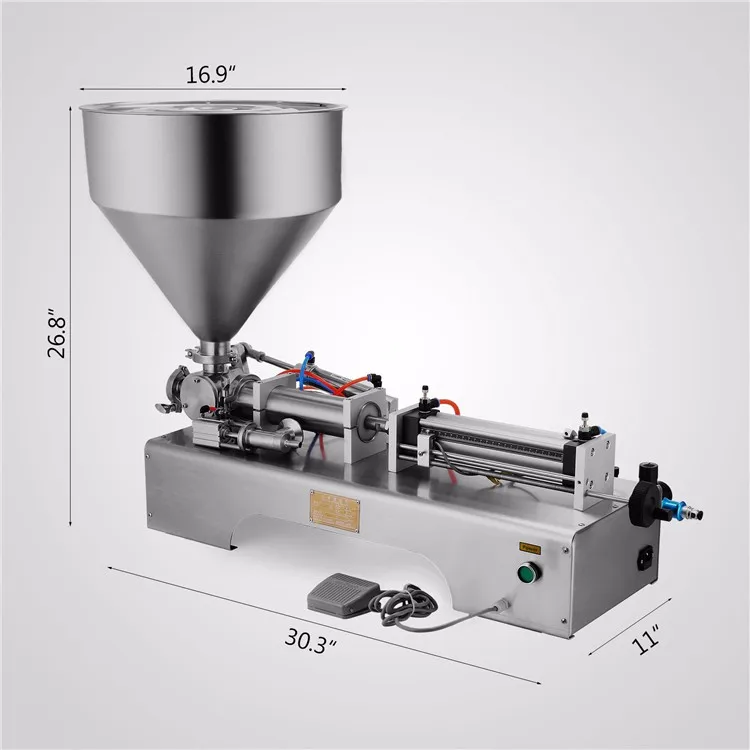

  • Machine Dimension: 38*15*15 Inch ( Approx. 970 X 381  X 381 MM)
  • Packaging Material: standard carton and foam

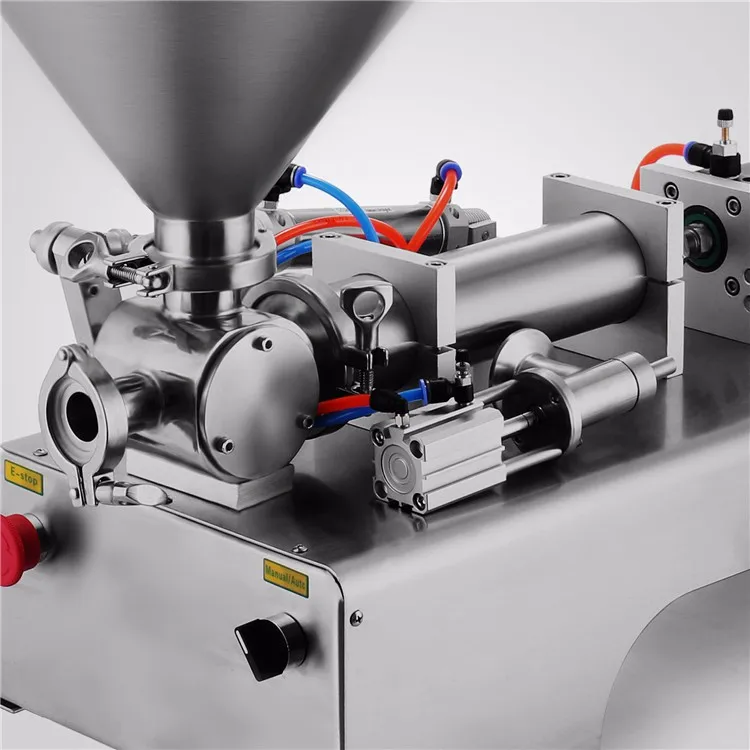

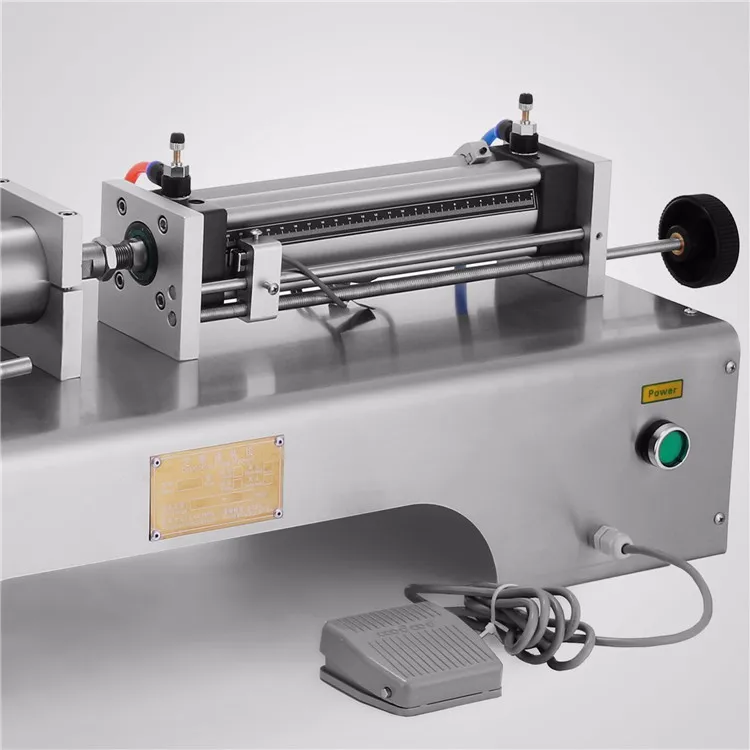

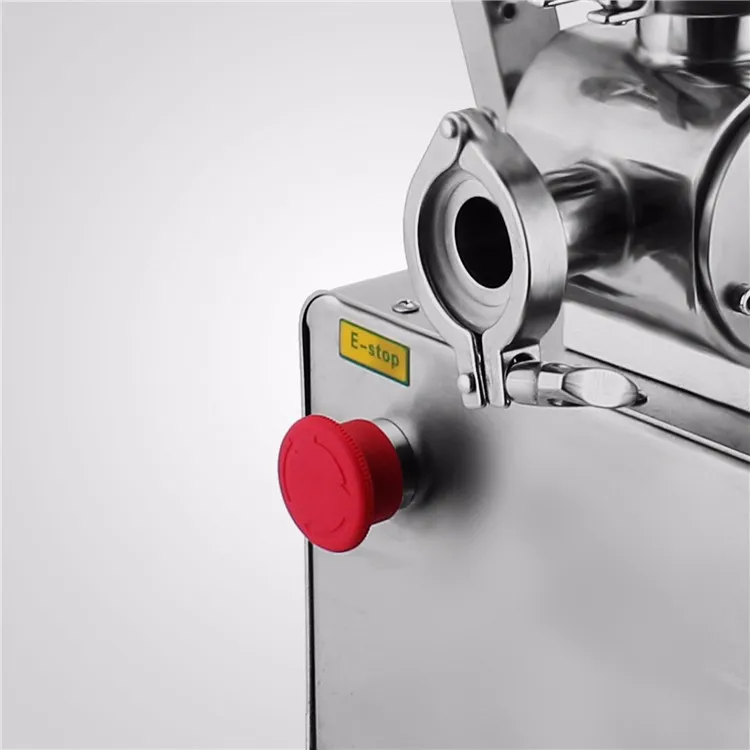

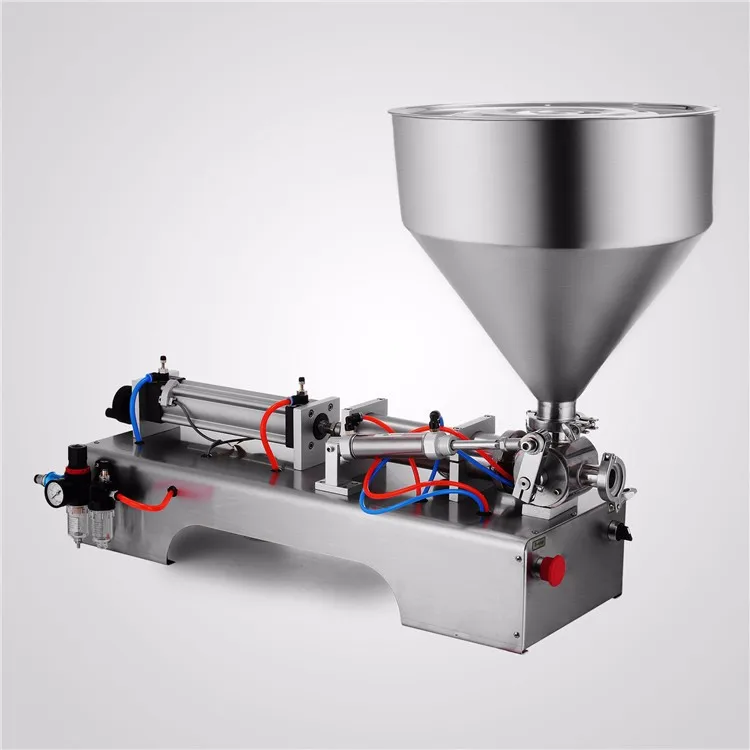

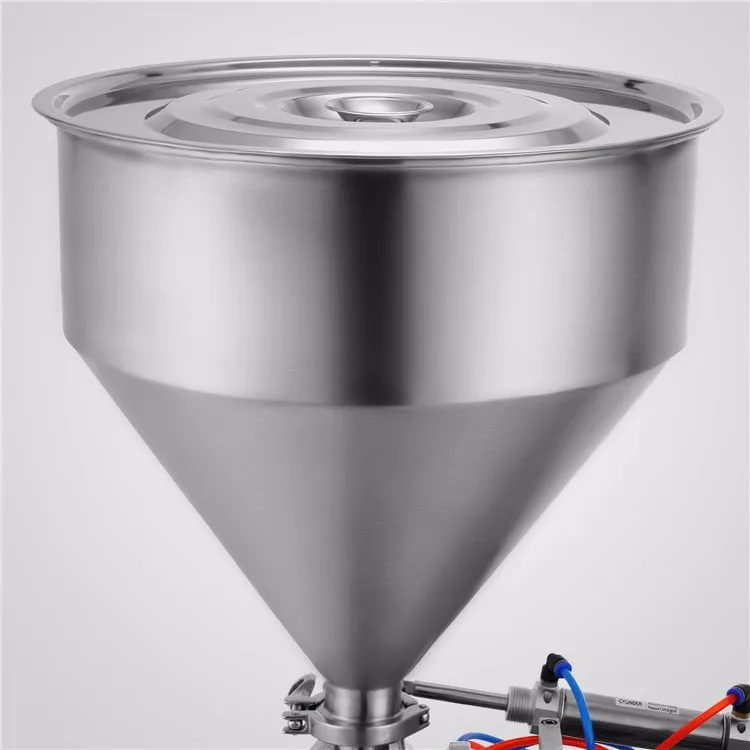

Image For Details:
