Place of Origin: | Guangdong China (Mainland); | Package Type: | Box+Carton.; |
Brand Name: | UYIGAO; | Product name: | Laser Distance Meter 40M; |
Model Number: | 40M; | Size: | 115*50*23mm; |
Single package size: | 20X12.5X10 cm; | Function: | Distance; |
Measurement Range: | 40m; | Selling Units: | Single item; |
OEM/ODM: | Welcome; | Single gross weight: | 0.35 KG; |
Measurement Accuracy: | 2mm; | Type: | Digital Handle Range Finder; |

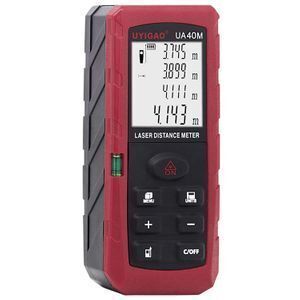

40m Laser distance meter
Specification
Measuring Accuracy :±1.5mm
Measuring Unit:m,ft,in
Laser type:620690nm
Single Measurement time:0.25s
Operating Temperature:0~+40
Storage Temperature:20~+65℃
Batteries:AAA(Alkaline).2x1.5V
Measurements Per Battery Set:>8000
Weight (without Batteries):Approximately 82g
Dimensions (L×W×H):115x50X23mm
Laser auto switch off:30s
Instrument Auto. Switch off:180s
NOTE
Please DO NOT stare into beam at any time when operating this product!
Please avoid kids to use the meter
Features
Laser class: Ⅱ class,<1mW
Laser range:0.05m --40m/131ft
Single measurement
Max min measurement
Continuous measurement
Area / volume / Pythagoras
Plus and minus
Metre /ft/in switch
Measuring reference
Buzzer indicator
History data records:99 Groups
Data clean up
Error message code
Battery indicator
Digital leave(angle measuring)
Package Content:
1×40M Laser Distance Meter
1×User Manual
1×Holding Rope
1×One Years Warranty

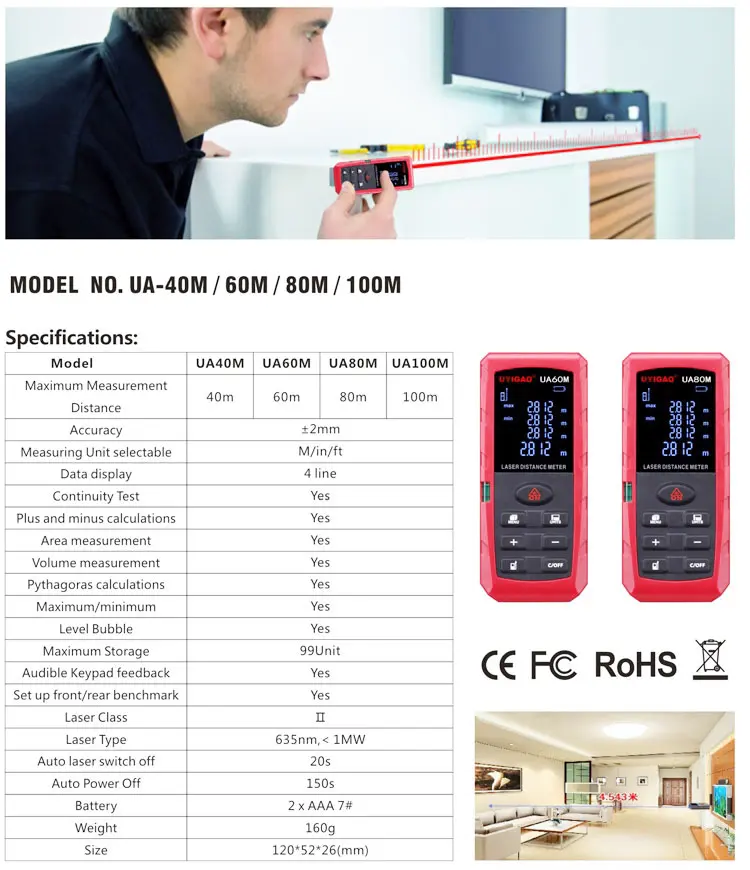

Basic function | range |
Range | 0-40m |
Accuracy (typical value) | ±2mm |
Unit | m/in/ft |
Laser class | class 2 (Ⅱ) |
Laser power | <1mW |
Laser wavelength | 635nm |
Indication of intensity | |
Area | |
Volume | |
Indirect | pythagorea |
Single/continuous measurement | |
Add and subtract measurement | |
Max/Min | |
Multiple lines display | 4 lines |
Date store | 20 sets |
Reference edge | top, middle, bottom, pole |
Backlight | white |
Buzzer function | |
Error report function | |
Battery life | >5000 |
Power display | full, medium, low |
Tripod screw | |
Dustproof/waterproof rate | IP54 |
Store temperature | -20 to 65°C |
Working temperature | -10 to 40°C |
Battery | type AAA 2*1.5V |
Body colors | red+ gray |
Weight | 178g (incl battery) |
Body size | 115*52*33mm |
NOTE: Battery not included.
Related Products:
An Integrated Maker of Measuring Instruments
We are specialized in the development, design, production and sale of various measuring instruments. We always adhere to the targeting of instrument and meter industry elites in China and world, and our products have their own characteristics.
We are committed to optimal instrument high-tech brand promotion in China and world. Our product range includes infrared thermometers, illuminance meters, digital multimeters and AC/DC clamp meters,etc. Our products have been enjoying a high quality reputation since our company's establishment.
Q: Do you have stock?
A: Yes, normally we have stock; if no stock, lead time is 7~15 days.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
If you don't find the exact items of your needs, please reach us for more details.
