ZH-500 Mini Auto Folder Gluer

Product details
Line speed:0~150m/min adjustable;Paperboard:210~500g/m2 paperboard;
Automatic Grade:Automatic;Driven Type:Electric;
Supply Ability:1 Set/Sets per Week;Packaging Type:Bags,Bottles,Case;
Applicable Industries:Printing Shops;Dimension(L*W*H):2600*660*1100(mm);
Warranty:1 Year;Packaging Material:Paper,Wood;
After-sales Service Provided:Engineers available to service machinery overseas;Application:Apparel,Beverage,Machinery & Hardware;
Packaging Detail:WOODEN CASE EACH ZH-500 Mini Auto Folder Gluer;Weight:1100kg;
Brand Name:PRINTYOUNG;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Certification:CE;Type:Gluing Machine;
Payment Terms:L/C,T/T;Voltage:AC200V;
Place of Origin:Zhejiang China (Mainland);Port:SHANGHAI;
Condition:New;



Product Description

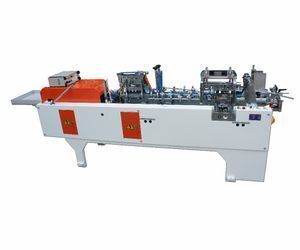

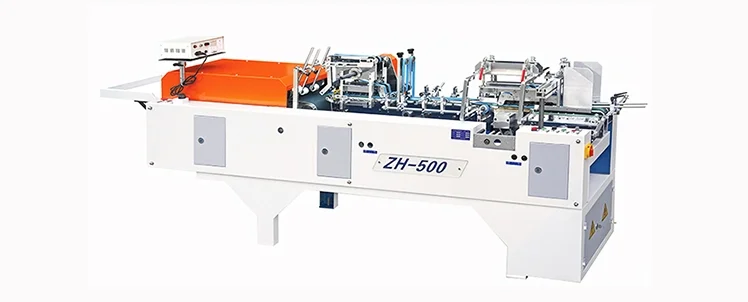

 ZH-500 Mini Auto Folder Gluer



Introduction:

ZH-500 mini automatic folder gluer is the company’s latest economic and flexible type of small folder gluer; the aircraft are small but fully functional, with automatic feeder, automatic gluing, automatic folding, automatic counting, and other functions. It is the required equipment for small and medium-sized printing factories. For normal boxes, the speed is about 30000 pieces per hour.



Features:

1.Line speed: 0~150m/min adjustable

2.Paperboard: 210~500g/m2 paperboard

3.Box forming: Fold from either side

4.Paperboard Feeding:Automatic continuous feeding

5.Glue type:Cold glue

6.Power: Single phase, AC220V, 1.5Kw

7.Weight:1100kg

8.Dimension: 2600×660×1112mm

9.Auto Counting Range:0-999999 No. with batching facility



Technical Data:



AA Max300mm





A Min65mm
BB Max250mm
B Min60mm
CC Max150mm
C Min30mm



Packaging & Shipping





FAQ



1.Q:What is the machine warranty?

   A:one year.



2.Q:Does your machine with CE certificate?

   A:Yes, issued by Italian organization



3.Q:What is the production time while placing order?

   A:About20 days



4.Q:What is the delivery time?

   A:15-30days after get the payment.



5.Q:Can your company handle shipping for customers?

   A:Yes, just give us destination sea port or container yard



6.Q:Does the packing strong?

   A:Yes, all packages are double-checking before delivery



7.Q:How about after-sales service process?

   A: We offer life time A.S.S. Please feel free to contact after-sales department.



8.Q:Are you manufacturer or trading company?

   A: we are manufacturer.



9.Q:Do you have machines in stock?

   A: for standard model, we have a large quantity in stock. For special model, we need

       20-30 days to produce it for you.



10.Q:Do you inspect machines before packing?

     A:Of course we do.we have QC department to debug the machine before packing



11.Q:What’s the payment term?

     A:T/T 30% in advance, the balance paid before delivery. We also accept payment via

         West Union and L/C.



12. Q: Do you accept factory visiting?

      A: We are highly greeting for your visiting.
