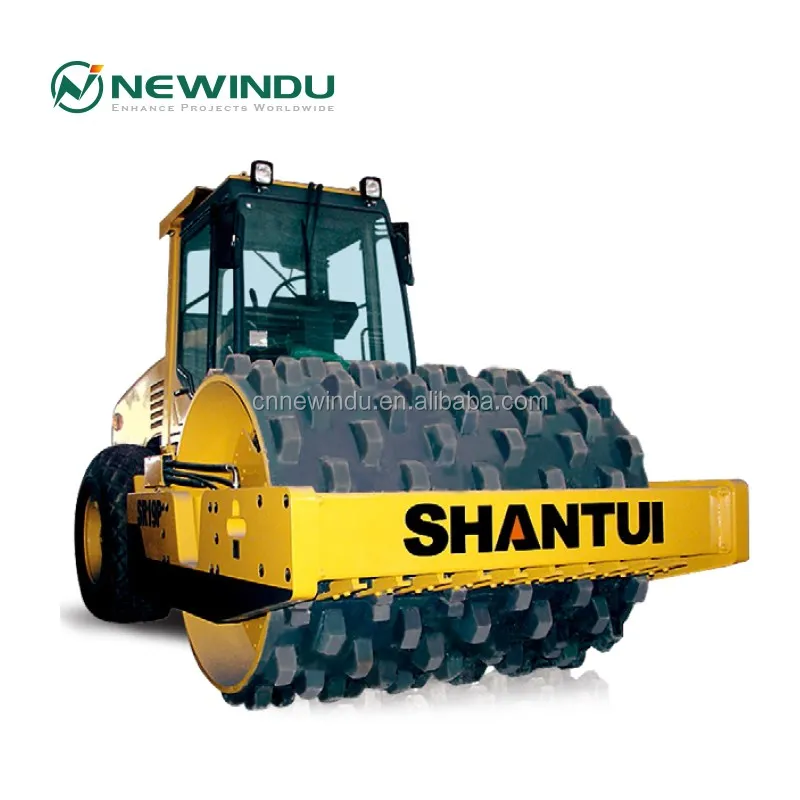

Shantui Full Hydraulic Vibratory Road Roller SR19P to Crush Even Tougher Jobs with Foot Roller

Product details
Place of Origin:Shandong, China (Mainland);Weight:19000kg;
Engine:SC8D175.1G2B1;Operating Weight:19535kg;
Single package size:7360X3200X3640 cm;Selling Units:Single item;
Warranty:1 Year;Vibration frequency:28/32HZ;
Dimension(L*W*H):6092*2450*3232mm;Power(W):132 kW/2500 rpm;
Brand Name:Shantui;Package Preview:https://sc01.alicdn.com/kf/HLB1Vs6MRjDpK1RjSZFrq6y78VXaT.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1a7HRRhTpK1RjSZR0q6zEwXXaj.jpg_640x640.jpg;
Rated power:140Kw;Single gross weight:19,000 KG;
Certification:ISO/CE;Type:Tire Roller;
Certification:ISO CE;Grade Ability:45%;
Place of Origin:Shandong, China (Mainland);Travel Speed:0-13.5km/h;
After-sales Service Provided:Free spare parts,Video technical support,Online support,No after-sales service,Field installation, commissioning and training;Condition:New;






Shantui Full Hydraulic Vibratory Road Roller SR19P to Crush Even Tougher Jobs with Foot Roller



Product Description

 SR19P full-hydraulic single-drum vibratory road roller incorporates double traveling drive system and high-span centrifugal force and the compacting scheme can be customized for different density specifications. This product is applicable for compacting various non-clayed soils and concretes and is an ideal machine for various industrial sites and infrastructure projects.

Technical Parameters



Weights(kg)

18500

Axle load, drum (kg)

11850

Axle load, wheel(kg)

6650

Static linear load (at drum)(N/cm)

554

Minimum turning radius(mm)

5800

Engine Model

Cums 6BT5.9

Rated horsepower(Kw)

132

Fuel capacity(L)

265

Frequency (Hz)

Highest:29
Lowest:33

Nominal amplitude(mm)

High:  1.45 mm
Low:   0.8 mm

Centrifugal force (kN)

Maximum: 310
Minimum:  215

Forward(km/h)

1st 0-5.6    2nd 0-7.1
3rd 0-8.7    4rd 0-13.5

Reverse(km/h)

1st 0-5.6    2nd 0-7.1
3rd 0-8.7    4rd 0-13.5

Maximum climbing ability(°)

45

Drive system

Hydro static

Overall dimensions(mm)

6093*2410*3132



Photos for Reference
