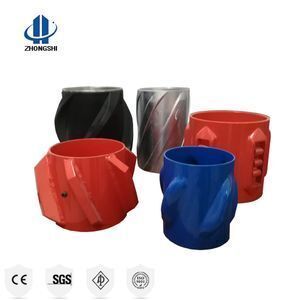

API cementing equipment rigid centralizer casing centralizer price

Supplier: Puyang Zhongshi Group Co., Ltd.
Region: Henan, China
Contact: Ms Betty w
Price: $19.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

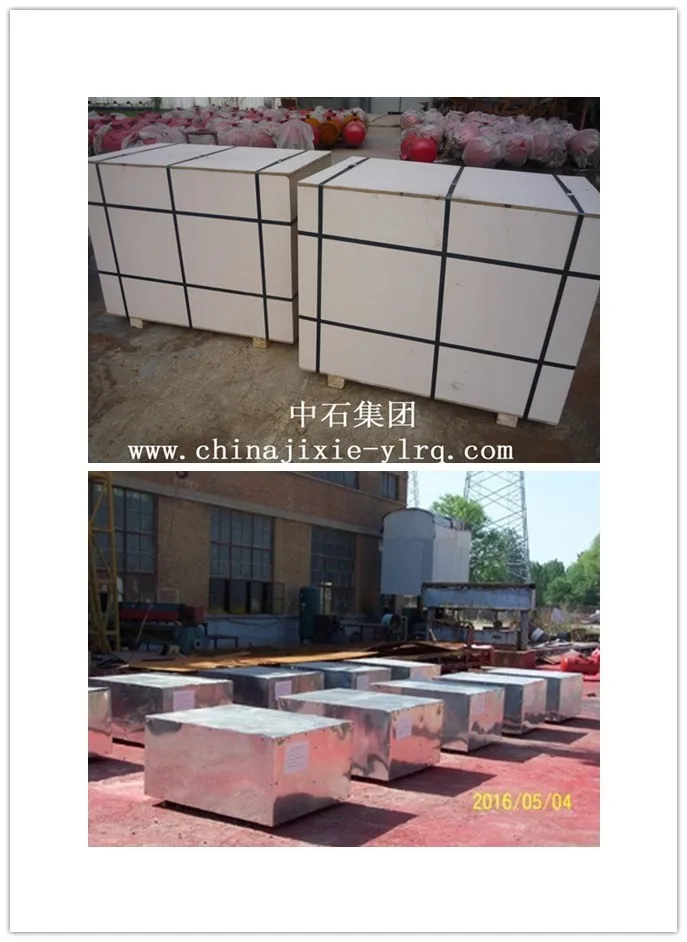

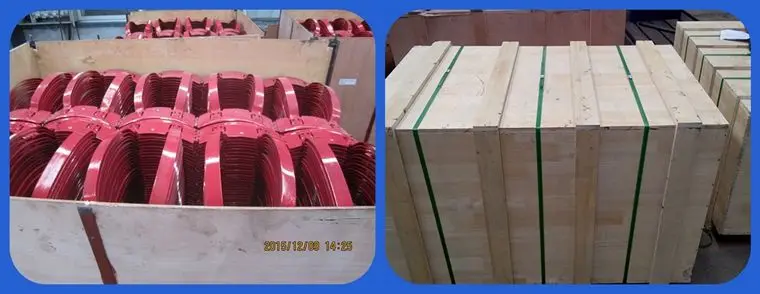

Packaging Detail:	Our packing is iron case or polywood case with Standard Overseas Shipping Packing style.;	Size:	API standard;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Supply Ability:	200 Piece/Pieces per Day Centralizer For Drilling;
Standard:	API-10D;	Use:	Oilfield Downhole Casing Equipment;
Port:	Tianjin, Qingdao ,Ningbo,Shanghai;	Material:	Carbon Steel;
Type:	Casing Centralizer;	Certification:	API ISO;
Processing type:	Forging;	Place of Origin:	Henan China;
Application:	Drilling Cementing Tools;	Product name:	casing centralizer;

Product Description

API cementing equipment rigid centralizer casing centralizer price

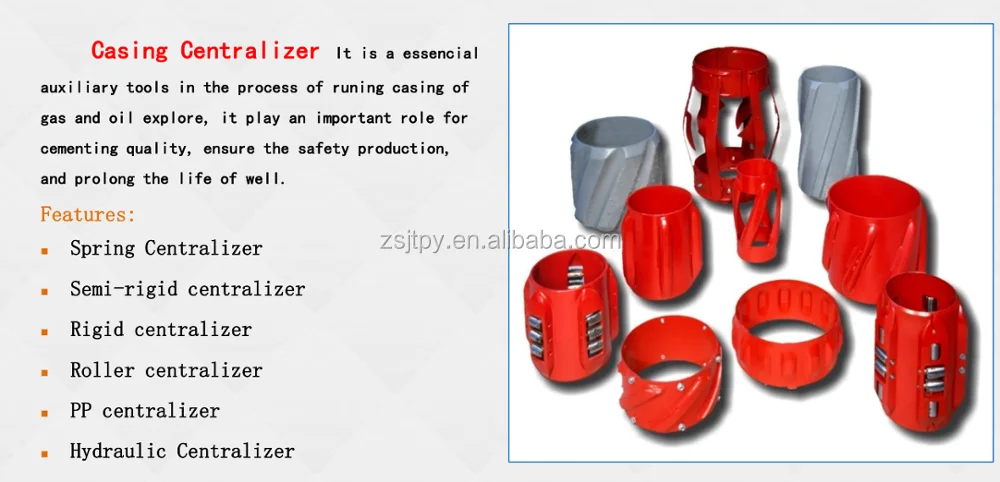

Product classification:Bow-spring centralizer,Rigid roller centralizer,Cast aluminum centralizer

Product overview:

Casing centralizer is one of the necessary conventional casing accessories, upon well operations completion, the rational use of casing centralizer can play the role of:

Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;

Making casing centralizer centered within the well|;

Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;

Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.

The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.

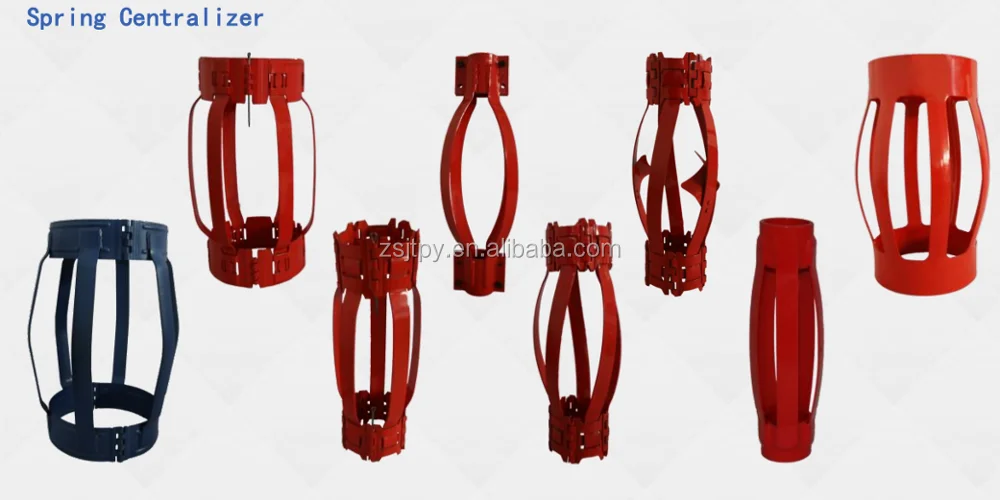

Bow-spring centralizer

1.These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well

2.Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over

3.Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

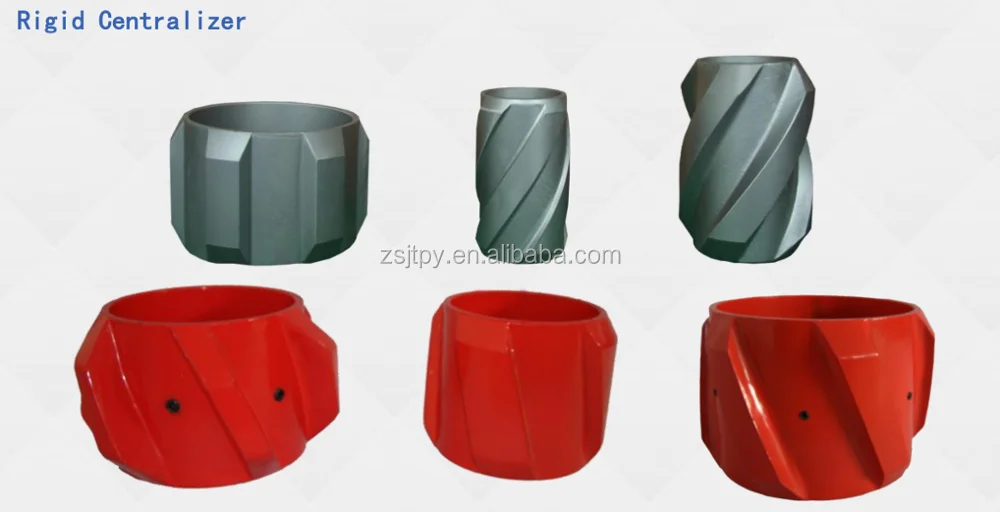

Rigid roller centralizer

Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid roller centralizer that can keep casing from contacting the wellbore wall

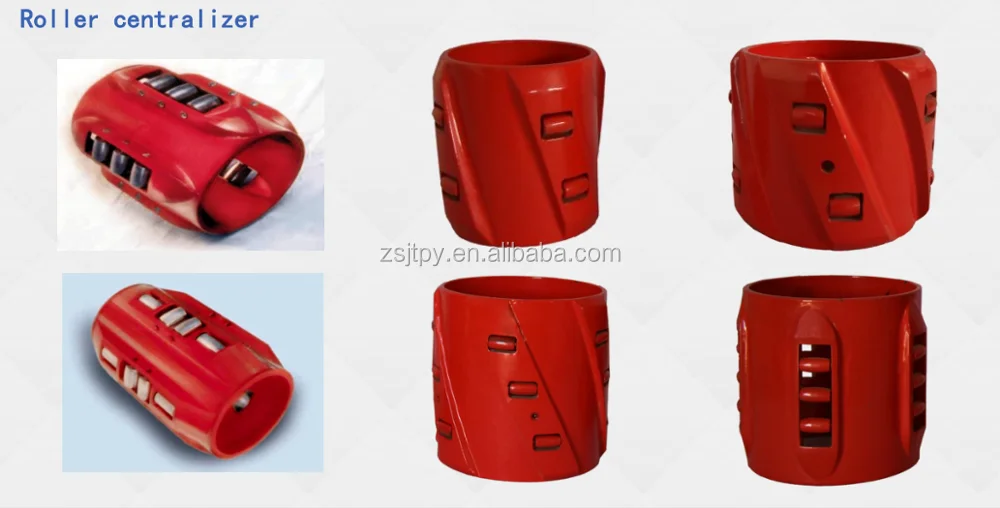

Roller rigid centralizer

which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so the Roller rigid centralizer greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly

Cast aluminum centralizer:

The smooth spiral 360 overlap solid vane design of centralizers provide max wall contact will not damage wellhead equipment, has high impact and shock resistance comand fluid swirl. The 30slope from the body to the height of the vane will eliminate scraping, or digging into the formation.

Casing centralizer technical parameters:

13-3/8"Centralizer Technical parameters(Bore Hole17-1/2")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
339.7	432	342	200	35CrMo	75
9-5/8"Centralizer Technical parameters(Bore Hole12-1/4")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
244.5	305	248	200	35CrMo	70
7"Centralizer Technical parameters(Bore Hole9-1/2")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
177.8	238	182	200	35CrMo	75
7"Centralizer Technical parameters(Bore Hole8-1/2")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
177.8	210	182	200	35CrMo	65
5-1/2"Centralizer Technical parameters(Bore Hole8-1/2")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
139.7	210	142	200	35CrMo	41
4-1/2"Centralizer Technical parameters(Bore Hole6")
Size	OD(mm)	ID(mm)	Lenght(mm)	Material	Flow Area%
114.3	150	116	180	35CrMo	42
