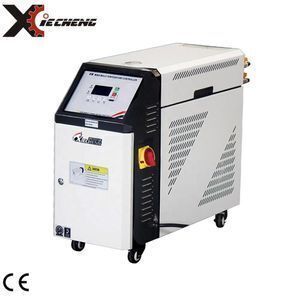

Stainless steel water tank +- 0.1 degree PID control injection water mold temperature controller

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Chau
Price: $1300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Temperature Control Accuracy:	+/- 0.1degree;	Place of Origin:	Guangdong China;
Port:	Jiangmen/Guangzhou/Shenzhen;	Dimension(LWH):	739310643mm;
Power(W):	9000W;	Warranty:	1 year;
Usage:	plastic industry;	Temperature Range:	30~100 degree;
Heating power:	9KW;	Pump power:	0.75kw;
Lifetime:	more than 5 years;	Type:	Water Temperature Machine;
Packaging Detail:	Standard plywood case as usual or customized;	Voltage:	380V/50Hz/3Phase as usual;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Applicable Industries:	Manufacturing Plant;	Weight:	46kg;
Application:	plastic industrial mold heater;	Internal Piping Size:	6';
Heat transfer medium:	water;	Brand Name:	XIECHENG;
Throw of pump:	28m;	Safety setting:	6 protection;
Supply Ability:	500 Set/Sets per Month;	Pump flow:	56 L/min;
Highest temperature:	100°C;	Controller:	microcomputer;
After-sales Service Provided:	Video technical support,Online support;	Certification:	CE;

Stainless steel water tank +- 0.1 degree PID control injection water mold temperature controller

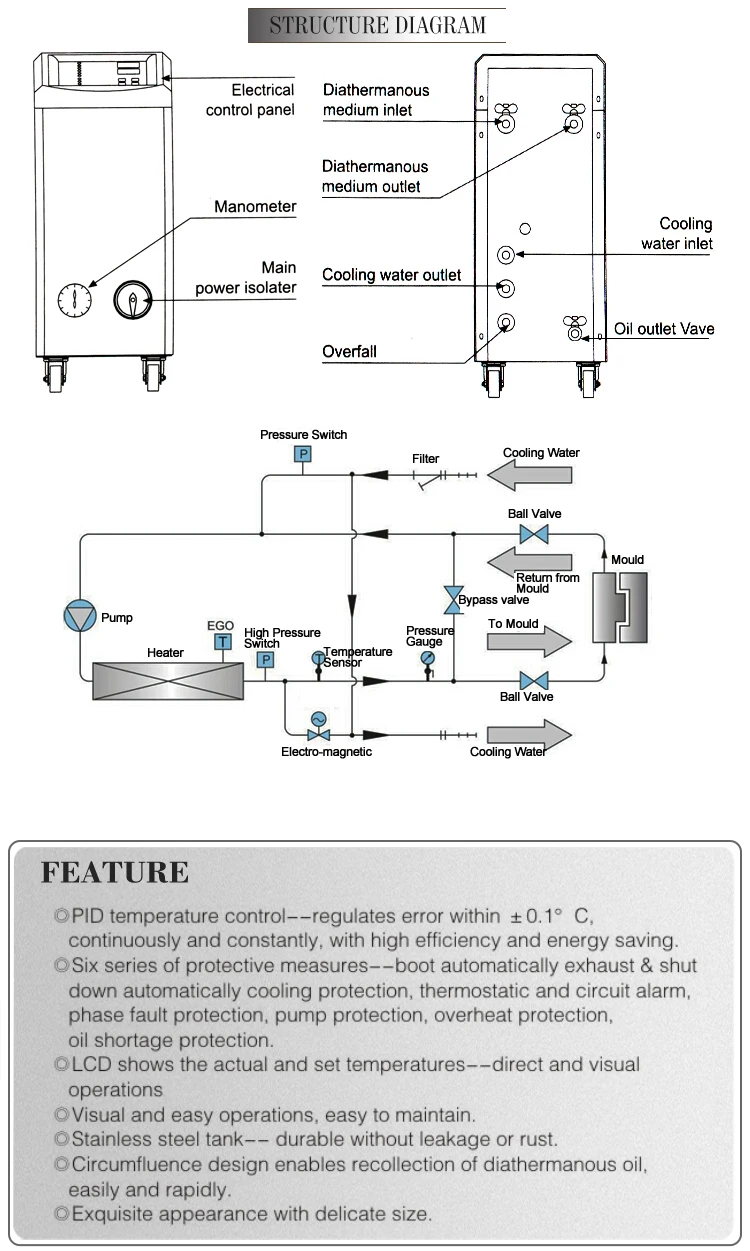

1.PID temperature control – regulates error within + 0.1℃,continuously and constantly, with high efficiency and energy saving.

2.Six series of protective measures – boot automatically exhaust & shut down automatically cooling protection, thermostatic and circuit alarm, phase fault protection, pump protection, overheat protection, oil shortage protection.

3.LCD shows the actual and set temperatures – direct and visual operations.

4.Visual and easy operations, easy to maintain.

5.Stainless steel tank – durable without leakage or rust.

6.Circumfluence design enables recollection of diathermanous oil, easily and rapidly.

7.Exquisite appearance with delicate size

Model	XC- TM9KW-W	XC- TM12KW-W	XC- TM18KW-W	XC- TM24KW-W	XC- TM36KW-W	XC- TM60KW-W
heat transfer medium	water
highest temperature	100⁰C
Pump power(kw)	0.37	0.75	1.5	1.5	2.2	3.75
Pump flow(L/min)	42	56	160	160	315	380
Throw of pump	28	38	27	27	26	35
Heating power	9	12	9*2	12*2	12*3	60
Inlet of medium	*3/8'(6mm)4**	3/8'(6mm)*4	1'*1	1'*1	1.5"*1	1.5"*1
Dimension(mm)	*739310643*	739310643	990520983	990520983	1090520983	13805301083
Net weight(kg)	46	50	65	100	110	135
