High efficiency Automatic carton box making machine / carton box forming machine
-
Supplier: Zhengzhou Hongshi Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms lisa Song -
Price: $23000.00 /set -
Min. Order: 1 set
| Brand Name: | Hongshi; | Packaging Detail: | carton box making machine Packaging: packed in wooden case, or customization Shipping: 15 days after the payment; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Condition: | New; |
| Voltage: | 380V 50HZ; | Dimension(L*W*H): | 3500*1200*1600mm; |
| Weight: | 2000kg; | Usage: | Paper Forming Machine; |
| Product name: | carton box making machine; | weight: | 1800kg; |
| Certification: | ISO9001; | Send paper max width: | 580mm; |
| Paper thickness: | Max thickness:1.5mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Warranty: | 12 Months; | Supply Ability: | 50 Set/Sets per Month carton box making machine; |
| Application: | Products Packed; | Box type: | Corrugated Carton; |
| Box standard: | 50*50--320*420(MM); | Automatic Grade: | Automatic; |
| Place of Origin: | Henan China; | Driven Type: | Electric-Pneumatic; |
| Port: | Qingdao, Shanghai, Guangzhou or other China port; | Raw materials for paper: | 200-600g/m2; |
| Speed: | 60---160pieces/min; | Power(W): | 4KW; |
High efficiency Automatic carton box making machine
Introduction of carton box making machine
Carton Box Making Machine is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.
Advantage:
# Compact structure and strong frame keep the machine reliable and durable with low noise.
# Hard Plastic-glass cover, Safe and visible for user.
# Easy exchange molds to make different products, charging and adjusting time is very short.
# PLC program control the whole line, available to make complicated boxes.
# Automatic collection, stock, and count.

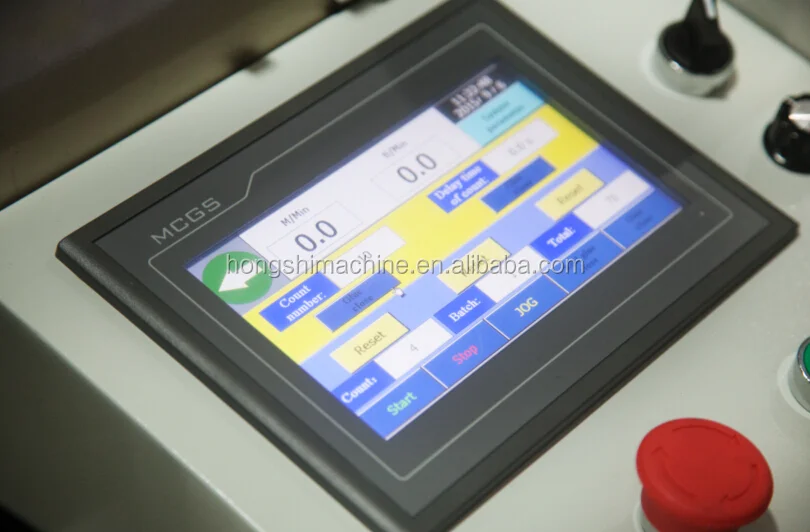

# Human being designed control button and panel, more easy and safe runs by user.
Technical Specification of carton box making machine
Model | ZF800 |
|
Box standard | 50*50--320*420(MM) |
|
Raw materials for paper | 200-600g/m2 |
|
Paper thickness | Max thickness:1.5mm |
|
Speed | 60---160pieces/min |
|
Send paper max width | 580mm | The input voltage |
General motors | 4KW | Three-phase 380V/50HZ |
The weight | 1800KG |
|
The machine size | 3500*1200*1600mm |

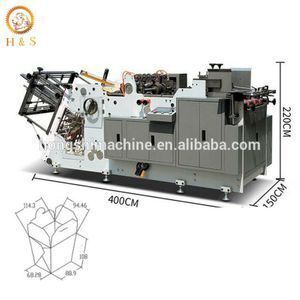

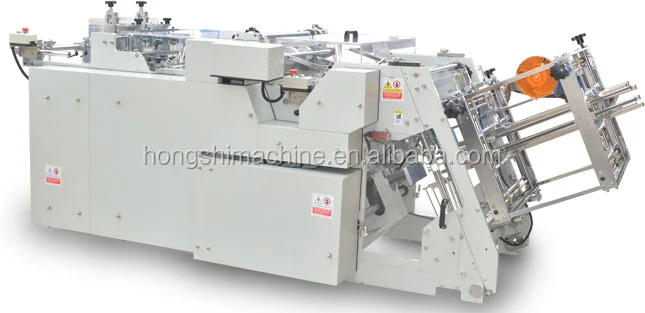

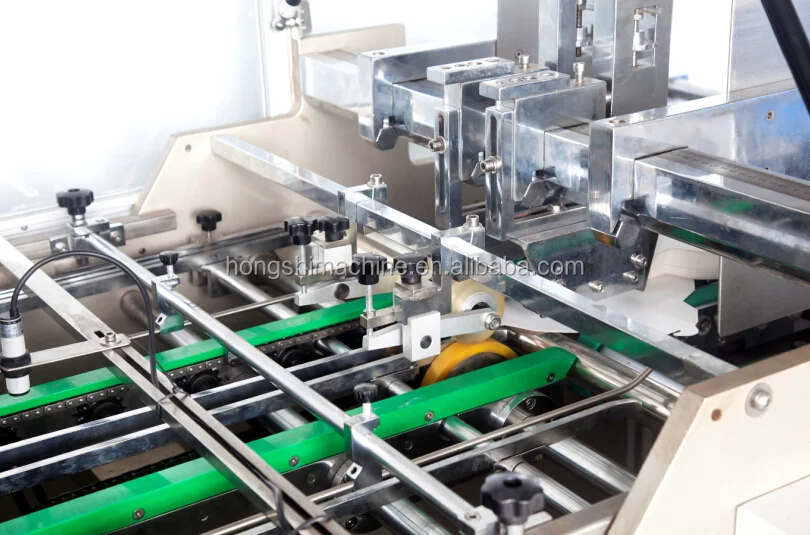

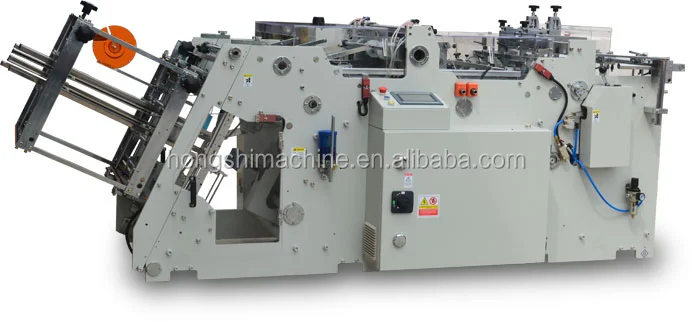

Pictures show of carton box making machine
The finished products
The packing and shipping of carton box making machine
Packaging: packed in wooden case, or customization
Shipping: 10 days after the payment
1.Help you choose the most suitable machine.
2.customize the machine according to your request.
3.give you machine's details and video for help you use the machine more better.
4.Normally the service life of our machines can be 5-8 years.
5.We offer full set of easy-spoiled spare parts and tools for back up.
6.We can send our engineer abroad to training customers to operate the machine.
7.Normally we can resolve any problem online together with our customers.
We are a manufacturer to export and import for Machinery from 1990 to today,and have more than 10 agents office in Nigeria ,Vietnam, Mongolia, Russia, Tanzania, and so on and every month have more than 10 continer export , and your satisfied is our best service , welcome join us.
Frequently Asked Question
1.Q:Are you a factory or trading company?
A:Our factory founded in 1990 ,and our export and import department founded in 2006 .
2.Q:Where's your factory located? How can i visit there?
A:Our factory is located in Zhengzhou city,Henan province,China,about 2 hours by fly from Guangzhou. here have more stock and machine for your test , welcome to vist us!!
3.Q:What's quality of your machinery ?
A:Our machine is international standard ,every machine make be from spare parts,painting ,test ,adjust and packing department ,so all step is be carefull ,and we also can according to your requested to design to make it ,and here have the enginner can go abroad for installed for you .
4.Q:How does your factory do regarding quality control?
A:We have the person check the machine from beginning to end.Our factory has gained BV,Intertek,SGS authentication.
5.Q:What is your payment terms?
A:30%T/T in advance,70% before shipping .or IRREVOCABLE L/C.
6.Q:What is your lead time?
A:With 3-10days after receiving deposit or original L/C.
If you are interested in our carton box making machine , please feel free to contact me.
-
