Certification: | CCC,CE,UL; | Port: | NINGBO ,SHANGHAI; |
Brand Name: | LONGWELL; | Bearing: | Ball Bearing /sleeve bearing; |
motor type: | AC motor , BLDC motor; | Electric Current Type: | AC/DC; |
Speed: | customization available; | Mounting: | Other; |
Place of Origin: | Zhejiang China; | Blade Material: | aluminum; |
Air Volume: | 110-360; | Packaging Detail: | Fan packed in cartons or individual box if required , cartons packed on pallets . pallet size :1.1m x1.1m x0.1m 15000pcs-20000pcs can be loaded in one 20'' container .; |
Voltage: | 110/120/220/230/12/24; | Power: | 20-60; |
After-sales Service Provided: | Overseas third-party support available; | Application: | Over , heater , air purifier , home appliances , floor heating ,; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal; | Fan Diameter: | 30-150mm; |
Supply Ability: | 10000 Piece/Pieces per Month; | fan length: | customization available up to 800mm; |
Fan casing material: | galvanized steel; | lead time: | 15-25days; |
Usage: | MICROWAVE; | Type: | Cross Flow Fan; |
Item name: | fireplace tangential fan; |

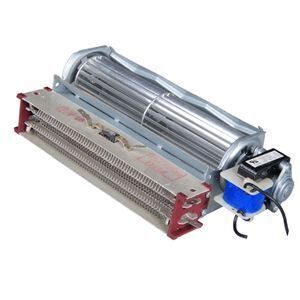

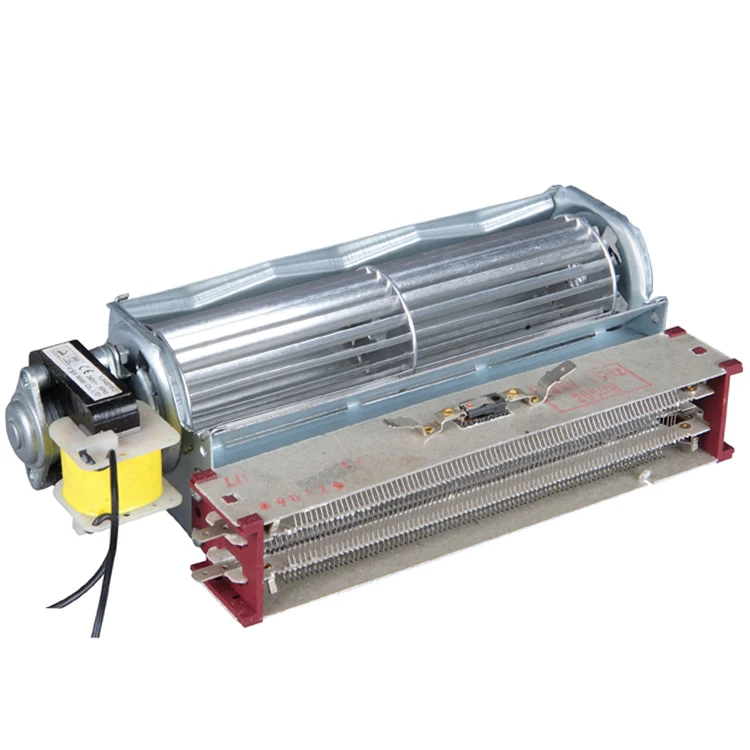

LWCA tangential fan d60x240mm for fireplace
Product Overview
Product Name | LWCA tangential metal cross flow fan |
Diameter | 30mm/40mm/43mm/45mm/50mm/60mm/80/90/100/110/120/150/180/200mm |
Fan Length | 50-1000mm , customization length available |
Motor | AC shaded pole motor , BLDC Motor ,AC capacitor motor |
Voltage input | 115v/230v/12VDC/24VDC/48VDC |
Material | Aluminum |
Bearing | Ball Bearings / Sleeve Bearings |
Color | Aluminum color / black coating |
Bearing | Ball bearing and sleeve bearing available |
Application | Cooler ,heater , floor heating , convector , oven , home appliances |
Advantages | Low noise , long life span , competitive prices , free maintenance |
Related Products
Product Name | Diameter | Material | Wheel Length | Number Of Blades | Shaft Diameter | Usage | |
double tangential fan | Φ30*L | Aluminum Alloy | 100,150,200,250,300 ,400… | 20 | ∅3/∅4/∅6/∅8/∅10/∅12 | Air Curtain /AirConditioner /Air purifier / Heater | |
Φ43*L | 100,135,150,180.200,300,350 … | 20 | |||||
Φ45*L | 100,115,150,180,200,240,300,360,400… | 20 | |||||
Φ50*L | 100,115,150,180,200,240,300,350,400,500… | 20 | |||||
Φ60*L | 80,120,180,240,300,360,400,450,500 … | 22/24 | |||||
Φ65*L | 80,120,180,240,300,360,400,450,500 … | 22 | |||||
Φ71*L | 80,120,180,240,300,360,400,450,500,560,600… | 25 | |||||
Φ81*L | 100, 145,380,391,480,550,630,......800 | 30 | |||||
Φ90*L | 145,380,391,480,550,630,......800 | 35 | |||||
Φ100*L | 250, 360,480,550,630,700,......1000 | 40 | |||||
Φ110*L | 250, 360,480,550,630,700,......1000 | 45 | |||||
Φ120*L | 250,360,480,550,660,680,706,......1000 | 48 | |||||
Φ150*L | 200,360,480,515,580,660,680,810,880,....1050 | 50 | |||||
Φ200*L | 250 360,480,515,580,660,680,810,880,....1050 | 50 | |||||
Customization is available for any length |

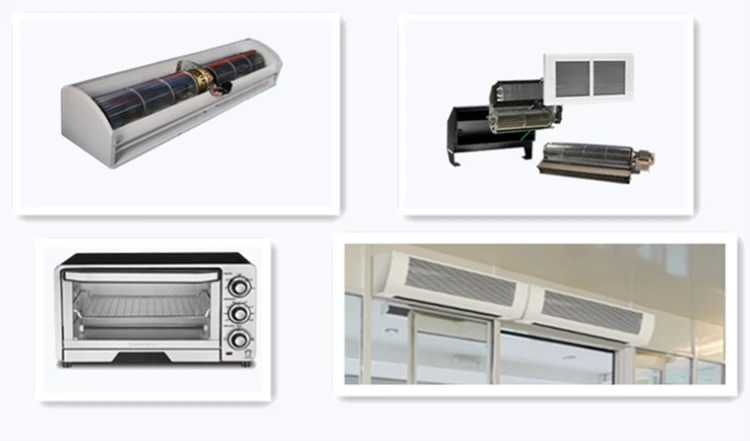

Application
Customization Available
1.Are you a manufacturer ?
Yes, we are . we own over 10 production lines for different products .
2.How is your quality ?
Aboove average and top class quality are your options in our range , The quality is pretty good,and trusted by many customers in overseas .
our quality is abov the average according customer same budget , customer have 1 year warranty , and free after sales technical support in product designed life span .
3. How is your price ?
Our price is very competitive by large scale production contribution .
4.What's your lead time ?
7days -25days , depengs on volume and different items .
5.How is your responding time ?
You will get reply within 2hours online by Wechat ,Whatsapp , Skype , trade manager .
You will get respond within 8hours offline by email .
Mobile is always availble for picking up your calls .
