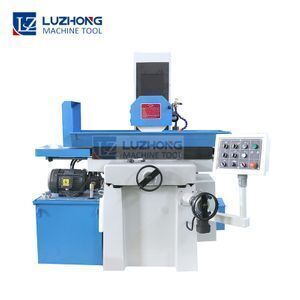

MY1230 Precision Flat Hydraulic Metal Surface Grinder Grinding Machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Surface Grinding Machine;	Supply Ability:	100 Set/Sets per Month MY1230 Precision Flat Hydraulic Metal Surface Grinder Grinding M;
Wheel size:	300x30x76.2mm;	After-sales Service Provided:	Online support,Video technical support;
Power(W):	2.2KW;	Name:	MY1230 Precision Flat Hydraulic Metal Surface Grinder Grinding Machine;
CNC or Not:	Normal;	Package:	plywood case;
Color:	Blue and white;	Grinding wheel size:	355x40x127mm;
Type:	Hydraulic surface grinding machine;	Size of work table:	750x300;
Voltage:	220V/380V;	Table travel:	780x320mm;
Place of Origin:	Shandong China (Mainland);	Weight:	1530KG;
Trade Term:	FOB ,CFR ,CIF;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Port:	Any port in China;	Warranty:	1 Year;
Certification:	CE ISO;	Condition:	New;
Brand Name:	Luzhong Machine;	Max. Grinding Diameter:	400mm;
Max. Grinding Length:	800mm;	Spindle motor:	2.2kw;
Packaging Detail:	The Package of our hydraulic grinding machines is export standard plywood case with iron pallet below ,very strong and durable . The hydraulic grinding machine will be shipped to customers by land freight or sea freight .;	Dimension(LWH):	2000x1640x2020mm;

MY1230 Precision Flat Hydraulic Metal Surface Grinder Grinding Machine

Product Description

The main performance characteristics:

1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.

3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

Application:

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Product main technical parameters:

Specifications						Units	MY1230
workbench	Worktable size (L * W)					mm	750×300
	Max. travel of table					mm	780×320
	Table T slot (slot number x slot width)					mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)					mm	Φ300×30×Φ76.2
	Distance spindle center line to working table					mm	520
	Grinding wheel speed				50HZ	r/min	1450
					60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right) speed					m/min	3-20
	ransverse (front and rear) feed handwheel feed		Continuous (stepless)			mm/min	600
			Intermittent (stepless)			mm/times	0-6
			Handwheel per turn			mm	4.0
			Handwheel per lattice			mm	0.02
	The vertical (up and down) feed handwheel feed			Handwheel per turn		mm	2.0
				Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)					mm/min	360
Hydraulic system	Hydraulic motor					kw	2.2
	working pressure					Mpa	4
	Fuel tank capacity					L	100
	Maximum flow rate					L/min	20
Motor power		Spindle motor				kw	2.2
		Cooling motor				W	40
		Elevator motor				W	120
working accuracy		he process surface of the base level of the parallel degree				mm	300:0.005
		Surface roughness				μm	Ra0.32
Machine weight		Net weight				kg	1400
		Gross weight				kg	1530
External size (L * w * h)						mm	1960×1480×1850
Packing size (L * w * h)						mm	2000×1640×2020

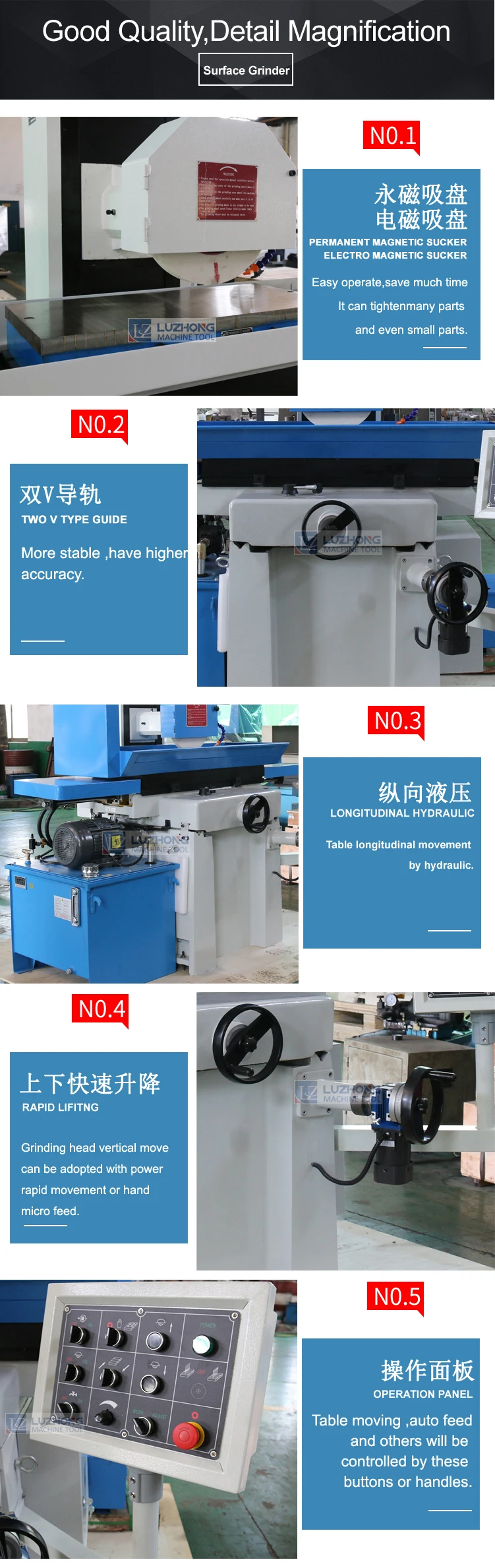

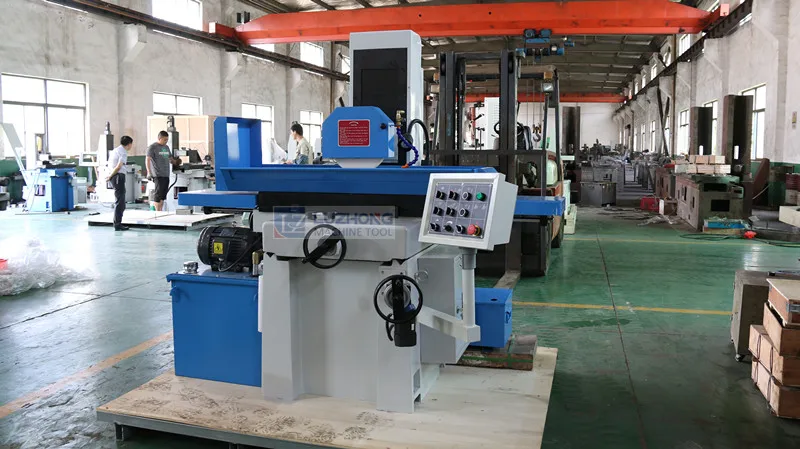

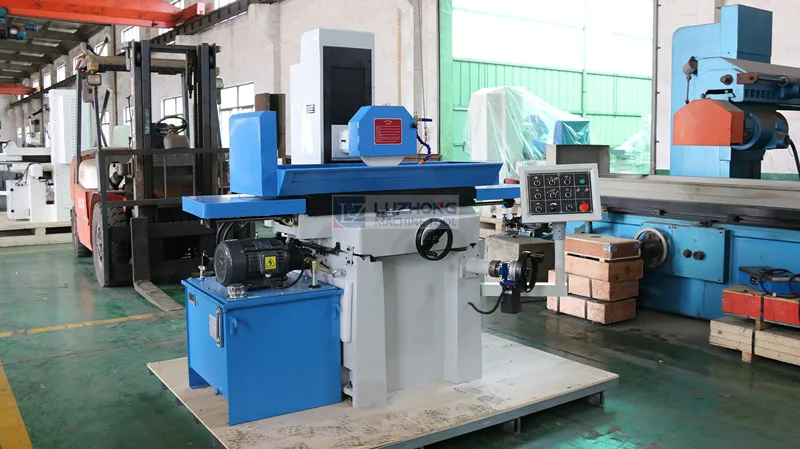

Details Display

Company Profile

Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.

Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .

Certificate

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
