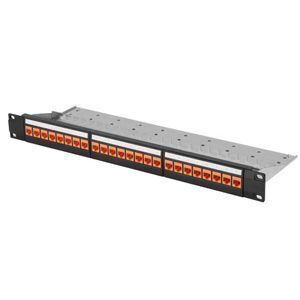

Customized Ce Certificate 24 Port Cat 6 UnShielded UTP Patch Panel with Module

Product Description

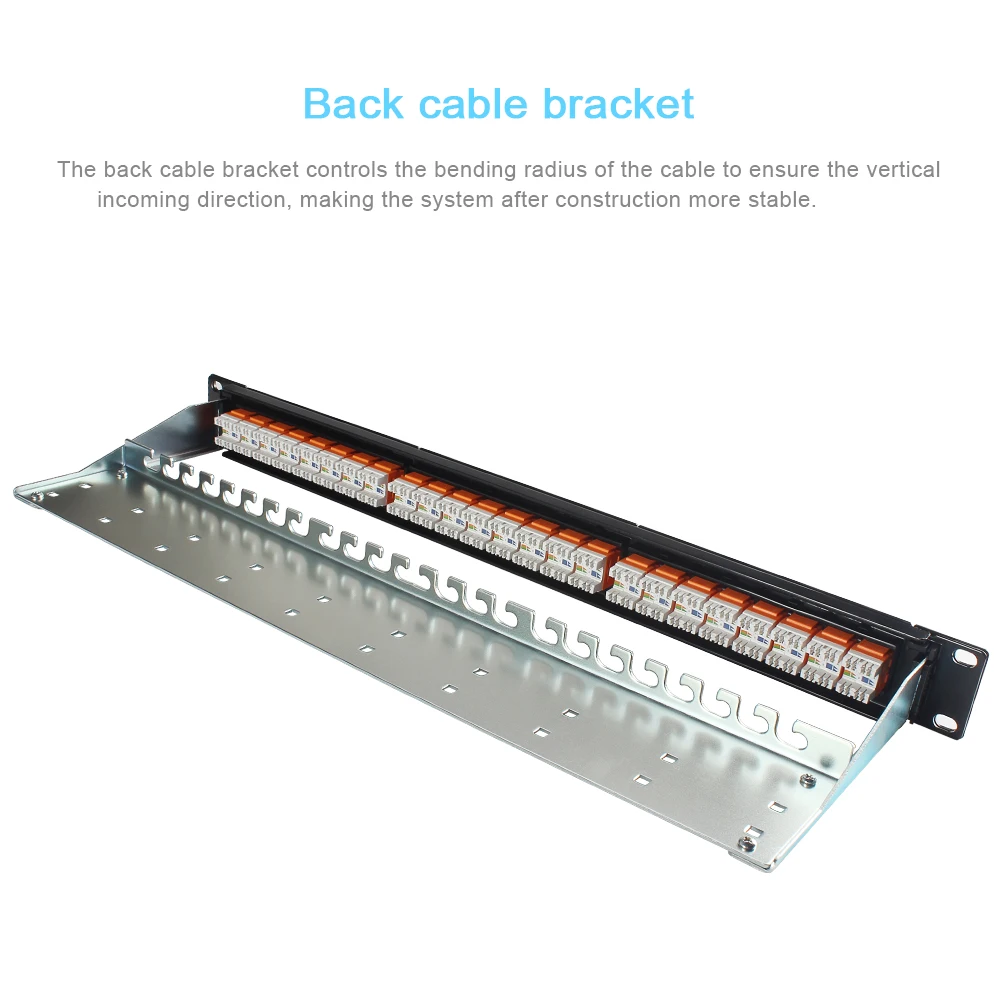

UTP Cat.6 Dual use IDC 24 Port with back bar Patch Panel

ELECTRICAL:
1. VOLTAGE RATING: 125 VAC RMS
2. CURRENT RATING: 1.5 AMP
3. CONTACT RESISTANCE: 20 MILLIOHMS MAX
4. INSULATION RESSISTANCE: 100 MEGOHMS MIN @ 500 VDC
5. DIELECTRIC STRENGTH: 750 VAC RMS 60Hz, 1MIN
6. C5e PERMANENT LINK: CONFORM TO ANSI/TIA/EIA-568 B.2-1

ENVIRONMENTAL:
1. STORAGE: -40° TO+70°
2. OPERATION: -10° TO+60°
MATES WITH MODULARP PULG CONFORMING TO FCC PART 68,SUBPART F.

MECHANICAL:
1. HOUSING MATERIAL: PBT+15%GF UL94V

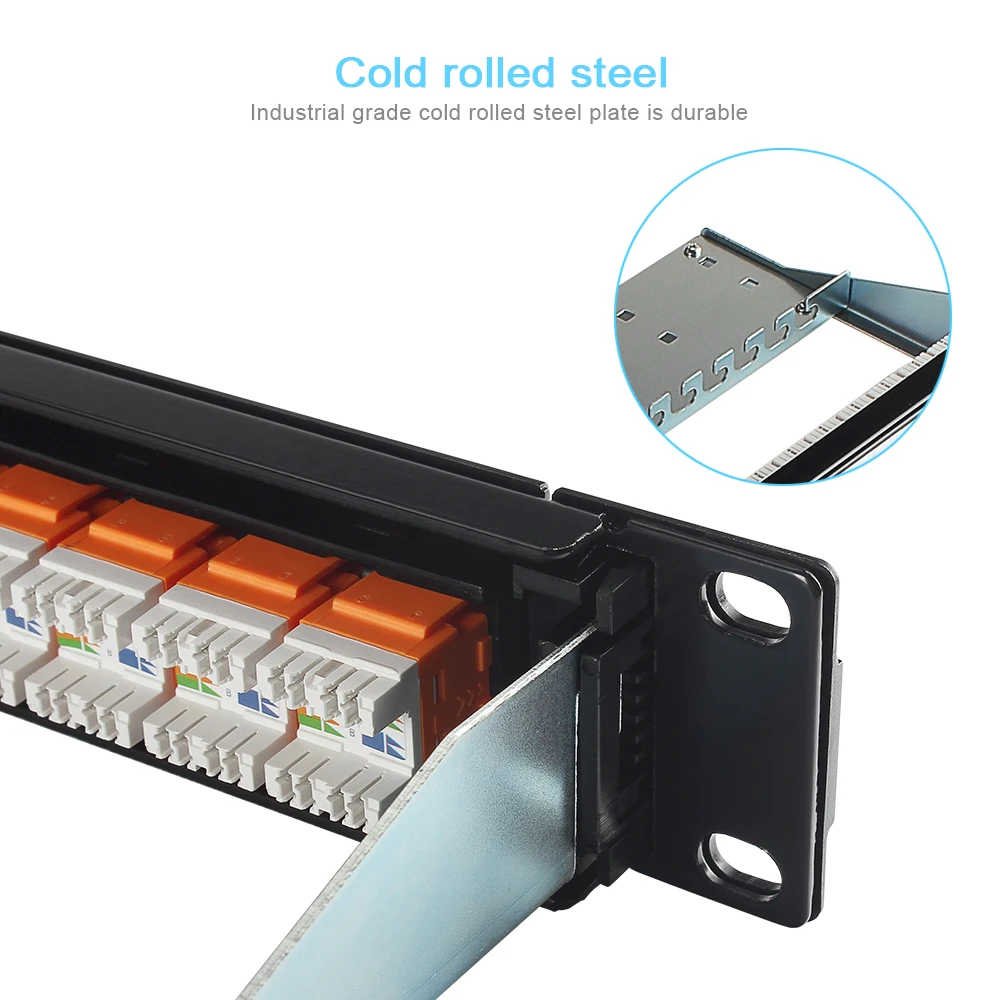

2. PANEL FRAME: S45C POWDER COATING IN BLACK COLOR

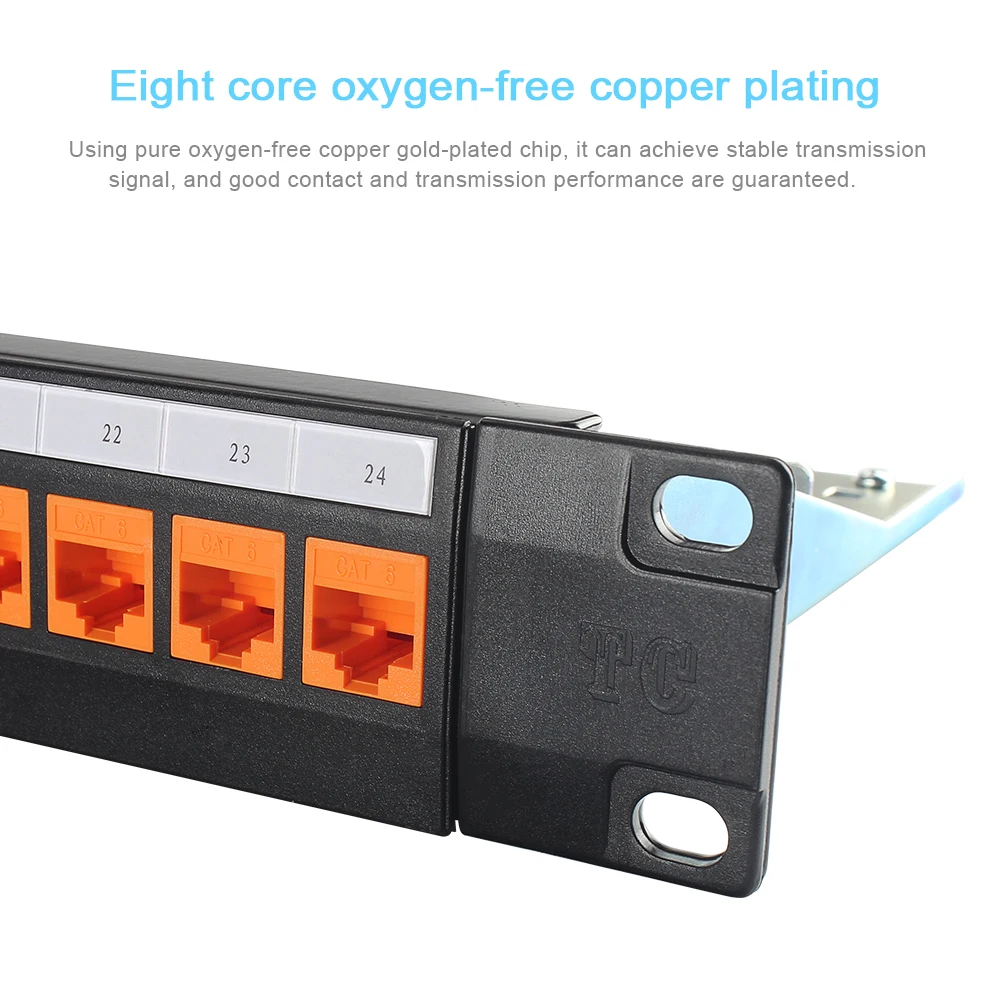

3. ICD MATERIAL: PC UL94V-0. CONTACT: PHOSPHOR BRONZE. TIN PLATING
4. RJ45 JAKE LIFE: 750 CYCLES MIN
5. IDC LIFE: 200TIMES MIN
6. WIRE: AWG 22-24
7. TIA CAT 6 PERM. LINK TEST: WORST PAIR NEXT MARGIN≥3.0dB
8. RETENTIVENESS OF INSERTION STRUCTURE: 50N 60±5s
