ZH-880G Automatic Folder Gluer/Pasting box machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Paperboard:	210-600gsm paperboard;
Packaging Type:	Bags,Bottles,Case;	Driven Type:	Electric;
Model Number:	ZH-880G;	Weight:	2000kg;
Port:	SHANGHAI;	Dimension(LWH):	85009001300mm;
Delivery Detail:	Shipped in 30 days after payment;	Type:	Gluing Machine;
Automatic Grade:	Automatic;	Supply Ability:	100 Set/Sets per Year;
Packaging Detail:	WOODEN CASE each ZH-880G Automatic Folder Gluer/Pasting box machine;	Voltage:	220V;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	Apparel,Beverage,Machinery & Hardware;
Packaging Material:	Paper,Wood;	Power:	3.7Kw;
Brand Name:	PRINTYOUNG;	Condition:	New;
Line speed:	0-180m/min adjustable;	Certification:	CE;

Product Description

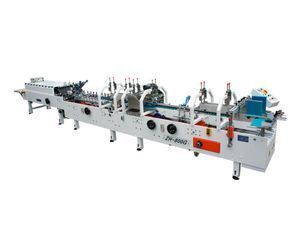

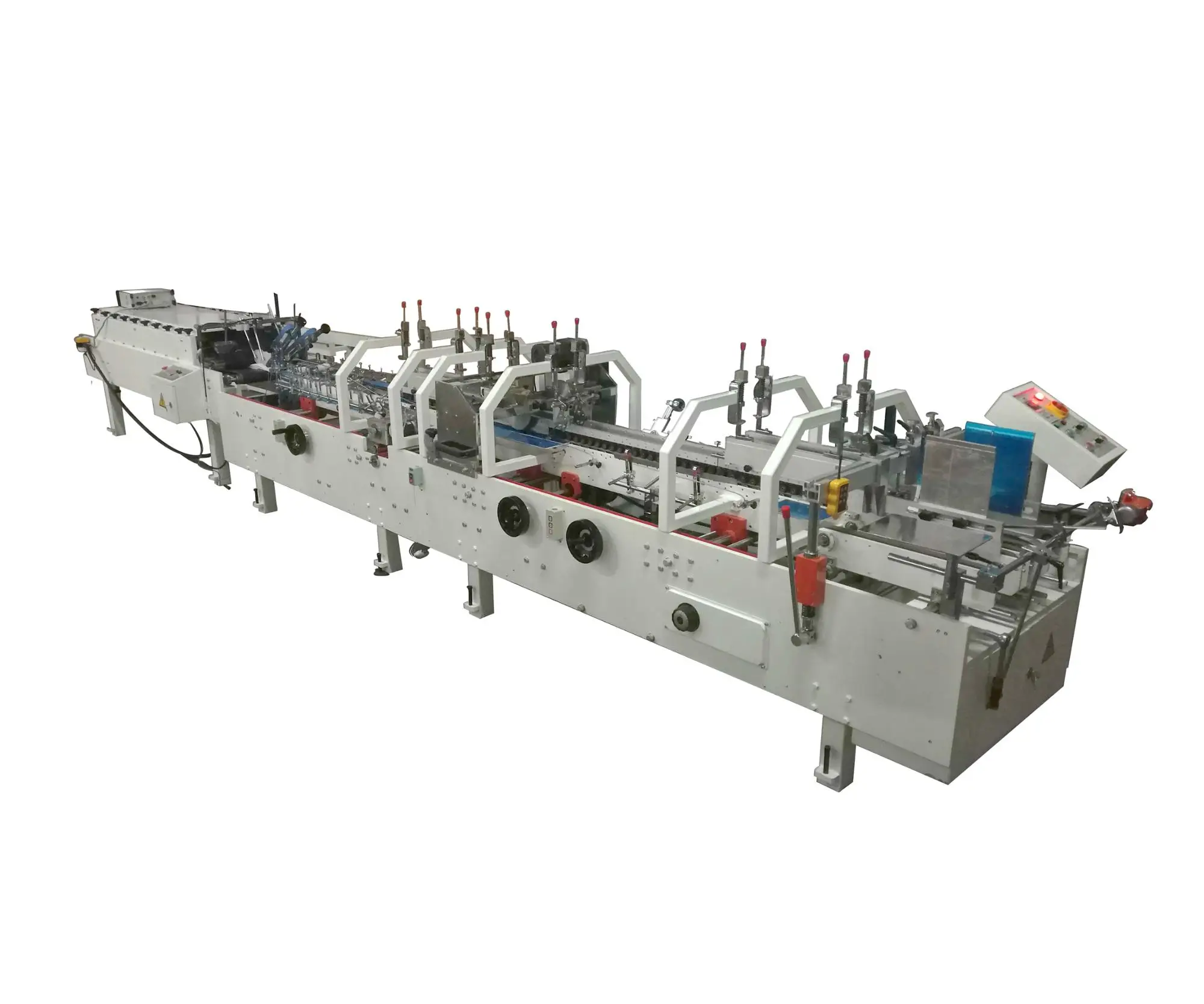

ZH-880G Automatic Folder Gluer/Pasting box machine

ZH-880G Automatic Folder Gluer/Pasting box machine is the most competitive folder gluer with crash lock bottom through our company independent research. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and lower price. Compared to older generation folder gluer, our machines simplify the complicated construction, reduce the difficulty of test run and decrease the machine's cost. Especially for the current packaging and printing industry, it brings new hope to the weak point of folder gluer industry: shorter delivery time, constricted function, more competitive price. It is ideal equipment in printing industry.

Folder Gluer/Pasting box machine is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box etc.

Features:

1.Line speed: 0~220m/min adjustable

2.Paperboard: 210~600g/m2 paperboard

3.Box forming:Either side folds, either sides pre-fold, and crash lock bottom

4.Paper board feeding:Continuous automatic

5.Way of folding: First, second and fourth lines fold 180°, third line fold 135°

6.Glue type: Cold glue

7.Power: 3.7Kw, AC220V, Single phase

8.Weight: 2000kg

9.Dimension: 8500×900×1300mm

10.The counting range: 0~999999(full-automatic)

Ten Functions:

Auto feeding, Lower gluing, Double-side grinding, Double-side gluing, Four-side folding, Crash lock bottom, Upper gluing, Folding, Wireless remote controller, Auto counting.

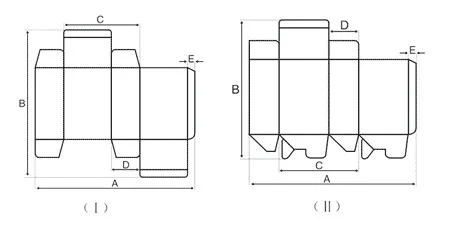

Model	Box type	(A Max)	(A Min)	(B Max)	(B Min)	(C Max)	(C Min)	(D Max)	(E Min)
ZH-800G	Straight line box(I)	560	106	500	65	270	50	7	6
	Pre-fold box(I)	560	180	500	65	270	90	10	6
	Crash lock bottom box(II)	560	160	500	65	270	80	40	6
ZH-880G	Straight line box(I)	660	110	500	65	320	50	7	6
	Pre-fold box(I)	660	180	500	65	320	90	10	6
	Crash lock bottom box(II)	660	160	500	65	320	80	50	6
ZH-1000G	Straight line box(I)	760	130	600	80	370	60	10	8
	Pre-fold box(I)	760	180	600	80	370	90	15	8
	Crash lock bottom box (II)	760	180	600	80	370	90	60	8
