High quality electric motors 3-25KW power IP66 water proof for all Electric vehicle and 3wheel tricycles 4wheel ejeepney

Product details
Port:Ningbo;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Power:3-25KW;Speed(RPM):6800;
Voltage:72V;Cype of cooling:wind or water cold;
Type:Permanent Magnet Synchronous;Packaging Detail:foam with carton, then by pallets.;
Supply Ability:5000 Set/Sets per Week;Voltage:48/60/72V/96V/144V/330V;

AC induction motor3/5/7.5KW from 48V, 60V to 72V, 96V

AC induction 96/108/144V 10KW/15KW/20KW/25KW motor even more bigger with water cooling on query.

PMSM new generation Synchronous motor 4/4.5/5/7.5KW from 48V to 144V.



The main popular models detailed specs as below:



AC induction motor,

Rated power: 5KW

Max power: 10KW

Support vol.: 48V/60V/72V

Rated speed: 3000rpm

Max speed: 6800rpm

Rated current: 130A

Waterproof: IP66

Ambient temperature: -15 degrees to 55 degrees

Cooling method: wind natural cooling

Connection mode: 18teeth internal spline with 140*140mm square flange

-------------------------------------------------------------------------------------

New Generation PMSM synchronous motor,

Rated power: 4KW/5KW

Max power: 8KW/10.2KW

Support vol.: 48V/60V/72V

Rated speed: 3000rpm

Max speed: 6500rpm

Rated current: 90A/120A

Waterproof: IP66

Ambient temperature: -15 degrees to 55 degrees

Cooling method: wind natural cooling

Connection mode: 18teeth internal spline with 140*140mm square flange

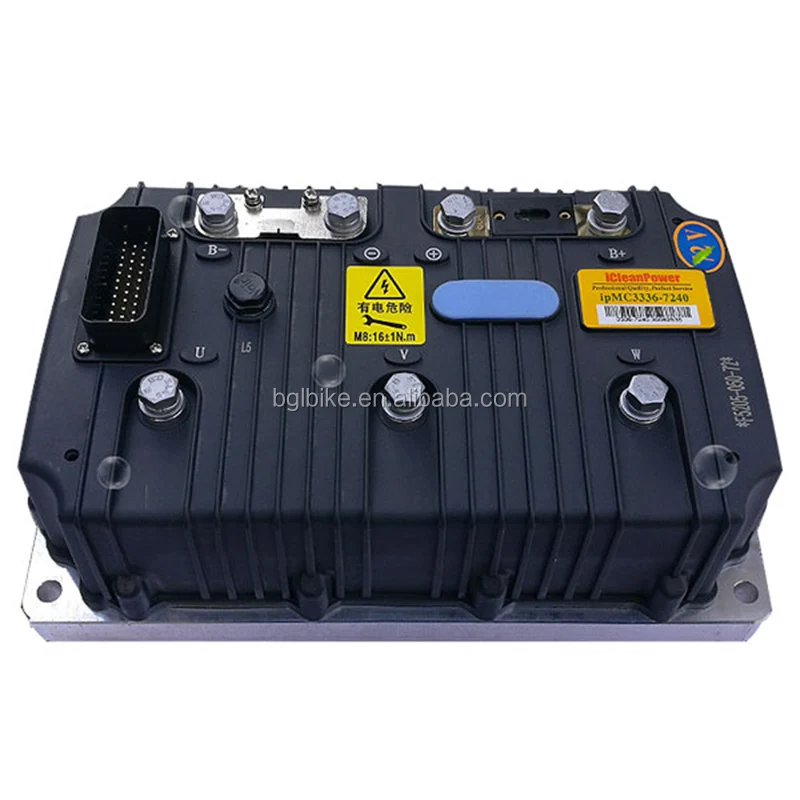

Always matched with controller, transaxle, accelerator/throttle a full set, other model and specs need to be discussed.





AC induction motor,

Rated power: 3KW

Max power: 6KW

Support vol.: 48V/60V

Rated speed: 3000rpm

Max speed: 6800rpm

Rated current: 85A

Waterproof: IP66

Ambient temperature: -15 degrees to 55 degrees

Cooling method: wind natural cooling

Connection mode: 18teeth internal spline with 140*140mm square flange



----------------------------------------------------------------------------------------------------------------------------------

AC induction motor,

Rated power: 7.5KW

Max power: 15KW

Support vol.: 72V/96V

Rated speed: 3000rpm

Max speed: 6800rpm

Rated current: 150A

Waterproof: IP66

Ambient temperature: -15 degrees to 55 degrees

Cooling method: wind natural cooling

Connection mode: 18teeth internal spline with 140*140mm square flange or 24teeth internal spline with 180mm round flange
