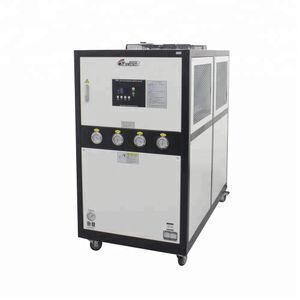

XieCheng CE standard 10HP Plastic processing Industrial Air Cooled Water Chiller

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Chau
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Guangdong China;	Evaporator Type:	Shell-and Tube Evaporator;
Applicable Industries:	Manufacturing Plant;	Condition:	NEW;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Voltage:	380V/50HZ/3PHASE as usual;
Packaging Detail:	Standard wooden case as usual;	Pump power:	1.5KW/2HP;
Certification:	CE;	Port:	Jiangmen/Guangzhou/Shenzhen;
Type:	Air-Cooled;	Water Tank Capacity:	70 Liter;
Pump distance:	15 m;	Compressor power:	7.5KW/10HP;
Supply Ability:	500 Set/Sets per Month;	Refrigerant:	R22/R407c/R134a/R410A;
Dimension(LWH):	15508301508mm;	Condenser Type:	Finned Copper Tube+Low Noise Outer Rotor Fan;
Pump flow rate:	360 L/min;	After-sales Service Provided:	Video technical support,Online support;
Weight:	350KG;	Warranty:	1 year;
Brand Name:	XIECHENG;	Cooling capacity:	26714Kcal/h;
Cooling water flow:	4.42m3/h;

XieCheng CE standard 10HP Plastic processing Industrial Air Cooled Water Chiller

The water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding

manufacturing.

1.Famous brand new compressors ,high efficient shell condensers and evaporators – excellent cooling, quiet with low elections consumption.

2.P.I.D.Microprocessor control – easy to operate, accurately maintains temperature range from 3℃ to 50℃.

3.Special open type reservoir tank with stainless steel – rays to clean and maintain.

4.Well designed and reasonable Pipelines-ensures power supply and saves energy.

5.Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system – Safe and durable.

6.Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.

7.Single, double or quadruple compressors combination available – economical and efficient.

8.Industrial designed – elegant and economical with friendly human – machine connections.

Industrial Chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating ,medical chemistry, ultrasonic cooling and printing business, etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. Xiecheng Industrial Chillers are with simple operation, reasonable design and superior quality with more than one hundred different models, which are the best choice for modern industries.

Regarding to high power industrial chiller, screw type chiller is available.

Screw type chiller adopts screw compressor with, high efficiency, low noise, durable service, reliable operation.

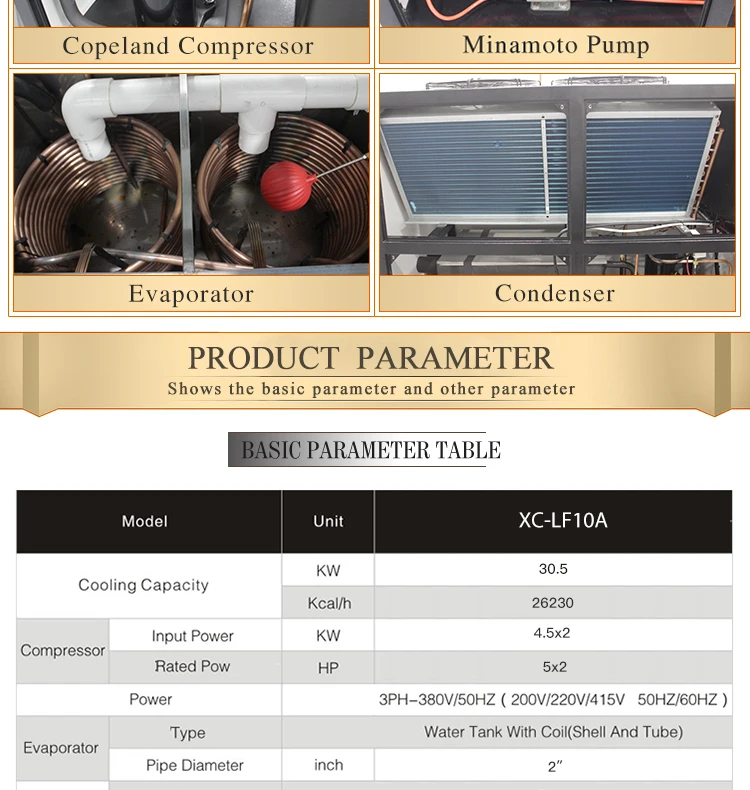

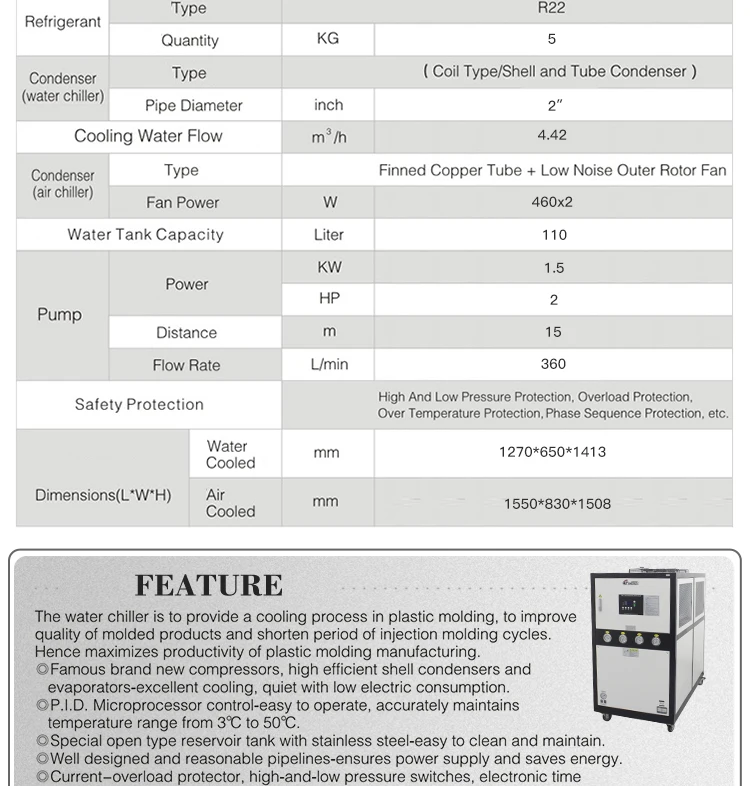

Model	UNIT	XC-LF5A	XC-LF6A	XC-LF8A	XC-LF10A
Refrigerating capacity	kw	12.9	15.22	23.8	30.5
Refrigerating capacity	Kcal/h	11094	13091	20468	26230
Compressor	Input power(kw)	4.66	5.2	3*2	*4.52**
Compressor	Rated power(Hp)	5	6	4*2	*52**
Evaporator	Type	pipe coil evaporator		shell evaporator
Evaporator	Pipe diameter(inch)	1"		2"
Refrigerant	Type	R407/134A
Refrigerant	filling Quantity(kg)	2	2.5	4	5
Cooling flow(m³/h)		2.22	2.6	3.95	4.42
Air cooled condenser	Type	Finned condenser
Air cooled condenser	Fan power(kw)	135		420
Water tank capacity(L)		70		125
Pump	power(HP)	0.37	0.75
Pump	flow(L/min)	40	60	100
Dimension(mm)		13805301083	13805301083	16508301584	*16508301584*
Operating Weight(kg)		175	180	310	450
