Fluxgate Magnetic Sensors and High-Precision Interface

Product details
Bandwidth:DC~1KHz(0.3dB);Number of axis:3;
Brand Name:Smagall;Time domain noise:less than 0.1nT RMS 10 times per second;
Output voltage:±10V;Packaging Detail:one piece in one case;
Measuring range:±70uT-±250uT;Linearity:Less than 0.01% FS;
Power consumption:Less than 0.4W;Sensitivity:7-25uT/V;
Payment Terms:L/C;Model Number:HSMS;
Place of Origin:Sichuan China;Supply Ability:100 Piece/Pieces per Month;
Port:Tianjin, Shanghai, Dalian Port and any other port as customer request;Orthogonality:Less than ±0.2°;
Power:±13V~±17V;

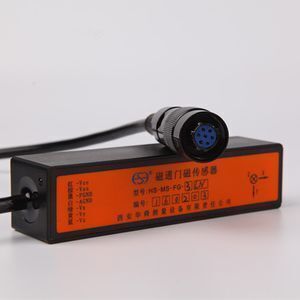

Low cost band pass geological survey three-axis fluxgate gradient sensor

      The fluxgate sensor is to measure the value of magnetic field with non linear relationship

between magnetic flux density of the core of high conductivity magnet stimulated by alternating magnetic field and the measured magnetic field.

Model:  HS-MS-FG3S-70

                            HS-MS-FG3S-100
                     HS-MS-FG3S-200
                     HS-MS-FG3S-250

       It is very applicable to vector measurement of weak magnetic field and high resolution

measurement of magnetic field, such as:

  •  geomagnetic measurement
  •  material nondestructive inspection
  •  space magnetic measurement
  •  time domain electromagnetic measurement
  •  magnetic telluric measurement
Features:
  • High sensitivity
  • Wide band
  • Good linearity
  • High resolution
  • Small size
  • Light weight
Specifications

Number of axis

3

Measuring range

±70µT~±100µT

Bandwidth

DC~1Hz

Linearity error

≤0.03% FS

Time Domain noise

4nT P-P

Data Output Rate

6 points@1S

Output Interface

TTL Electric Level@9600 baud rate

Working Power Supply

+3.6V~+5VDC

Power consumption

≤12mW

Waterproof level

IP68

Weight

<220g

Size

30mm×30mm×120mm

Application



magnetic detection under water

oil and mineral exploration

magnetic detection in air

geological detection


    It can be applided in:

  • magetic material detection
  • environment monitor
  • static magnetic field measurement
  • dynamic magnetic field measurement
  • shielding effectiveness detection
  • shieding effectiveness detection in magnetically shielded room
  • geomagnetic and background magnetic field measurement
  • monitor of effectiveness of passive shielding equipment
  • orientation sensing
  • detection of magnetic beacon
  •  defense system
Packing

Sensor size: 30mm×30mm×110mm



Net weight: 165g
