Silica Sand Washing Machine Suppliers

Supplier: Shanghai Zenith Minerals Co., Ltd.
Region: Shanghai, China
Contact: Mr. International Trade Departments
Price: $2169.00 /set
Min. Order: 1 set

Click here to contact

Product details

Test&Installation:	Professional Engineer Assigned;	delivery time:	30 days;
Weight:	20T;	Certification:	CE&ISO;
After-sales Service Provided:	Engineers available to service machinery overseas;	Capacity(t/h):	20-120TPH;
Dimension(LWH):	3845X3000X3080(cm);	Application:	Mining,Quarry,chemical industry and Construction;
specific service:	online engineer and free customer-built design;	Supply Ability:	80 Set/Sets per Month Silica Sand Washing Machine;
Port:	shanghai;	Payment Terms:	L/C,D/P,T/T,MoneyGram;
Motor Type:	AC Motor;	Spare Parts Supply:	Will Supply Any Time;
Place of Origin:	Shanghai China;	Product name:	Silica Sand Washing Machine Suppliers;
Packaging Detail:	Outer package:The machine is in a wooden box. anti extrusion Inside package:Plastic film package for the entire machine,Moisture proof and anti rust;	Condition:	New;
Brand Name:	ZENITH;	After Sales Service:	The whole time;
Details:	more information and price list please send me;	Color:	Yellow;

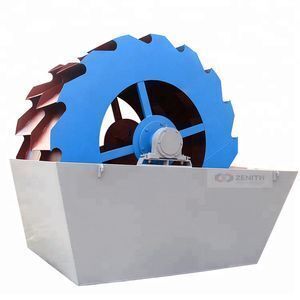

Silica Sand Washing Machine Suppliers

XSD sand washing machine is a kind of water use of sand making machine type and makes the necessary equipment of sand, sand washer can mix mechanism of sand out of the sand wash powder and impurities, so as to improve the quality of the sand.Can also be clean separation of sandstone of dirt and debris, its novel sealing structure, adjustable overflow weir plate, reliable transmission device to ensure the cleaning dehydration effect, mainly used in the construction site, sandstone factory, hydropower station, concrete dam site.

Parts classification( If you already have grinding mill,zenith provide a variety of accessories )

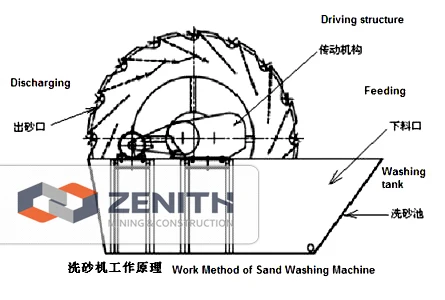

Silica Sand Washing Machine Suppliers working principle:

When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear. The sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, at the same time, it breaks the water vapour which favors dewatering; At the same time, the strong water flow takes the impurities away, and discharged from the overfall.

The clean sand is taken away by the impellers, when rising, the water drops down to the wash trough from the nets, this can both dewater the sand and save water. Finally, the sand is poured into the discharge chute and finished cleaning.

Why choose Silica Sand Washing Machine Suppliers

1.Simple structure.
2. The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing.
3.New sealing structure and reliable transmission device.
4.Reasonable structure.
5.High capacity, low power consumption.
6.Easy structure, stable operation.

Which kind of Silica Sand Washing Machine Suppliers is more suitable for you?

Model	Impeller (mm)	Max Feeding (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
XSD2610	Φ2600×1000	≤10	20-60	1.178	8-7.5	Y160L-8/7.5	3255×1982×2690
XSD3016	Φ3000×1600	≤10	70-120	1.179	8-15	Y200L-8/15	3845×3000×3080

tips:

Too many models, only lists the main products!
The production capacity>0.4t/h,Our machine all can be used!

Silica Sand Washing Machine Suppliers price?

1.Different models, different prices;

2. Message of reply, I will immediately report to you the price!

what is the raw material do you want to process?
what is the capacity per hour do you need?

what is the raw material input size?
what is the output size of your product?

3.Reply message can get 5% discount!

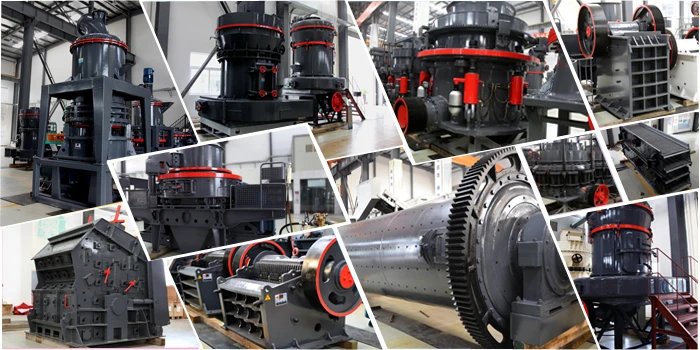

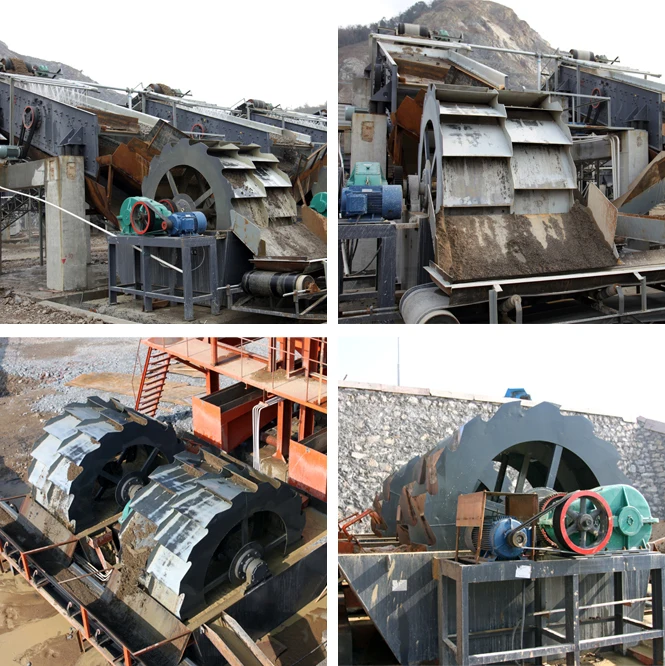

Production Line

High Quality Best Price Silica Sand Washing Machine Suppliers Products and Capacity:

5-500ton per hour crushing equipments and milling equipments Covers:

jaw crusher, impact crusher, double roller crusher, hammer crusher, vertical combination crusher, cone crusher; ball mill, coal mill, ceramic ball mill, cement ball mill, rod mill

10-200tons per hour Mineral processing equipments Covers:

spiral classifier, agitating tank, flotation machine, magnetic separator, shaking table, spiral chute, jig separator, high frequency screen, rotary kiln, thickener, belt conveyor, feeder

10-500tons per hour artificial stone and sand production line equipments Covers:

vibrating feeder, jaw crusher, impact crusher, vibrating screen, dust catcher, belt conveyor, ball mill, sand making machine, sand washing machine, rotary dryer

zenith production line of cases in various countries (Jeddah;Brunei;Angola;UAE;Palestine;Mexico;Kenya;Ghana;INDIA;KSA;

Oman;Egypt;Indonesia; Etc.)

zenith all kinds of aggregate plant( Basalt;Granite;Feldspar;River Stone;Limestone;Iron Ore;Dolomite;Calcite;Gypsum;Gold;

Bauxite;Copper;Construction Waste;Etc.)

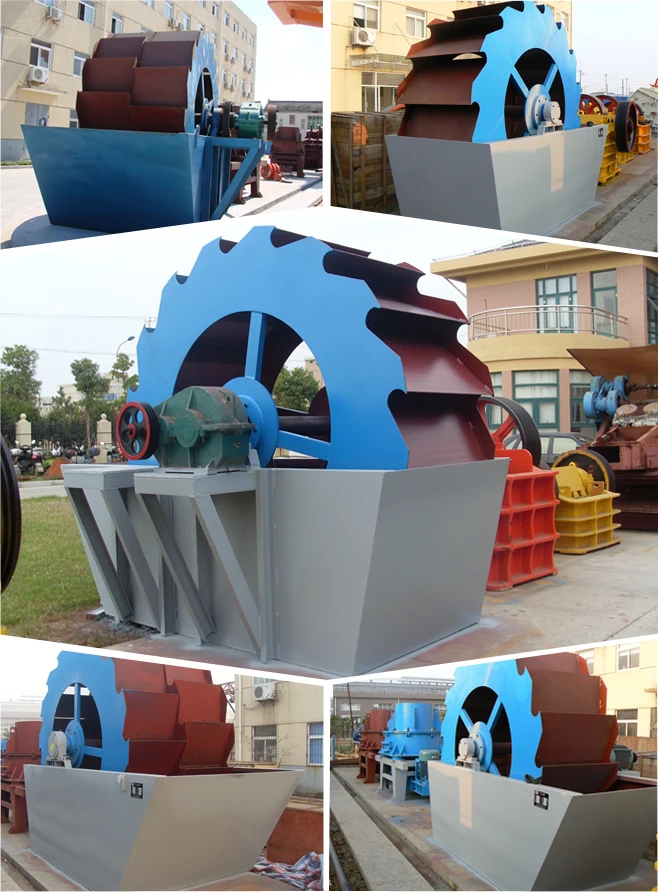

Packaging & Shipping

About the logistics

1.Choose the most efficient logistics company;

2. Port in Shanghai, convenient transportation, lead in all directions;

3. Transport packaging is rigorous, accessories in the wooden box;

4. If there is a problem of logistics, can leave a message.

zenith products sales site distribution map

Company Information

Shanghai Zenith Minerals Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices.

Our products have been sold to 160 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the Zenith Technology and Quality" as our management concept all the time.

Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, ZENITH has earned high reputation among our customers. Factory picture Headquarter of Zenith is located in Shanghai, China and now we have two manufacturing bases as our strong support.

One is located in Shanghai about 450,000 square meters, and the other is in Qidong city, about 600,000 square meters. It takes about one-hour driving from Shanghai to Qidong city. Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our ZENITH, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.

Certifications

We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience. We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.

Our Services

Pre-sales Service:

The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also. After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of Zenith, they are now strategically located home and abroad, working for our customers.

Technological support:

New products development is a key part of Zenith culture since it was founded. Zenith R&D team is made of 78 senior engineers. The top seven engineers are winners of special central government allowance, which are for the outstanding contribution in science and technology.

They are good at not only principle of mechanics, but also integration of theory and practical feedback, based on this they give solid support to our sales. Depending on our national patent machines such as XZM ultrafine mill, MTM mill, B Series Deep Rotor Vertical Shaft Impact Crusher, etc., Zenith win good reputation from markets home and abroad.

Recent development includes the MTW series mill, vertical mill, Hydraulic impact crusher,Track mounted crusher, PEW series jaw crusher, etc. Deeply believe that the measure of our worth is in the development and innovation of new products, and we are pursuing the “Zenith direction of technology and quality” all the way.

FAQ

We have more than 100 kinds of products, there is always a right for you!

If you are new for this business:

Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.

1.What is the type and size of raw material?

2.What is your required capacity(t/h)?

3.what is the raw material input size?

4.what is the output size of your product?

Look forward to your inquiries!

....
