Best wholesale websites box packing automatic blister cartoning machine

Supplier: Wenzhou Chuangxian Mechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Monica Feng
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	340015802000 mm;	Warranty:	1 Year;
Certification:	CE,ISO;	Working pressure:	≥0.6 Mpa;
Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles;	Carton paper requirement:	250-350g/m3;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;	Port:	Shanghai/Ningbo/Shenzhen;
Applicable Industries:	Manufacturing Plant;	Condition:	New;
Packaging Type:	Cartons;	Automatic Grade:	Automatic;
Packaging Material:	Paper;	Machine noise:	≤80dB;
Brand Name:	CHUANGXIAN;	Packaging Detail:	Export standard box package;
Supply Ability:	20 Set/Sets per Month blister cartoning machine;	Encasing speed:	30-100 Boxes / min;
Weight:	1200Kg;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Driven Type:	Electric;	Usage:	auto loading;
Type:	Packaging Line;	Place of Origin:	Zhejiang China;
Voltage:	220/380V;	Air consumption:	20 m3/h;
Product name:	blister cartoning machine;

Product Description

Product Description:

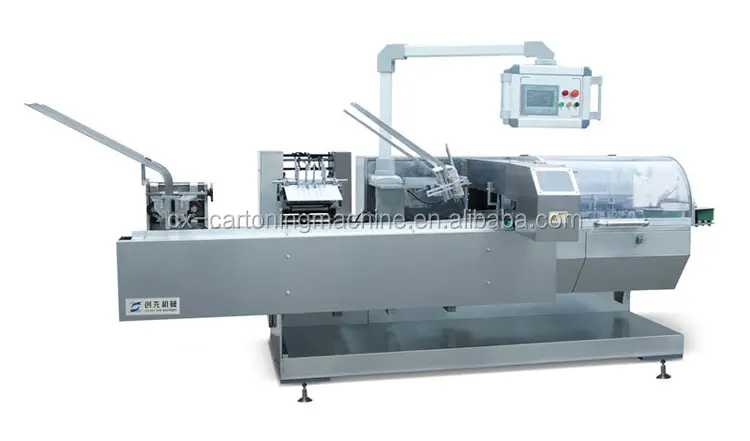

CXZ-120ZX is suitable for auto loading and packing blister into carton box and seal the carton automatically.

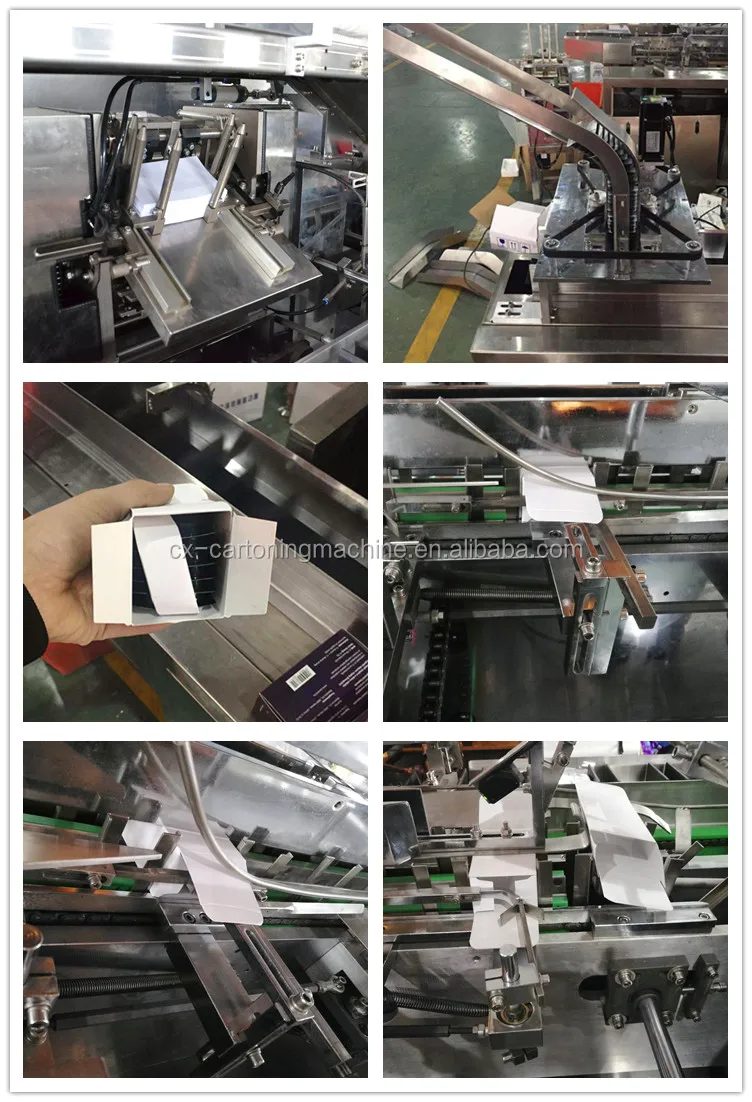

This system can open cartons, insert the leaflet(optional) products into cartons, emboss (optional), tuck in glue sealing(optional) and discharge cartons automatically.
It can connect with Blister Machine, Pillow Pack Machine, Cellophane wrapper, etc., to form a Production Packaging Line.

Specification:

Model		CXZ-120ZX
Encasing speed		30-100 Boxes / min
Carton Box (can be customized according to customer's request)	Length	60-120 mm
	Width	15-120mm
	Height	15-85 mm
	Carton paper requirement	250-350g/m³
Leaflet	Unfolded Size	(80-250)*(80-170)mm
	Folded Size	(80-250)*(20-40)mm
	Paper requirement	60-80g/m³
Motor Power		1.5KW
Power Type		220/380V 50Hz
Machine noise		≤80dB
Working pressure		≥0.6 Mpa
Air consumption		20 m³/h
Dimensions		3400×1580×2000 mm
Total Weight		1200Kg

Our Services

Pre-sale and In-sale Service

The important parts of the machine are all famous brand products, the quality is guaranteed.
We can provide the operation video of all models, and the CE certificate.
Customers provide the sample and we will test them on our machine.
Provide detail CAD layout of the machine.
Upgrade the design of manual box to machine box, which will be perfect on our machine.
Welcome to visit our factory, contact us let’s know your needs.

After-sale Service

For customers buying our products, we provide free training including operation and maintenance.
Our engineers will provide paid home installation services bases on your project.
If there is a problem with the machine, we will send a video tutorial or arrange a paid service.

Company Information

We are a leading manufacturer of cartoning machine. Our machines are CE certified and featured: quick changeover, high-speed and superior product handling. Our packaging experience and modular design provides proven solutions for most applications.
We constantly work with our customers to find more efficient ways to custom auto loading system and built a whole packaging line. The most popular brands of products are cartoning every day by our safe and dependable equipment that is designed in-house by our creative team of engineers.

Certifications

Packaging & Shipping

Machine are inspected by QC and took testing video before delivery;Exported Standard Box Package

FAQ

Q1:Are you a manufacturer?
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.

Q2: How is after-services of your factory?
We have aftersale department and provide one year warranty service.

Q3:Where is your factory?
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).

Q4:How can I pay my order?
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.

Q5:How can we ensure the safe production for product cartoning ?
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
