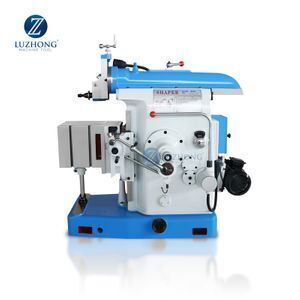

Shaping Machine B635A Mini Small Metal Shaper Machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Maximum tool carrier travel:	110mm;	Keywords:	metal shaper for sale,metal shaper;
Power(W):	1.5KW;	Table rotary angle (with vice):	±55°;
Name:	Shaping Machine B635A Mini Small Metal Shaper Machine;	Brand Name:	LU ZHONG machine;
Package Type:	The Package of shaper machine is export standard plywood case with iron pallet below ,very strong and durable . The shaper machine will be shipped to customers by land freight or sea freight .;	Condition:	New;
Max.table vertical travel:	270mm;	Maximum shaping length:	350mm;
Weight:	1000/1200KGS;	Maximum ram travel:	170mm;
Table rotary angle (without vice):	±90°;	Single package size:	153X93X1370 cm;
Place of Origin:	Shandong China;	Warranty:	One Year;
Selling Units:	Single item;	Max.table horizontal travel:	400mm;
Voltage:	380V;	After-sales Service Provided:	Online support,Video technical support;
Certification:	CE ISO9001;	Single gross weight:	1,200 KG;
Key Selling Points:	Competitive Price;	ram bottom to table surface:	330;
Applicable Industries:	Manufacturing Plant;	Dimension(LWH):	1530X930X1370mm;

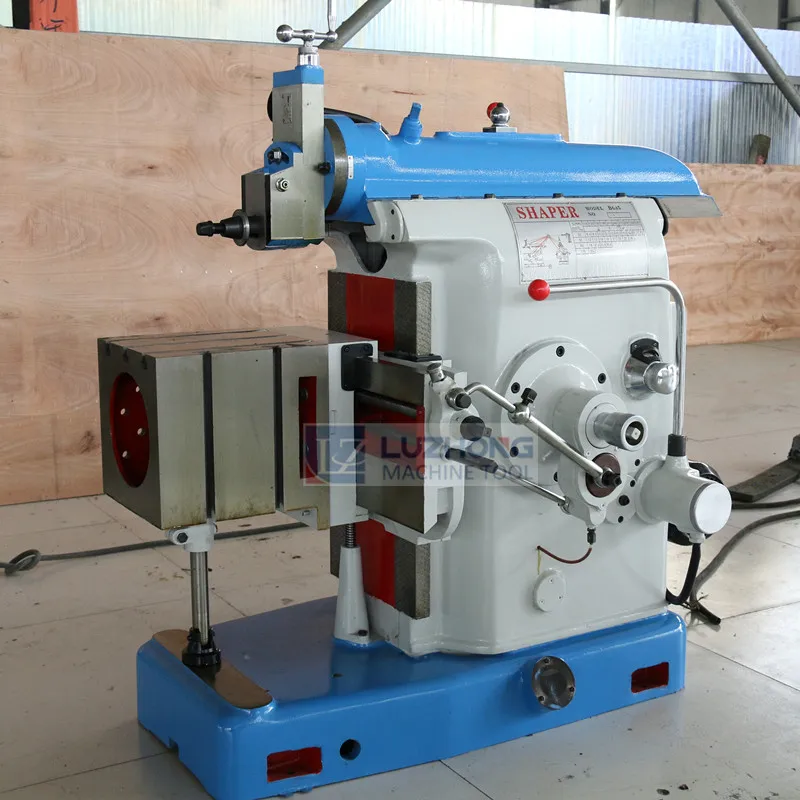

Shaping Machine B635A Mini Small Metal Shaper Machine

Product Description

Product main features:
1. Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane, thereby expanding the scope of use.

2 feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.

3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.

4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.

5 Shaper with parking brake mechanism, so the speed of transformation. When starting machine tools and parking, the power supply can not be cut off.

Product main technical specifications:

Specifications	Units	B635
Maximum shaping length	mm	350
Maximum distance from ram bottom to table surface	mm	330
Maximum moving distance of the working table(level)	mm	400
Maximum moving distance of the working table (vertical)	mm	270
Since the plane bed leading surface extending the maximum distance	mm	550
Maximum ram travel	mm	170
Table rotary angle (without vice)		±90°
Table rotary angle (with vice)		±55°
Maximum tool carrier travel	mm	110
Number of ram reciprocating per minute	NO/min	32, 50, 80, 125,
Gear move one tooth (vertical)	mm	0.18
Gear move one tooth (level)	mm	0.21
Gear move four tooth (vertical)	mm	0.73
Gear move four tooth (level)	mm	0.84
Main motor power	KW r/min	1.5 1400
Overall dimensions (LWH)	mm	15309301370
N/G.W	kg	1000/1200
