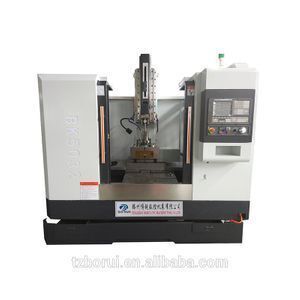

New Decisigned Automatic Slotter BK5032 CNC Slotting Machine Price

Product details
Package Type:Machine Model: New Decisigned Automatic Slotter BK5032 CNC Slotting Machine Price Type of package: Plywood case Packaging size: CM(one set in one case) N.W./G.W.: 2700KGS;Model:BK5032;
Voltage:220/380/400;Application:Metal Cutting Machine;
Type:Vertical Shaping Machine;Single gross weight:2,700 KG;
Weight:2700KG;Work table size:630;
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;Brand Name:BORUI;
Keyword:Mechanical Shaping;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Construction works ;
Place of Origin:Shandong China;Processing Types:Metal Processing;
Name:BK5032 CNC Slotting Machine Price;Single package size:200X160X240 cm;
MAX SLOTTING LENGTH:320mm;Warranty:1 Year;
Certification:CE ISO9001;Dimension(L*W*H):2000x1500x2400MM;
After-sales Service Provided:No overseas service provided;Selling Units:Single item;
Condition:New;Color:Customer Appoint;
Power(W):3KW;Key Selling Points:High-accuracy;



New Decisigned Automatic Slotter BK5032 CNC Slotting Machine Price

Product Description



The main performance characteristics:

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,

2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5. Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.



Application:

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other  within the scope of etc. work matter,,

Enterprise suitable for single or small batch production.



Product main technical parameters:

Control system

KND1000M

Max cutting length mm

320

The maximum longitudinal movement distance of worktable is X axis mm

560

The maximum horizontal movement distance of worktable is Z axis mm

540

Maximum rotation angle of worktable

360

Maximum cutting force KN

8

Distance between cutter support surface and front wall of bed

600

Worktable diameter mm

630

Slide angle of the ram

0-8

Vertical adjustment of the ram distance mm

370

Distance between worktable and lower end of carriage

470

Worktable maximum load Kg

500

Main motor power

3

The main motor speed r / min

960

Machine weight (approx.) Kg

2700

Dimensions (length × width × height) mm

2000X1500X2400

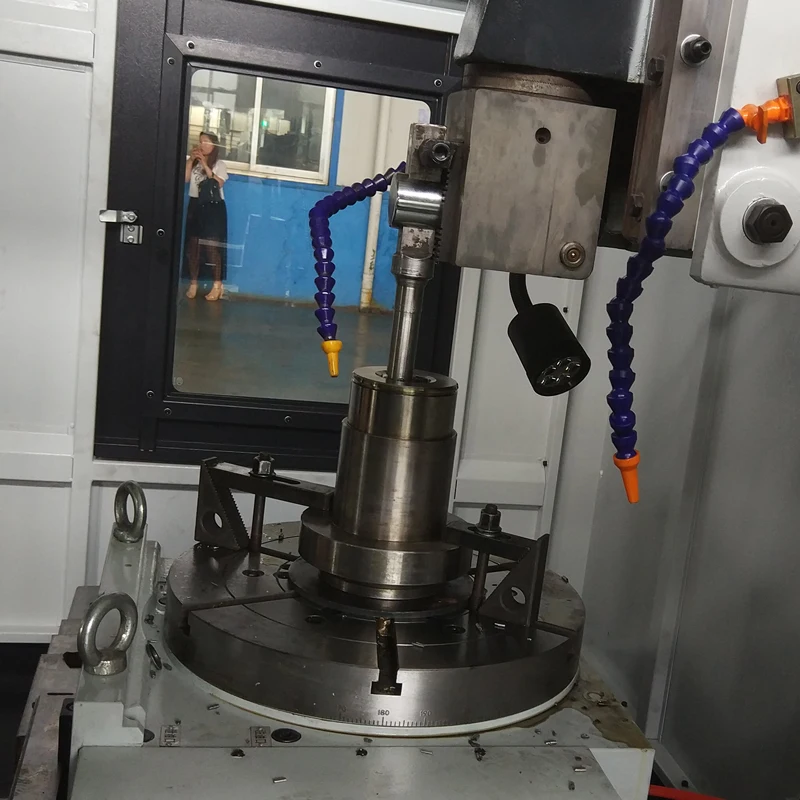

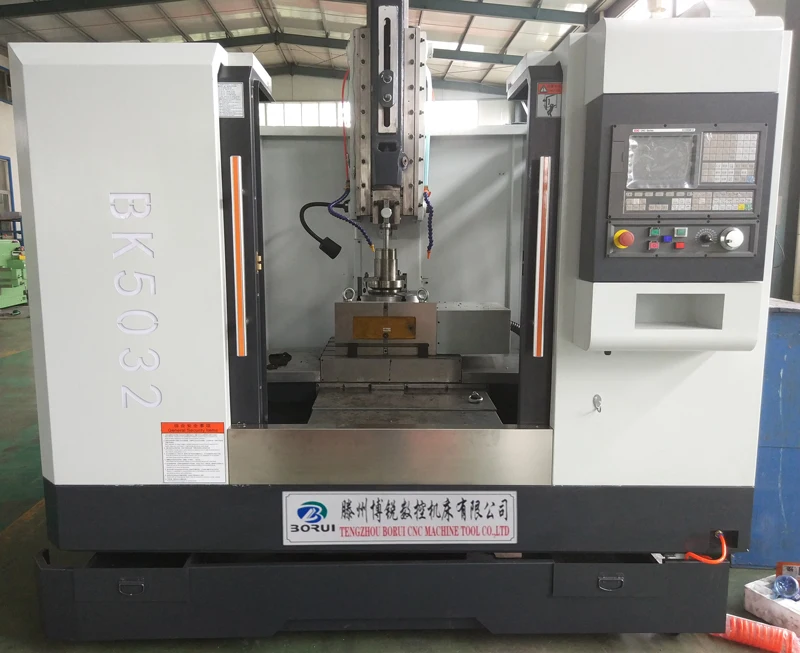

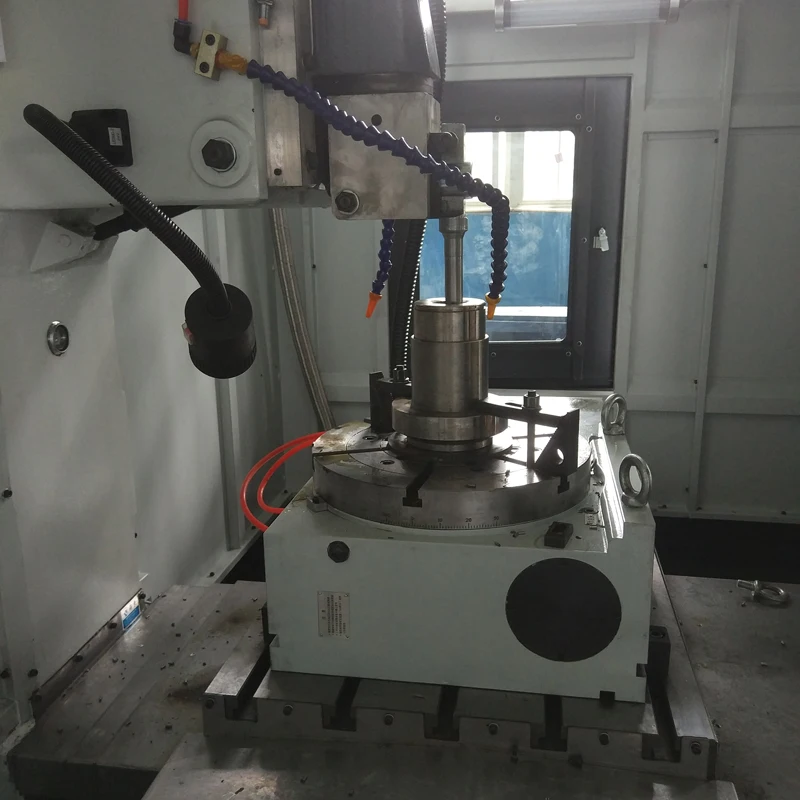

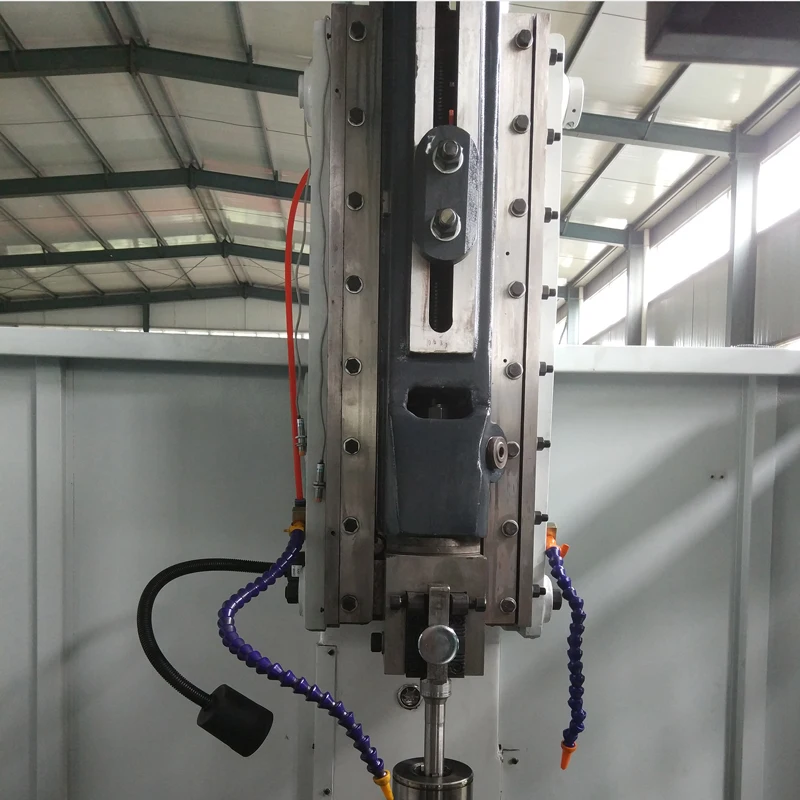

Detailed Images



















Company Information



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )



We want to know:

1.What’s your Industrial Voltage?

2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

3.If need CIF Price, please kindly tell us the port of destination.
