cassava flour making machine production line

Product details
Payment Terms:L/C,T/T;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Detail:WOODEN PACKING;Place of Origin:Jiangsu China;
After-sales Service Provided:Field installation, commissioning and training;Voltage:All countries are ok;
Brand Name:Jin Bao;Condition:New;
Supply Ability:100 Set/Sets per Month;Warranty:1 Year;
Port:SHANGHAI CHINA;material:sus304/316;
Certification:CE & ISO;

                               cassava flour making machine production line

Usage:

This machine has good effect for cassava flour powder, many clients around the world bought this kind equipment to grind cassava flour, and it has good effect.



Specialty:

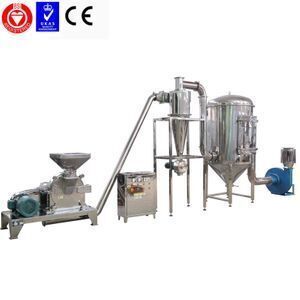

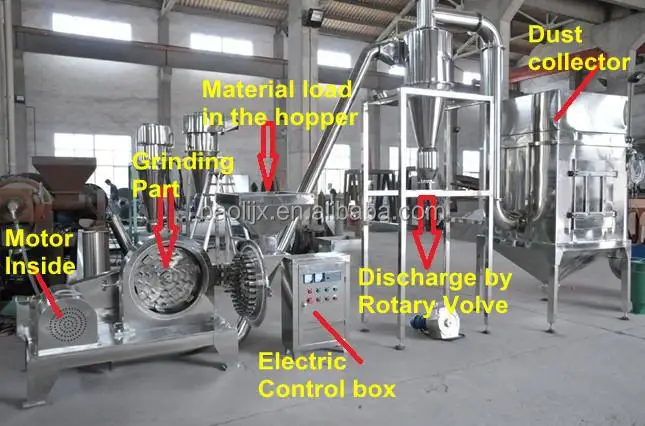

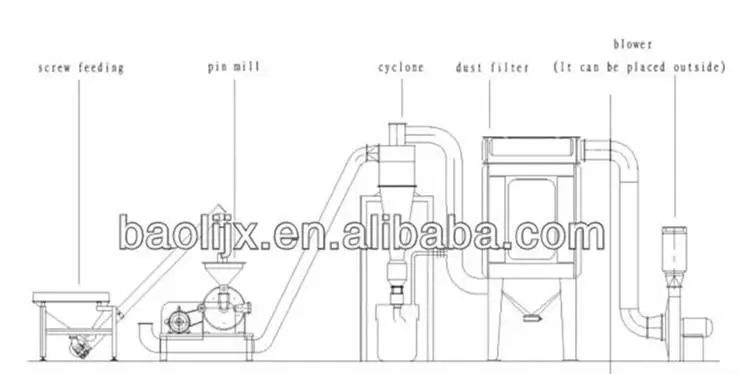

 This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc.The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production.



  Technical Data:



Model

JB-20B

JB-30B

JB-40B

JB-60B

JB-80B

Capacity(kg/h)

65-150

100-400

160-1000

300-1500

500-2000

Speed of principal axis (rpm)

4500

3800

3400

2800

2100

Size of input granules (mm)

6

6

10

12

15

Crushing fineness (mesh)

60-150

60-120

60-120

60-120

60-100

Crushing Motor(kw)

5.5

7.5

11

22

30

Dust collecting Motor (kw)

1.5

3

4

7.5

15

Discharge motor(kw)

0.75

0.75

0.75

0.75

0.75

Overall Size(L *W*H)(mm)

2800*850*2300

3500*850*2480

3800*900*2550

4500*1100*2800

5800*1400*3600

Weight(kg)

580

800

1200

1800

2900

Material

SS304

SS304

SS304

SS304

SS304









JB  cassava processing machine has a water cooling system, so that the machine won't get too hot while running. There is a jacket around the crushing part to let cold water go in and out.



  Different Mesh pictures for your reference

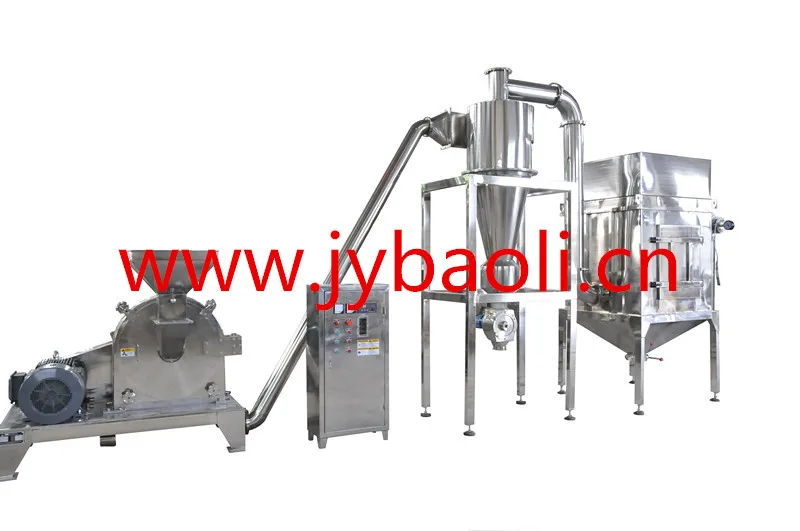

JB crusher production line









If you want to send inquriy to me about JB cassava flour mill grinding machine, could you please tell me?

 1 What material you want to grind, is it dry, what is the size?

2 What capacity you expect ? (kg/h)

3 What mesh(size) of the powder you want?

4 What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

  (We only provide 3P, because our machines are all for industrial use,not for family.)



Then our communication will be more efficient.
