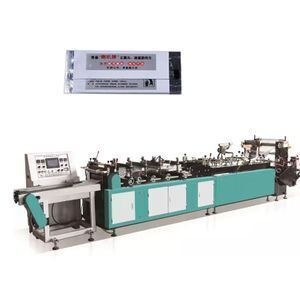

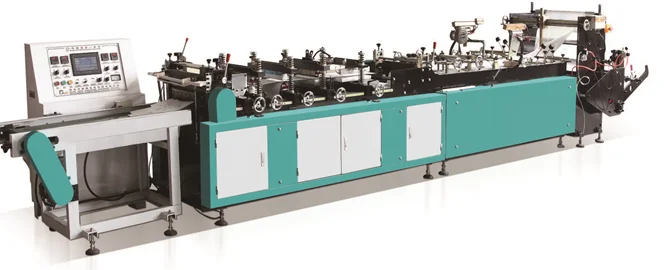

ZFB400 middle sealing bottom sealing bag making machine

Supplier: Ruian Toyo Imp And Exp Co., Ltd.
Region: Zhejiang, China
Contact: Ms lily peng
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Type:	Bag Forming Machine;	Place of Origin:	Zhejiang China;
Product name:	middle bottom sealing bag making machine;	Scope of bag making width:	30-350mm;
Power source:	Singal phase 220v/ 3 phase 380v;	Brand Name:	BDTECH;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Port:	NINGBO OR SHANGHAI;
Certification:	CE;	Supply Ability:	50 Set/Sets per Year;
Max material width:	700mm;	Weight:	1500kg;
Voltage:	380-450V;	Packaging Detail:	plastic film and export wooden case, or wooden pallet...;
Payment Terms:	D/P,T/T;	Bag making speed:	260pcs /min;

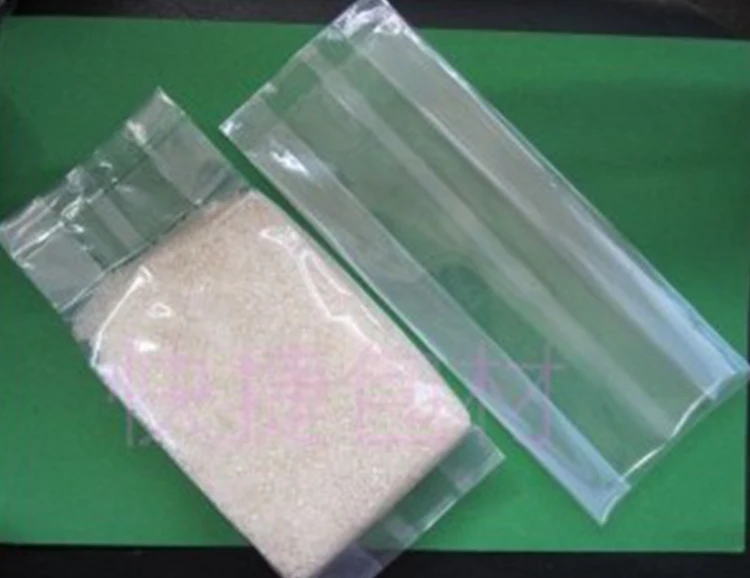

Bag Type:	Shopping Bag;	Computerized:	Yes;
Condition:	New;	Material:	Plastic;
Model Number:	ZFB 400;	Applicable Industries:	other;
Dimension(LWH):	5200x1400x1500mm;	Warranty:	1 Year;

Ruian Toyo

Product Description

Product Application:

this machine is suitable for laminated film,auto middle sealing,bottom sealing and cutting, micro-computer control,servo motor control,frequency inverter adjust speed,photocell track,counting meter,auto temperature, auto-stop,two times sealing,sealing fasten,clean well.(option device: hole,easy-open mouth,single layer sealing and cutting device.) one-step forming.
save electricity power,reduce worker quantity,high speed.easy to operate.

Type	ZFB400
Scope of bag making width	30-350mm
Max material width	700mm
Bag making speed	260pcs /min
Total power	4.2kw
Power source	Singal phase 220v/ 3 phase 380v
Overall dimensions(L×W×H)	5200mm×1400mm×1500mm
Weight of machine	1500kg

Main Features:

1)use micro-computer control
2)use inverter adjust speed
3)double step motor control the setting length
4)intelligent temperature control
5)photocell track and set the position

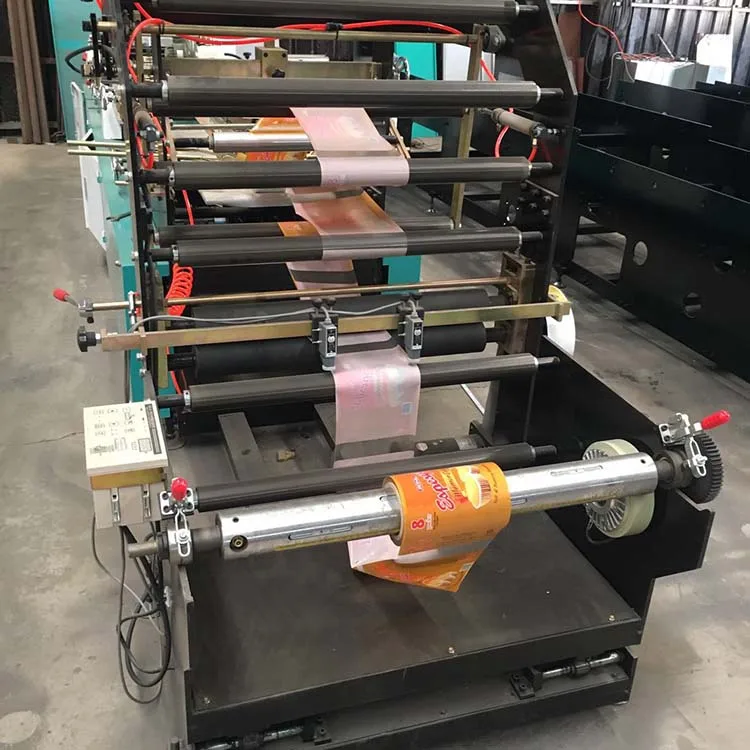

6)feeding material system have compensate structure

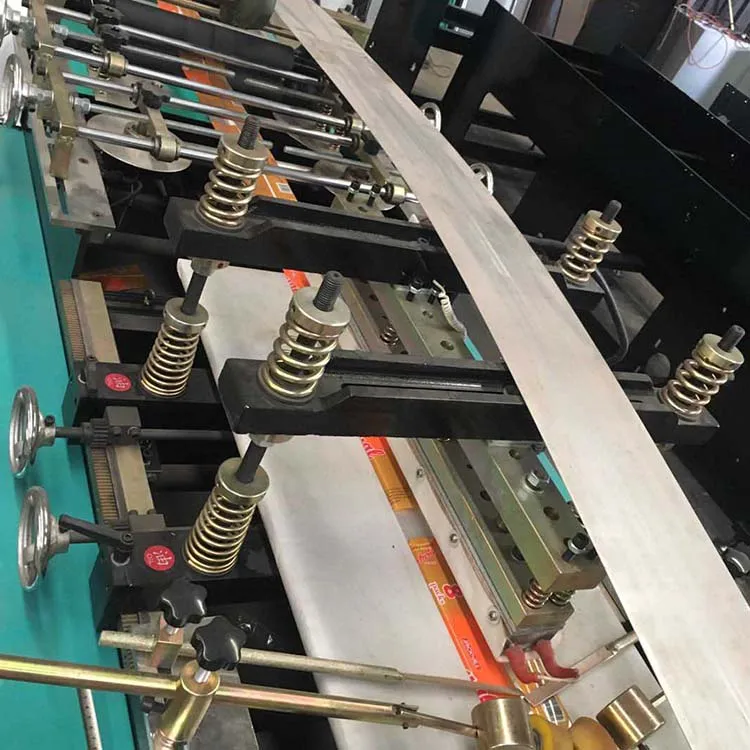

7)middle sealing use flat press structure,let the middle sealing more fasten
8)two pcs bottom sealing, sealing more fasten
9)machine with gusset structure

More Products

About Us

Our Advantage

Packing&Transport

Production Process

FAQ

1. your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.

2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need, we can we pick you up from airport or train station.

4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food, hotel and transport, pay our engineer 100usd / day / person as salary.

In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
