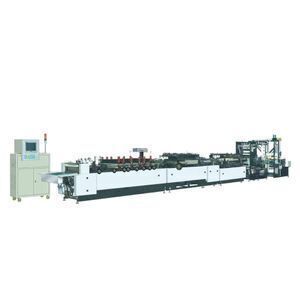

FBD-600TB-C three side sealing, stand-up zipper bag making machine

Supplier: Ruian Toyo Imp And Exp Co., Ltd.
Region: Zhejiang, China
Contact: Ms lily peng
Price: $58850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	50 Set/Sets per Year;	diameter of unwinding:	600mm;
Warranty:	1 Year;	Type:	FBD-600TB-C;
Place of Origin:	Zhejiang China (Mainland);	Model Number:	FBD-600TB-C;
Brand Name:	BDTECH;	speed of making bags:	160pcs/min;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	machinery speed:	45m/min;
Machine Type:	Sealing Machine;	Computerized:	Yes;
min meterial width:	600(can do times sending);	Condition:	New;
Weight:	7000kg;	Packaging Detail:	1.plastic film and export wooden case 2.plastic film and export wooden pallet;
Port:	NINGBO OR SHANGHAI;	Total power:	60kw;
Overall dimension:	12500x2500x1870mm;	Voltage:	380-450V;
Wight:	7000kg;	Material:	Plastic;
Dimension(LWH):	12500x2500x1870mm;	Applicable Industries:	other;
accessorial meterial width:	120mm;	Payment Terms:	L/C,D/P,T/T;
width of making bags:	600mm;	Certification:	CE;

Ruian Toyo

Product Description

Product Application:

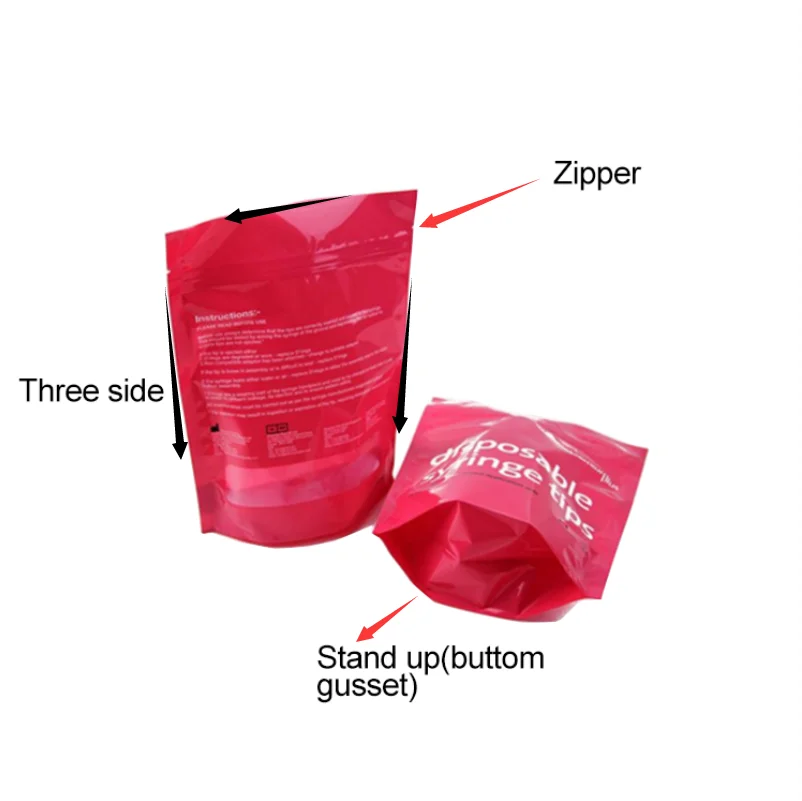

It is suitable for laminated film of three-side sealing bag,stand-up bag,
zipper bag machine to produce successively.easy to operate,acctually position,reliable quanlity

Type	FBD600TB-C
Width of making bags	600mm
Min meterial width	600(can do times sending)
Accessorial meterial width	120mm
Speed of making bags	160pcs/min
Machinery speed	45m/min
Diameter of unwinding	600mm
Total power	60kw
Wight	7000kg
Overall dimension	12500x2500x1870mm

Main Features:

1)whole machine controlled by central PLC control system.with man-machine interface
more stable performance,easy for operation and maintenance.lanugage can use english and chinese

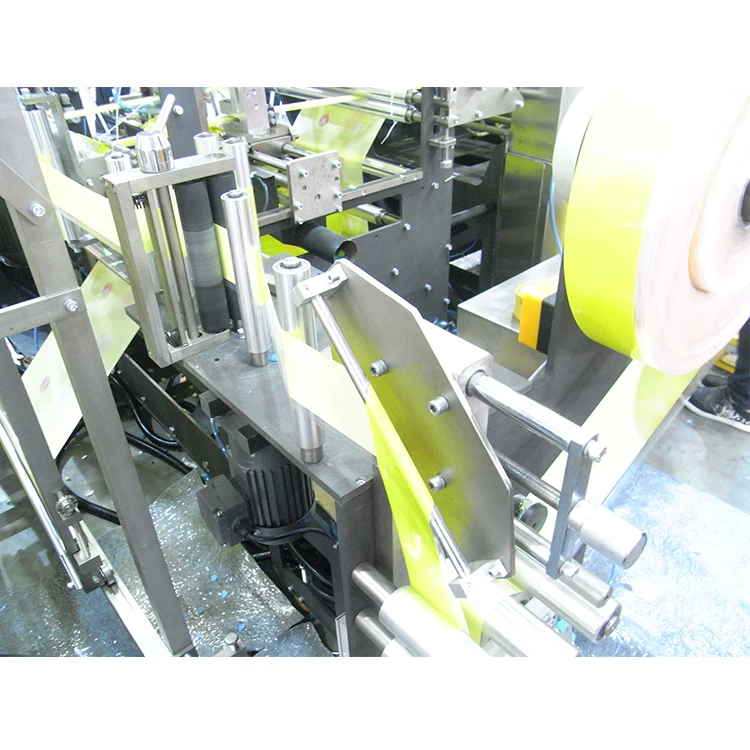

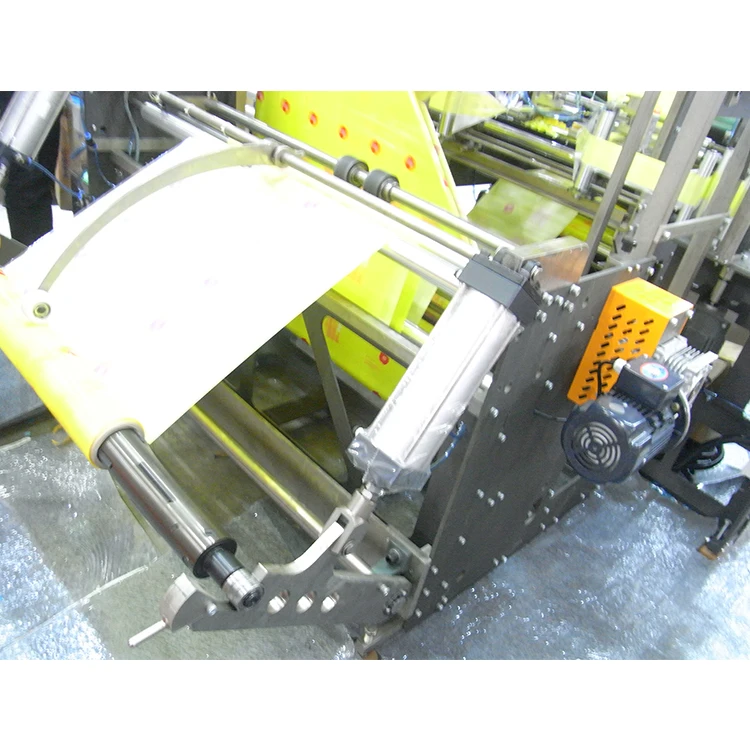

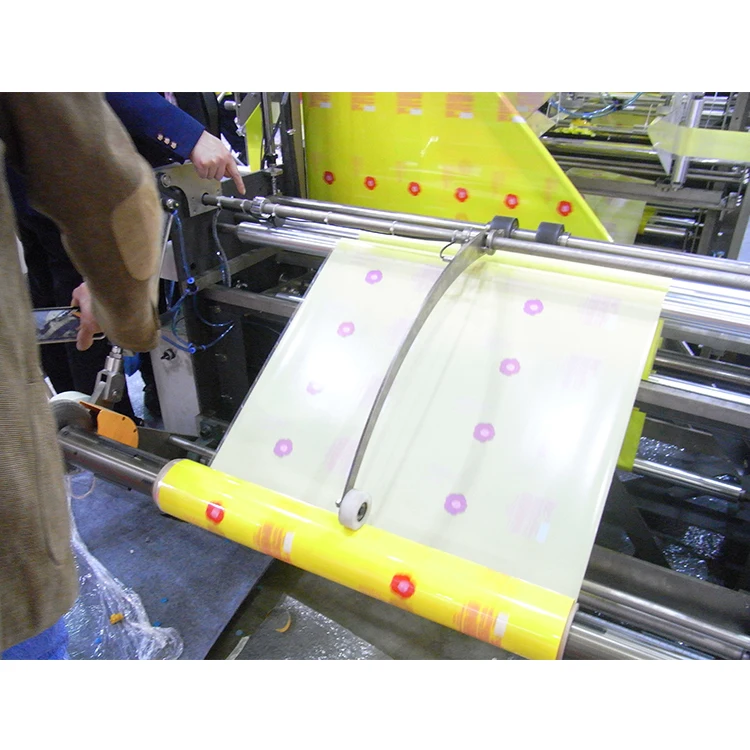

2)constant auto-tension control for unwinding,LPC edge alignment AC inverter constant speed auto material feeding
3)japan three servo motor material dragging system
4)main motor for up-down sealing and pressing equipped with inverter
5)PID for sealing bar temperature adjustment,no touch auto control,centralized setting in man-machine interface
6)heavy type pressure,let bag more clean
7)pneumatic multi-function auto punching device,trim cutting and auto-rewinding.have static eliminator
8)temprature adjust range:0-300C
9)counter:quantity,batch accumulation,per-set avaliable
10)operation method: by length fixation countrol and/or by photocell tracking
11)punching device: working rhythm can pre-set as continuours,interval or stop,punching time can be pre-set
12)material skip feeding: one to six times available
13)batch converying function avaliable,the quantity of batch can be pre-set

More Products

About Us

Our Advantage

Packing&Transport

Production Process

FAQ

1. your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.

2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need, we can we pick you up from airport or train station.

4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food, hotel and transport, pay our engineer 100usd / day / person as salary.

In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
