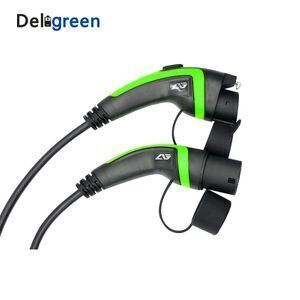

Connectors Type1 To Type2 Extension Level 2 Stations Sae J1772 Plug 32a Home Ev Charging Station

Supplier: Changsha Deligreen Power Co., Ltd.
Region: Hunan, China
Contact: Ms Chou Mandy
Price: $77.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	Veichles Charging Station,electric Vehicle;	Selling Units:	Single item;
Single package size:	5X5X5 cm;	Warranty:	2 years;
Calb Length:	5M Customizable;	Type:	Stand groud;
product name:	Level 2 Stations Sae J1772 Plug 32a Home Ev Charging Station;	Place of Origin:	Zhejiang;
Logo color:	Customizeable;	Model Number:	Type1 To Type2;
Brand Name:	Deligreen;	Single gross weight:	4 KG;
Certificate:	CE ROHS TUV UL94;	Types of cable:	Straight Spiral;
Mechanical life:	10000 TIME;	Package Type:	Bubble bag +Outer carton Imported TPU materia ,Cable with pure Copper Not CCAW Cable +Plug all made from One factory CE ,ROHS,TUV,ULApproved Price With 5M cable Included;
Material:	Imported TPU,Pure Colly;

Connectors Type1 To Type2 Extension Level 2 Stations Sae J1772 Plug 32a Home Ev Charging Station

Product Description

Brief Introduction

The IEC62196 Charging cable with plug is compatible with models from brands such as BMW, Volkswagen, Audi, Mercedes, Porsche,
Volvo, Tesla and even Renault. It is one of the most popular connectors in terms of electric vehicles.

Mechanical Properties
Mechanical life	no-load plug> 10000	Insertion force:	<100N
Impact of external force	can afford 1m drop and 2t vehicle run over pressure

Electrical Performance
The rated current	16A,20A,32A	The rated voltage	120V,250V
Insulation resistance	> 1000MΩ (DC500V)	Pins temperature rise	<50K
Withstand voltage	2500V	Contact impedance	0.5mΩ Max

Cable optional for Straight & Spiral , Single phase & Three phase optional

Company Information

Our Advantages

1. OEM Manufacturing welcome: Product, Package. At least 100 pcs.
2. We will reply you for the inquiry within 12 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you
got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us,
4.1.Conform to the provisions and requirements of SAE J1772-2012, IEC 62196-2 2016 2-I

5.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
6.XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable
7.Excellent protection performance, protection grade achieved IP55 (working condition)

8.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey)
