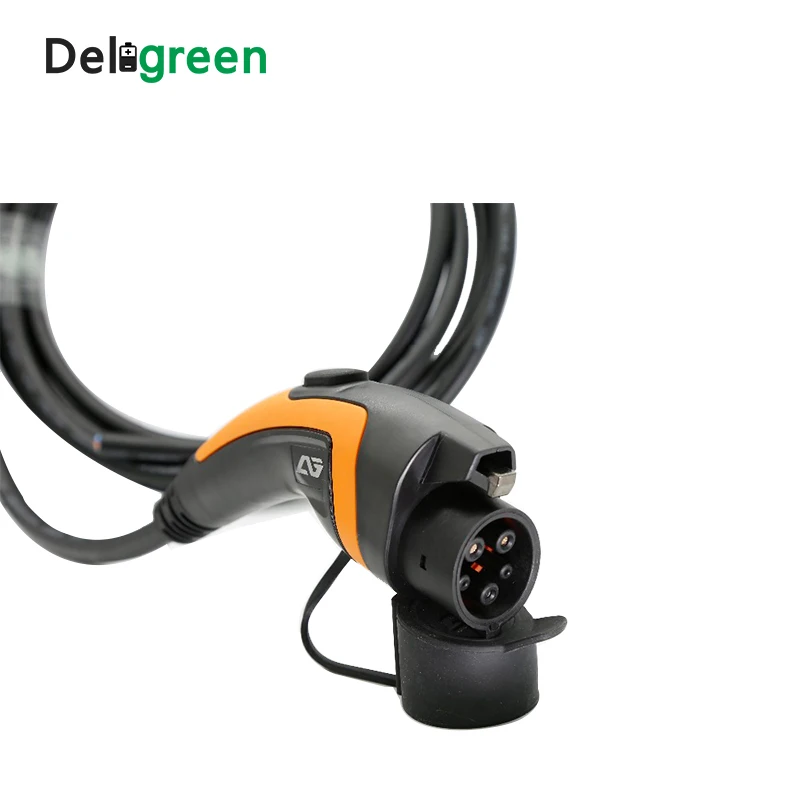

16A Leads Connectors Extension Plug Type2 Mode IEC J1772 Charging Cable Level 2 Ac Ev Charger Home Charing Connector

Supplier: Changsha Deligreen Power Co., Ltd.
Region: Hunan, China
Contact: Ms Chou Mandy
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Calb Length:	5M Customizable;	Type:	Stand groud;
Brand Name:	Deligreen;	Place of Origin:	Zhejiang;
Warranty:	2 years;	Certificate:	CE ROHS TUV UL94;
Selling Units:	Single item;	Mechanical life:	10000 TIME;
Model Number:	J1772 Charging Cable;	Single package size:	4X4X4 cm;
Logo:	Customizeable;	Application:	Veichles Charging Station;
product name:	level2 ac ev charger home charing connector;	Rated Current:	16A 32A;
Package Type:	Bubble bag +Outer carton Imported TPU materia ,Cable with pure Copper Not CCAW Cable +Plug all made from One factory CE ,ROHS,TUV,ULApproved Price With 5M cable Included;	Single gross weight:	3.5 KG;
Material:	Imported TPU,Pure Colly;

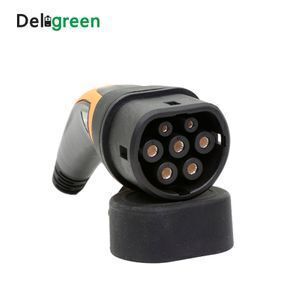

16A Leads Connectors Extension Plug Type2 Mode IEC 62196 Charging Organge Cable Level 2 Ac Ev Charger Home Charing Connector

Product Description

Brief Introduction

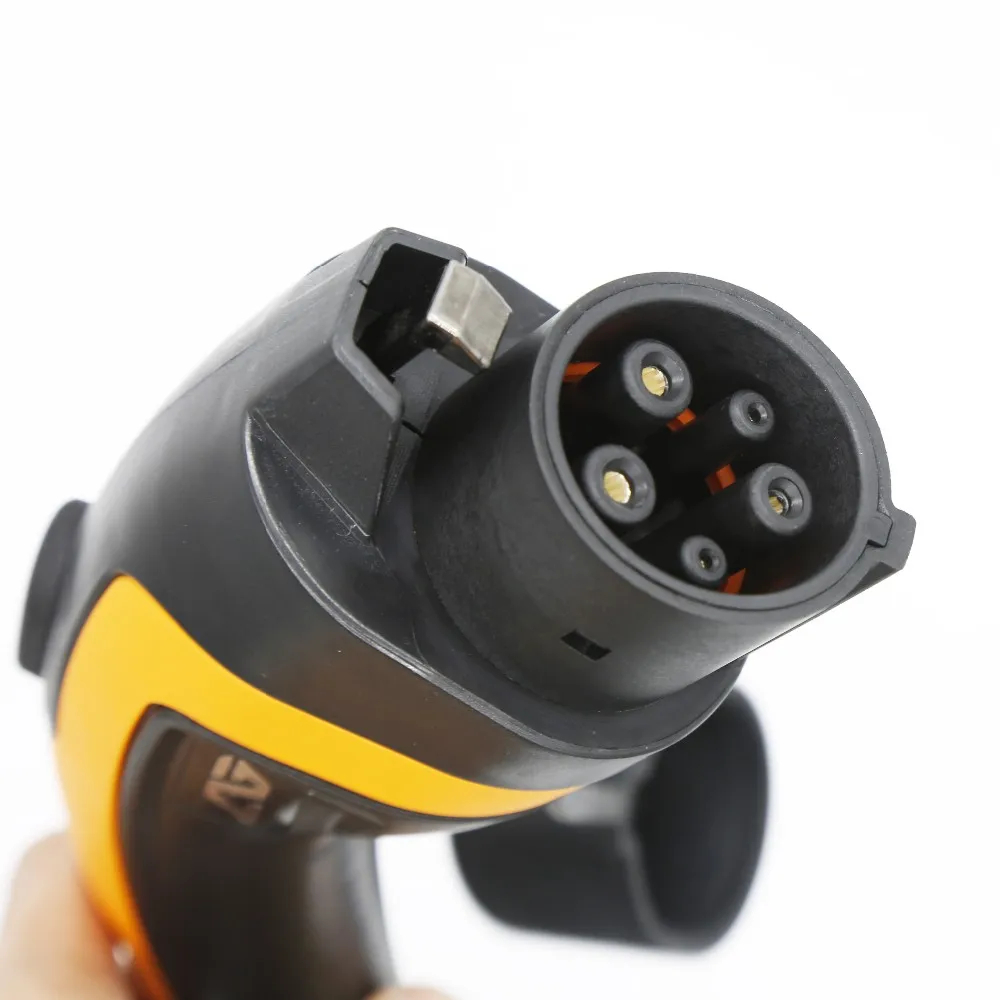

The SAE J1772 is compatible with models from brands such as BMW, Volkswagen, Audi, Mercedes, Porsche,
Volvo, Tesla and even Renault. It is one of the most popular connectors in terms of electric vehicles.

Mechanical Properties
Mechanical life	no-load plug> 10000	Insertion force:	<100N
Impact of external force	can afford 1m drop and 2t vehicle run over pressure

Electrical Performance
The rated current	16A,20A,32A	The rated voltage	120V,250V
Insulation resistance	> 1000MΩ (DC500V)	Pins temperature rise	<50K
Withstand voltage	2500V	Contact impedance	0.5mΩ Max

Company Information

Our Advantages

1. OEM Manufacturing welcome: Product, Package. At least 100 pcs.
2. We will reply you for the inquiry within 12 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you
got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us,
4.1.Conform to the provisions and requirements of SAE J1772-2012, IEC 62196-2 2016 2-I

5.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
6.XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable
7.Excellent protection performance, protection grade achieved IP55 (working condition)

8.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey)
