Single Blade Knife Guillotine Bale Rubber Cutter With Feeding Raceway 80 120 125

Product details
Type:Rubber bale cutter;Dimension(L*W*H):1950x1400x2400mm;
Place of Origin:Shandong China;Model Number:XQL-125;
Packaging Detail:Packing with stretch film / wooden case;After-sales Service Provided:Engineers available to service machinery overseas;
Condition:New;Port:QingDao;
Delivery Detail:30-40days;Voltage:380V;
Weight:1600kg;Cutting Stroke:780mm;
Rated Cutting Force:125KN;Certification:ISO9001:2008/CE/SGS;
Power(W):5.5kw;Warranty:12months;
Cutting Time:14-16s;Supply Ability:500 Set/Sets per Year;
Brand Name:Shun Cheong;Cutting Width:760mm;
Payment Terms:L/C,T/T,Western Union,MoneyGram;

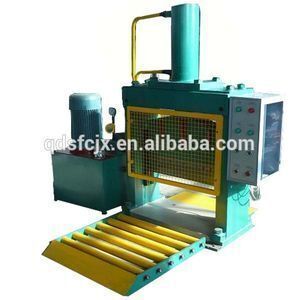

Single Blade Knife Guillotine Bale Rubber Cutter Pictures



Single Blade Knife Guillotine Bale Rubber Cutter Detail Picture



Single Blade Knife Guillotine Bale Rubber Cutter Lightspot



1.Front and rear both have Safety protective cover

2. Operation side has feeding raceway to assist operation.

3. Base plate is made of metallic lead. Can be used for a longer time.

4. Have limit switch to adjust cutting stroke



Single Blade Knife Guillotine Bale Rubber Cutter Application



Single Blade Knife Guillotine Bale Rubber Cutter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials into gommures or pieces, which is convenient to mix.



Especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.



Single Blade Knife Guillotine Bale Rubber Cutter Specification

ModelXQL-80XQL-125
Cutting Width660760
Rated Cutting Force(KN)80125
Cutting Stroke(mm)680780
Cutting Time(mm)14-1614-16
Motor Power(KW)5.55.5
Overall Dimension(mm)2122X1440X25001950X1400X2400
Weight14001600



Rubber Bale Cutter Feature

1.Single Blade Knife Guillotine Bale Rubber Cuttermainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure,convenient to operate.



2.Single Blade Knife Guillotine Bale Rubber Cutter has a Lead casting blade base which is under the rubber knife for protecting the edge of the rubber knife.There is no quick-wear part.



3. Single Blade Knife Guillotine Bale Rubber Cutter have two limit switches which are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.



4.Single Blade Knife Guillotine Bale Rubber Cutterconsists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure,convenient to operate.







Single Blade Knife Guillotine Bale Rubber Cutter Packing way:

(1) wrapped with stretch film, avoid rubbing the paint off the surface.

(2)  wooden packaging can be  customized.

(3) key parts, such as electronic control box, will be wrapped by shockproof  packaging materials, and then packed in wooden cases.



Single Blade Knife Guillotine Bale Rubber Cutter Packing Picture:

  • Design various kinds of non-standard plate vulcanizing presses according to your requirment and send them the drawing to confirm. We are always on the side of saving your cost.

  • In the process of production,  take photos and send to customers for their track the progress.
  • Testing machine is available, make sure customer satisfied with machine's quality
  • Help customer to design, make drawing,accept OEM rubber machine
  • Arrange shipment and inform customer in advance 7 days before finishing the order
  • Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing are supplied.
  • supply overseas engineer service and help to train your workers to operate the machine.



Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer  with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.



our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...



Market:  our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions



Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available.









1. Delivery time of the rubber machines?

This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.We will pick up you at the airport.
