Payment Terms: | L/C,T/T,Western Union,PayPal; | Packaging Detail: | Carton as the export standard for China Holykell Portable Ultrasonic Water Flowmeter Price, handheld clamp on Ultrasonic Flow Meter price; |
Type: | Portable Ultrasonic Water Flowmeter; | Place of Origin: | Hunan China; |
Diameter Nominal: | DN25 ~ DN1000 flowmeter; | Flow range: | 0.2~32m/s; |
Communication: | RS232; | Brand Name: | Holykell; |
Accuracy: | up to +/-1.0%; | Model Number: | HUF-2000 ultrasonic flow meter; |
Medium: | Liquid, water; | Pipe size: | DN15mm-6000m; |
Supply Ability: | 50000 Unit/Units per Month Portable Ultrasonic Water Flowmeter; | Port: | Guangzhou / Shenzhen; |
Mounting type: | Clamp-on; Handheld Protable type; | Protection grade: | IP67; |

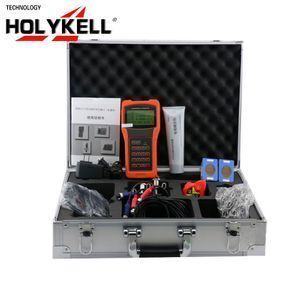

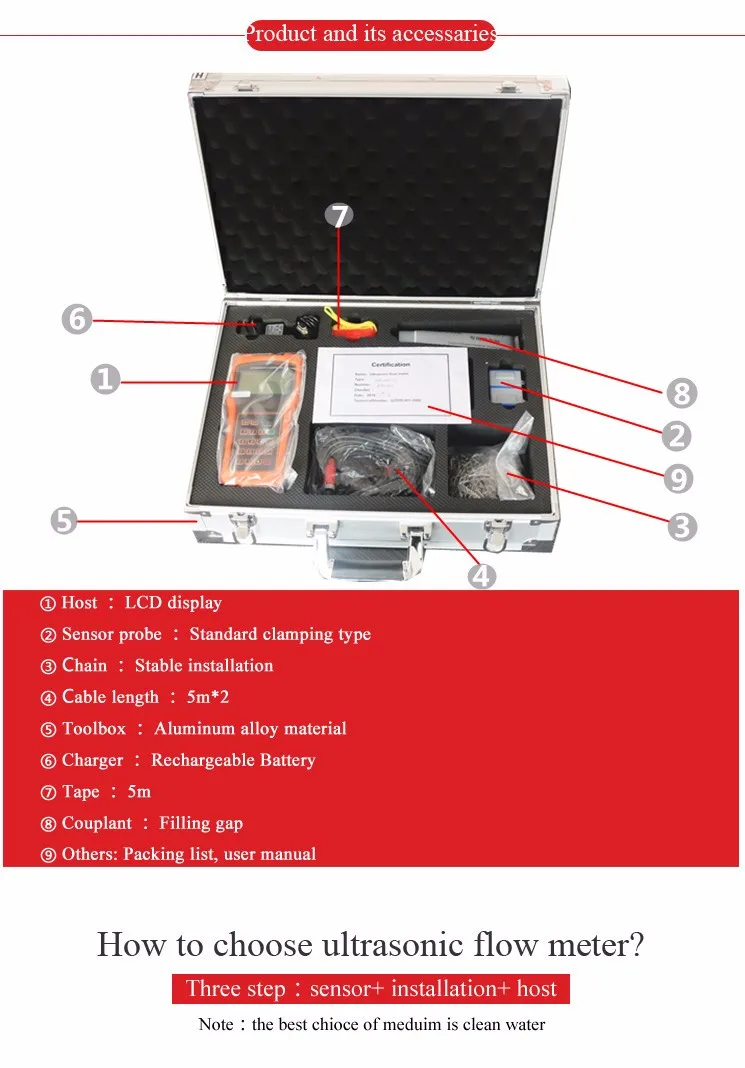

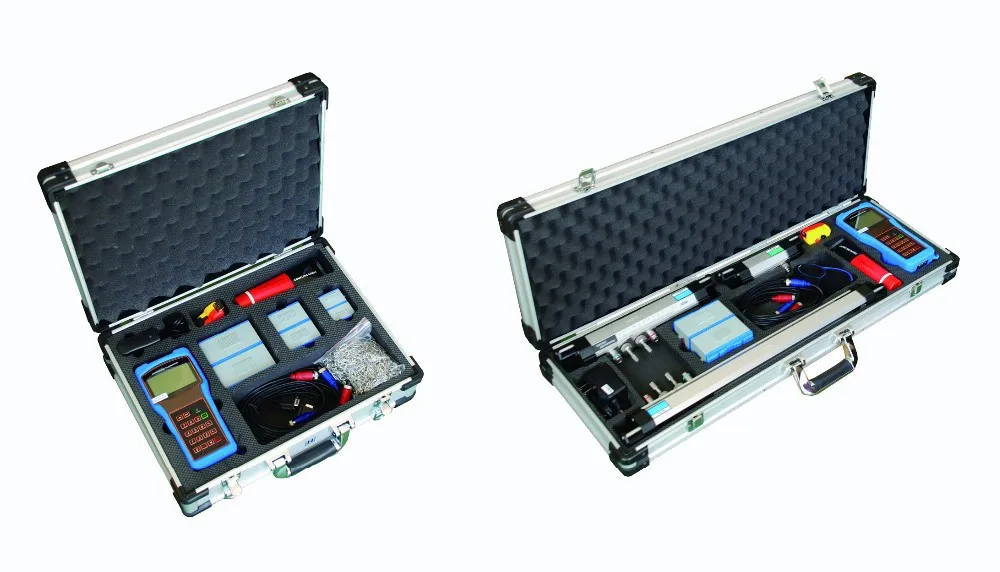

What will be included

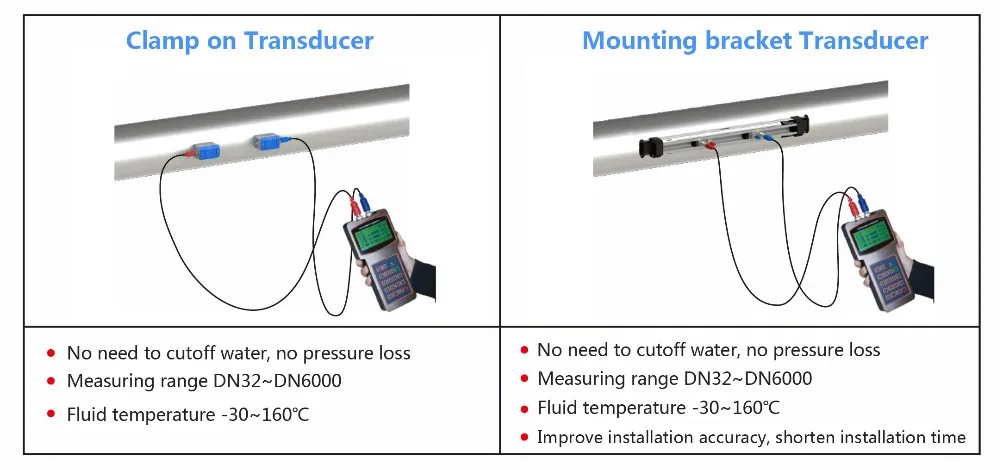

clamp on transducer packaging mounting bracket transducer packaging
1. HUF-2000H flow meter with batteries
2. Clamp on transducers or mounting bracket transducers.
3. Singnal cable
4. Data cable
5. Couplant
6. Charger
7. Ruler
8. Carring box
Advantages:
High accuracy measuring: Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
Wide measuring range: DN15~DN6000
Large capacity battery: Ni-MH battery, operate over 12 hours
Non-intrusive measuring: clamp on transducer, no pressure drop
Support multiple language menu: Chinese, English, Italian and other language can be customized.
Large LCD display: show varieties of results like accumulated flow rate, velocity, working status etc.
Built-in data logger: store over 2000 lines measuring data
Applicable pipe materials
Carbon steel, Stainless steel, PVC, Cast iron, Brass,Aluminum, etc.
Applications
ü Water supply Sewage treatment
ü Sea water desalination Pure water
ü Ultra-pure water Industrial circulating water
ü Diesel fuel, oil flow metering, etc
Ultrasonic flow meter HUF2000-H:
Items |
| Performance & Parameter |
Meter | Principle | Transit time ultrasonic flowmeter |
Accuracy | ± 1% | |
Display | 4×16 character LCD with backlight, support the language of Chinese, English and Italian | |
Signal Output | 1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms) | |
Data Interface | Insulate RS232 serial interface, upgrade the flowmeter software by computer | |
Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
Pipe Diameter | 15~6000mm | |

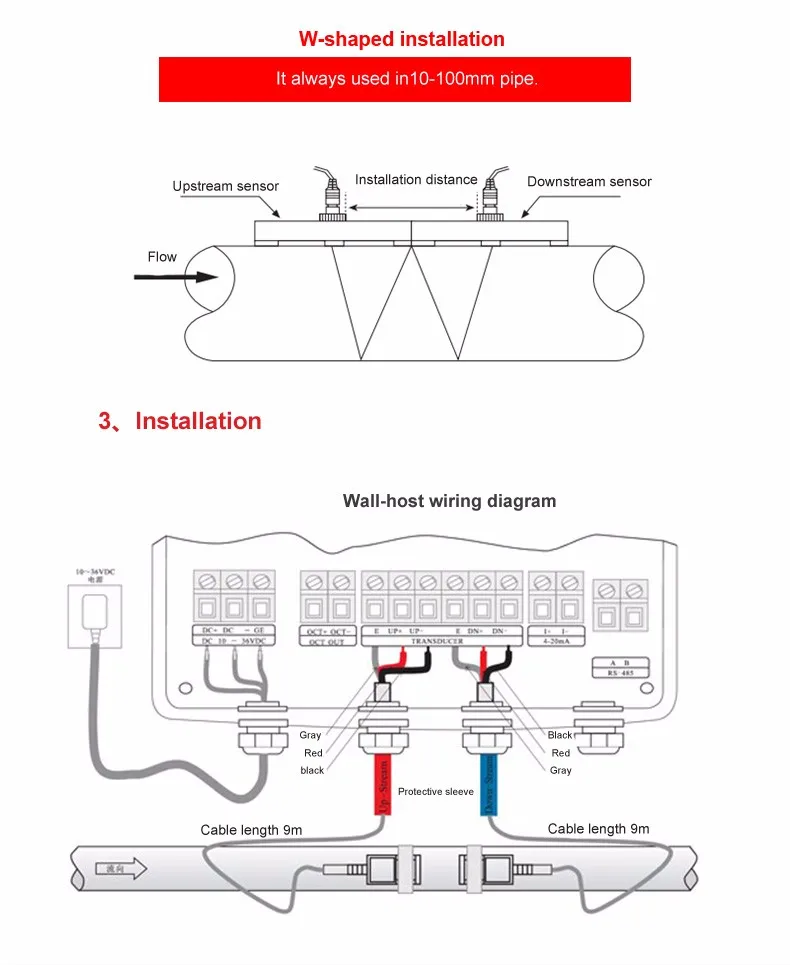

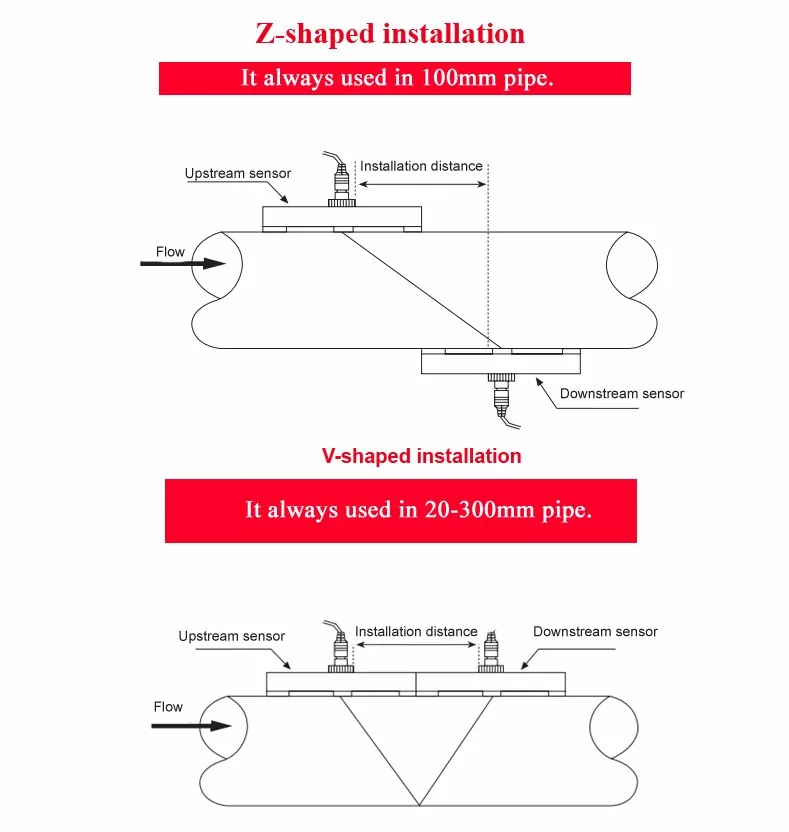

Straight Pipe | Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. | |
Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
Temperature | -30~160℃ | |
Turbidity | Less than 10000ppm and little bubble | |
Flowrate | 0 ~ ±7m/s | |
Working Environment | Temperature | main unit: -20~60℃; Transducer: -30~160℃ |
Humidity | main unit: 85%RH; Transducer protection level: IP67 | |
Power Supply | 3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation). Achieve to continuous measurement by connecting AC 90V - 260V adapter. | |
Power Consumption | 1.5W | |
Housing Material | Inflaming retarding ABS | |
Main unit Weight | 390g |

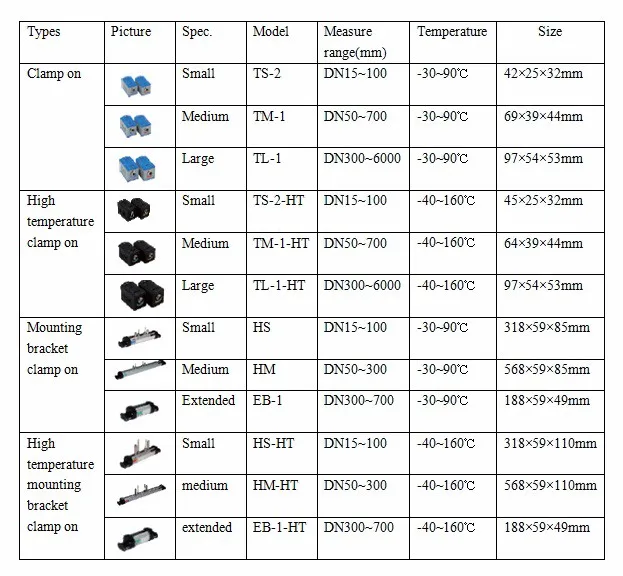

Optional Transducers:

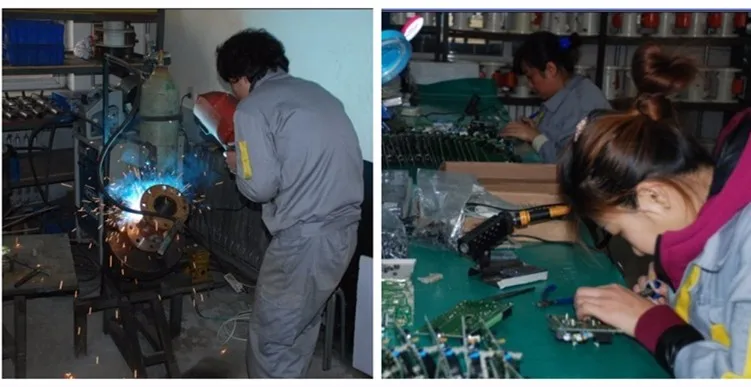

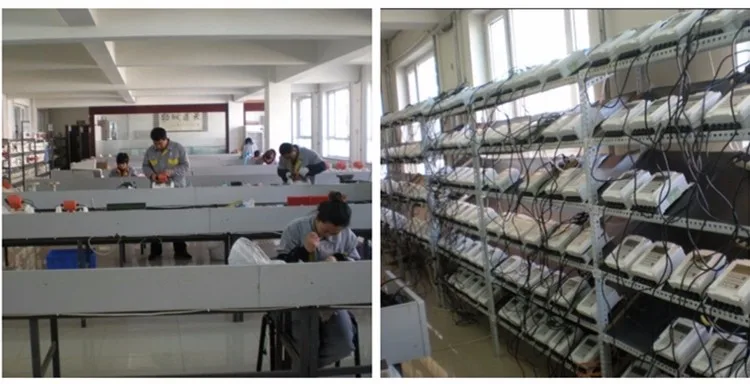

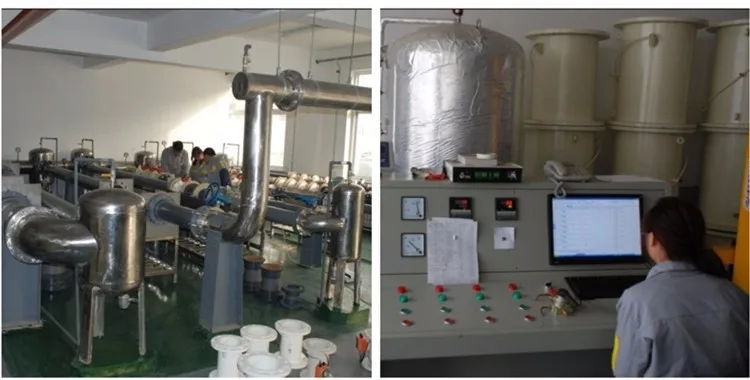

Flow Meter Prodution process
HOLYKELL always devotes ourselves in specialty manufacturing pressure sensors,pressure transducer,pressure transmitters,level sensors,level transmitters, ultrasonic sensors and now we can apply nearly all kinds of sensor techniques in the field of electric pressure measurement. Owing to the devotion to electric pressure measurement techniques, our enterprise holds inimitable core competition in the industry.
HOLYKELL pressure and level Instruments has been certified with ISO 9001 (2008) Enterprise Quality Management System by the United Kingdom Accreditation Service and our products are approved by many international authority institutions for the certificates of CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof. Our employees with the professional and high quality will make sure to provide you with high-quality products and superior services at any time and at any place. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
FAQ
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for all of items.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality ultrasonic level sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
