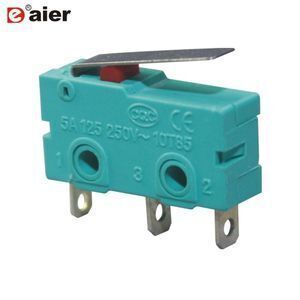

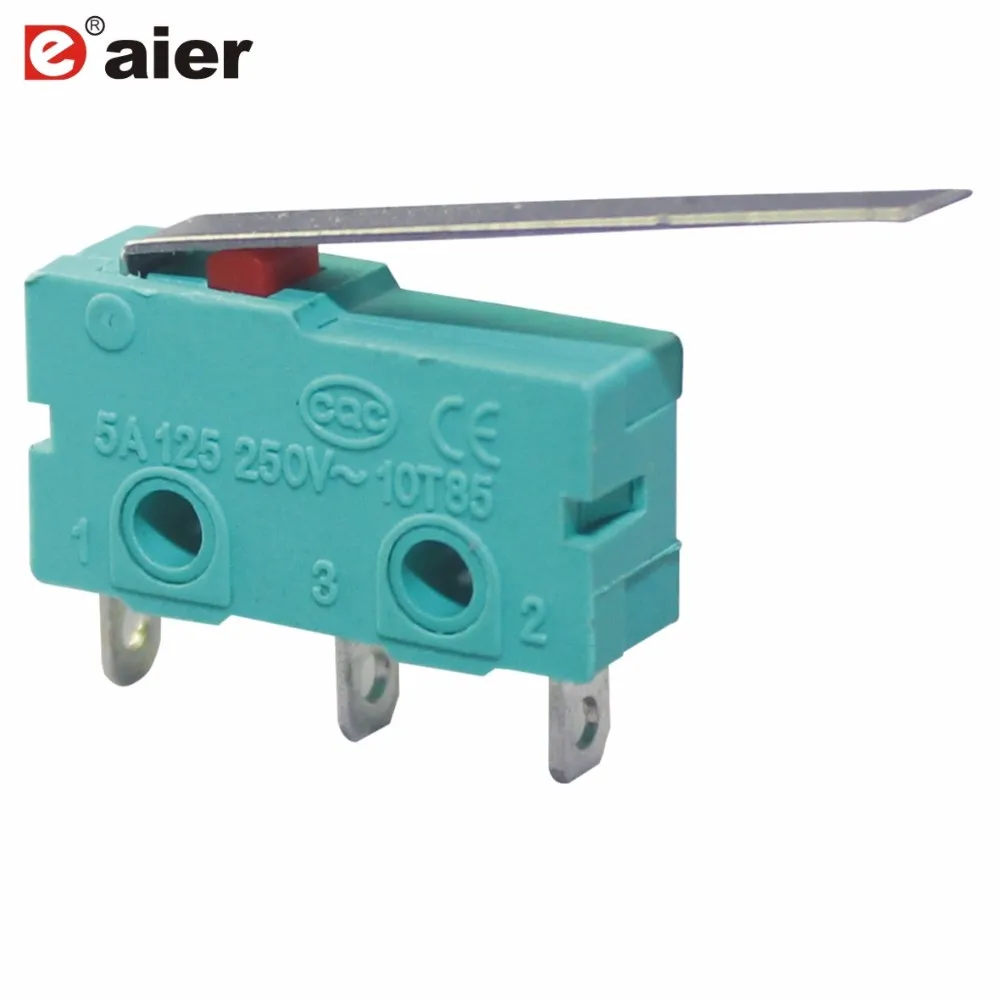

Miniature T85 SPDT Short Lever KW4 Micro Switch 5A 250V

Supplier: Yueqing Daier Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henry He
Price: $0.13 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Gross weight per batch:	0.5 KG;	Voltage:	125/250VAC;
Package size per batch:	26X15X8 cm;	Mechanical Life:	≥100,000 Cycles;
Max. Current:	10A;	Ambient Humidity Used:	<85% RH;
Contact Resistance:	≤50m Ω;	Selling Units:	Multiple of 100;
Max. Voltage:	250VAC;	Model Number:	KW4-Z2F;
Certificate:	CE,TUV,CQC;	Electrical Life:	100,000 Cycles;
Brand Name:	DAIER;	Protection Level:	IP40;
Delivery Detail:	7 days after payment;	Dielectric Strength:	1000VAC 1Minute;
Insulation Resistance:	≥100M Ω (500VDC);	Place of Origin:	Zhejiang China;
Current:	5A~10A;	Operating Temperature:	-25℃~+85℃;
Color:	Green/Black;	Package Type:	100pcs of Miniature T85 SPDT Short Lever KW4 Micro Switch 5A 250V;
Package Preview:	https://sc02.alicdn.com/kf/HTB1bpWljIj_B1NjSZFHq6yDWpXaK.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1EeiEjTqWBKNjSZFAq6ynSpXaY.jpg_640x640.jpg;

Product Description

Product Name	Miniature T85 SPDT Short Lever KW4 Micro Switch 5A 250V
Rating	5A~10A 125/250VAC kw4 micro switch 5a 250v
Housing	Nylon 66
Lever	Short lever
Terminal	Brass with sliver plated
Contact Configuration	SPDT
OEM or ODM	Available

Products Show

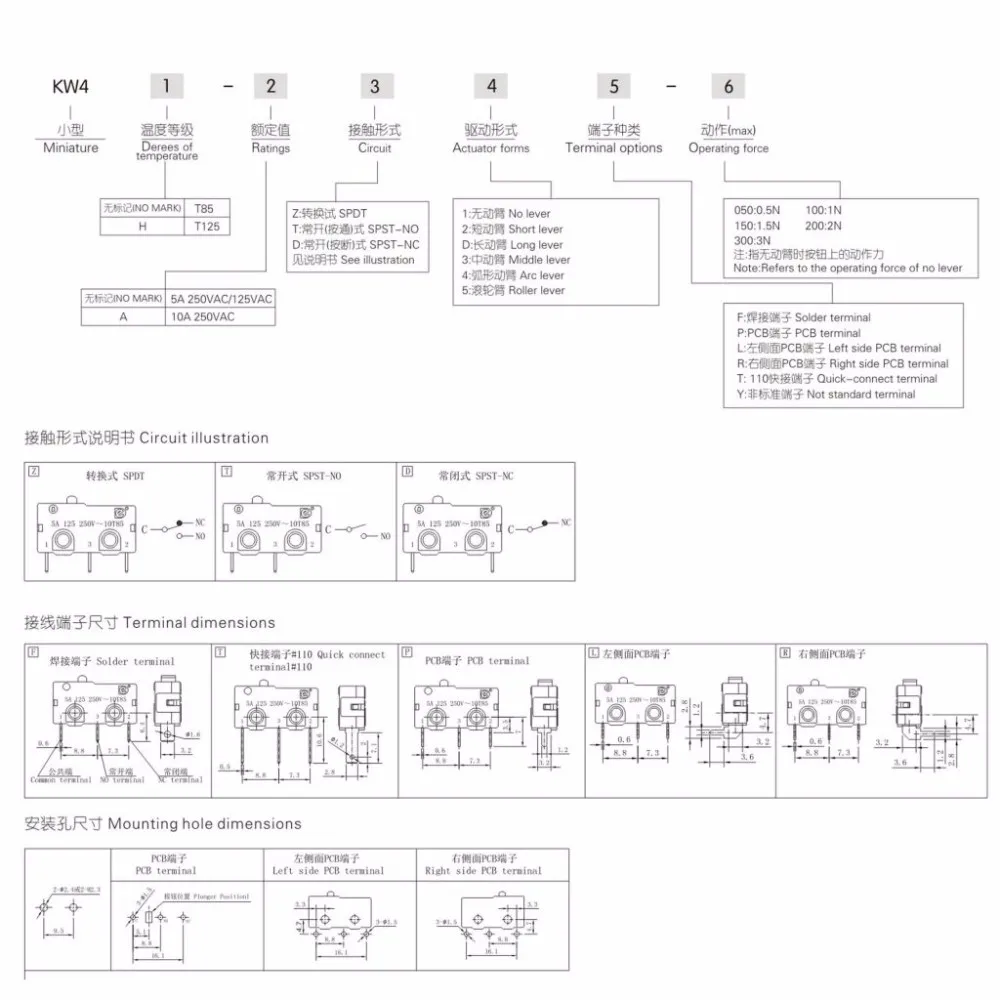

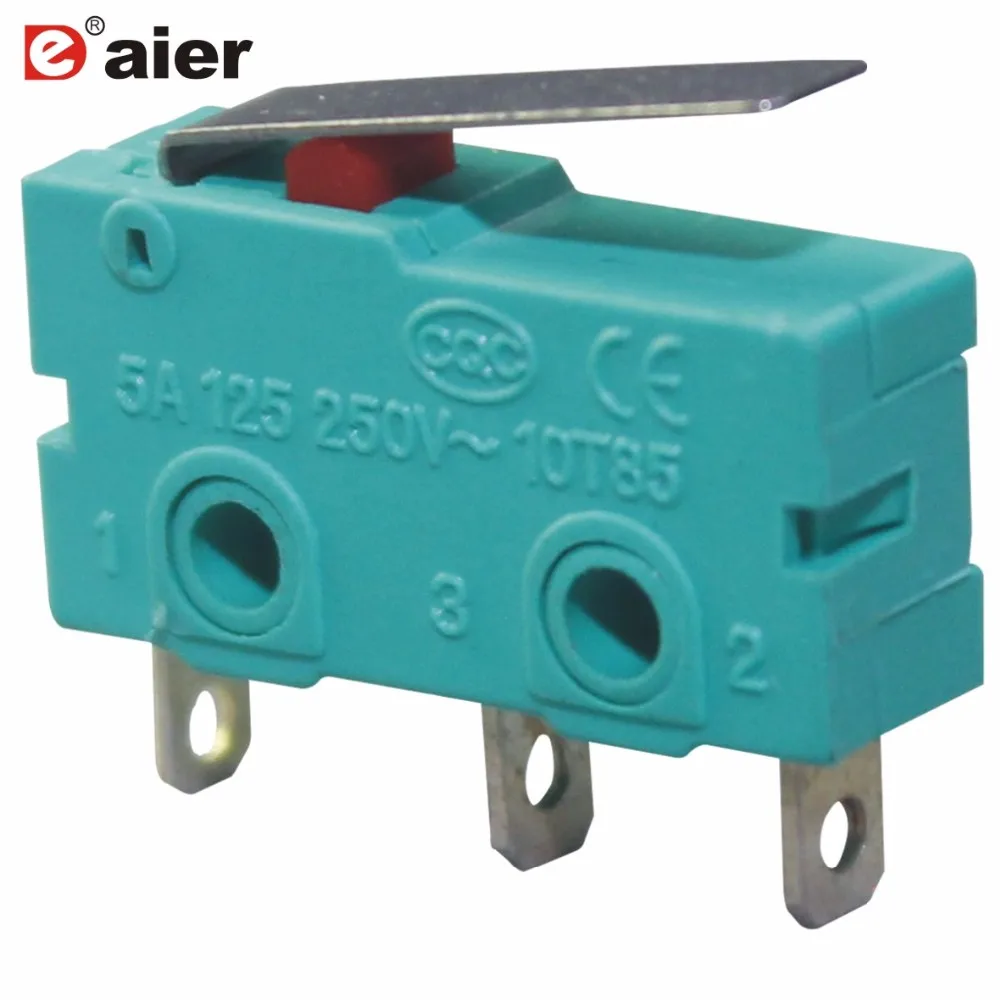

KW4-Z2F

Although small in size, KW4-Z2F small micro switch are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac).

KW4-Z2F

The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of KW4-Z2F small micro switch are less than 20 mm [0.78 in].
