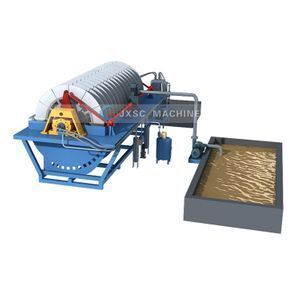

Mine Sludge Dewatering Concentrate Ceramic Disc Filtering Machine Rock Titanium Ore Process Plant Rotary Vacuum Filter

Product details
Filtering Area:25 m2;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Port:Xiamen/ Shenzhen/ Guangzhou/ Shanghai Port or as request;Capacity:0.6-1 m3/h;
Application:Ore;Filter Fan Qty:20pc;
Condition:New;Axis Motor:4kw;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;Packaging Detail:1. Standard parts packed in the wooden cases. 2.Big parts packed by plastic membrane. 3.The whole machine is loaded in the container.;
Drum Qty:5pc;Place of Origin:Jiangxi China;
Drum Dia:2100mm;Filter Cell Volume:3 m3;
After-sales Service Provided:Overseas service center available;Product name:Rotary Vacuum Filter;
Supply Ability:20 Set/Sets per Month Rotary Vacuum Filter;Brand Name:JXSC;
Stir Motor:5.5kw;
Related Products

Gold Wash Trommel Plant

100% response rate

Gold Centrifugal Concentrator

100% response rate

Gold Shaking Table

100% response rate

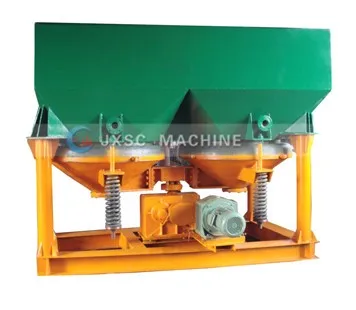

Separate Machine Jig Separator

100% response rate

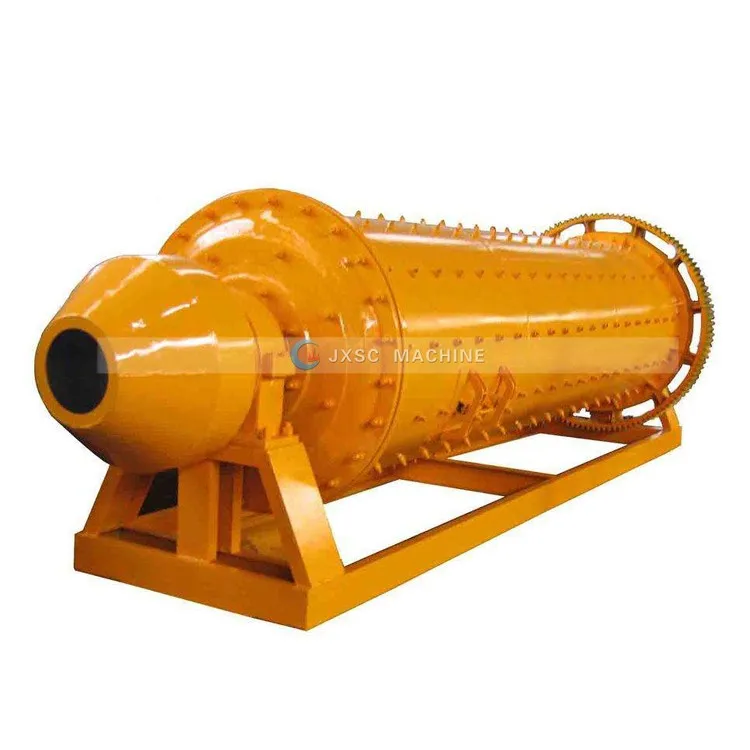

Ball Mill Machine

100% response rate

Flotation Separator Machine

100% response rate

Crusher Station Crushing Plant

100% response rate

Multi-cylinder Hydraulic Rock Stone Cone Crusher Price

100% response rate

Jaw Crusher Stone Crushing Machine for Sale

100% response rate

Product Description

Brief Introduction of Rotary Vacuum Filter:

disc filter is a mechanical and electrical machine, porous filter plates, automatic control, ultrasonic cleaning and other high-tech machine. unique design, compact structure, advanced indicators, performance is excellent, economic and social benefits significantly.

Can be widely used in non-ferrous metallurgy, chemical, pharmaceutical, food, environmental protection, power plants, coal treatment, sewage treatment and other industries.

Features of Rotary Vacuum Filter:

1. high vacuum (degree of vacuum 0.09 ~ 0.098MPa), low cake moisture.

2. filtrate solids content <50ppm. It can be repeatedly used to reduce emissions.

Compared with the conventional filtration equipment energy savings of about 90%, low energy consumption, low running costs.

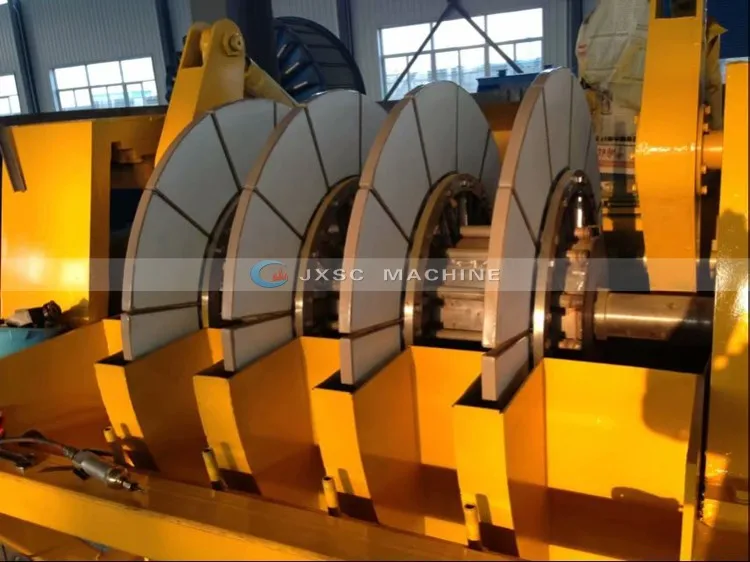

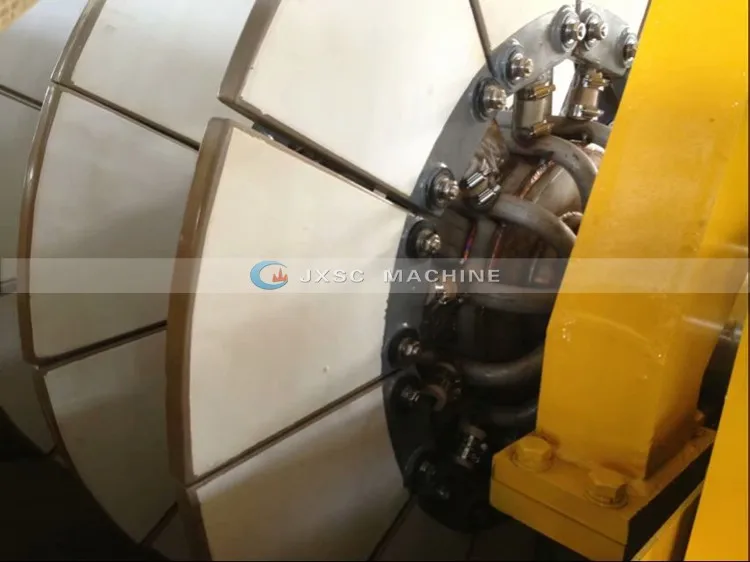

Main structure of Ceramic vacuum disc filter:

1. the rotor (roller)                        2. the distribution head
3. blender                                       4. scraper
5. the slurry tank                          6. the spindle gear
7. vacuum pump                          8. the filter
9. ultrasound equipment            10. water system

11. the gas system


Technical Data
Model
PGT10-2
PGT15-3
PGT20-4
PGT25-5
PGT30-6
PGT35-7
PGT40-8
PGT48-4
PGT60-5
Filtering Area (M2)
10
15
20
25
30
35
40
48
60
Drum Dia (mm)
2100
3100
Drum Qty (Pc)
2
3
4
5
6
7
8
4
5
Filter Fan Qty (Pc)
20
20
Filter Cell Volume(M3)
1.2
1.8
2.4
3
3.6
4.2
4.8
5.7
7.1
Axis Motor (KW)
4
5.5
7.5
Stir Motor (KW)
5.5
7.5
Discharge cake way
Inverted ventilation
Weight
10.4
11
11.6
12.2
12.8
13.4
14
18
21
Size (L*W*H)
2535
2920
3315
3705
4095
4485
4875
4175
5175
2480
4205
2690
3740
Capacity
0.6-1M3/H
Packing & Delivery
Factory and Fair

Jiangxi Shicheng Mine Machinery Factory

is a leading mining machinery manufacturer with over 30 years experiences, providing complete set processing equipments for Gold ore, Tin ore, Tungsten ore, Iron ore, Diamond, Coltan ore, Silica sand, Zircon sand, Black sand, Chrome ore, ect. As well as complete set small lab mining machines are available.

Main products: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier, as well complete set small laboratory mining equipments.

Main market: Africa, South Amercia, Europe, Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan, Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, Inida, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Austrilia,U.S, UAE,ect.

Our advantages and history


Korea client pay a visit to our factory

Poland client pay a visit to our factory

Austrlia customer come to our factory inspection

Indonesia customers come to our factory inspection

Our company also have rich exhibition experience, so far, we have attended Mining World Fair in Moscow, MINExpo Fair in Las Vegas, Mining Indonesia Fair, Electra Mining Africa in South Africa, EXPOMINA in Peru, MINING MYANMAR, EXPO Mongolia, BUILDMACEX Nigeria Exhibition etc. We can provide longer warranty than any other competitors. Looking forward can meet you in EXHIBITION!

Mining World Fair in Moscow 2018

Mining Indonesia Fair 2017

Mining Expo in Ghana

MINExpo Fair in Las Vegas

FAQ

1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.

Contacts

If you are interested in our products, please don't hesitate to contact us. You can tell me the following questions, so that we can send you accurate quotation soon, including extra discounts!

1. Which machine do you need? Like trommel scrubber, flotation machine, ball mill, magnetic separator, spiral chute, jig separator, shaking table, centrifugal concentrator, vibrating screen, vibrating feeder, etc.

2. What is your raw material plan to process? Like gold, diamond, tin, tintanium, tungsten, tantalite, manganese, coltan, zircon, rutile, monazite, copper or iron ore, etc.

3. The capacity you need? Like 100 tons per hour or 2000 tons per day.

4. Your contact information? Both email and phone number are essential, so that we can contact you easier.
