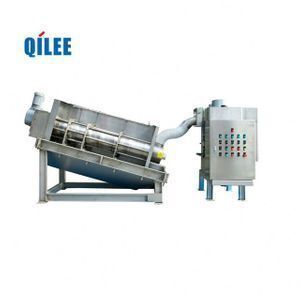

Industrial Sludge Dehydration Automatic Stainless Steel Screw Filter Press

Supplier: Shanghai Qilee Environmental Protection Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Tina
Price: $31647.00 /set
Min. Order: 1 set

Click here to contact

Product details

Treating Capacity(kg/h):	180~300;	Automatic Grade:	Automatic;
Brand Name:	QILEE;	Dimension(LWH):	345512951600;
Power(W):	1200;	Product name:	Screw Filter Press;
Water Demand for Cleaning(L/h):	216;	Operating Weight(kg):	4850;
Net Weight(kg):	3350;	Certification:	CE ISO;
Powder Consumption(kw):	3.75;	Outlet Position(mm):	585;
Applicable Industries:	Construction works ;	After-sales Service Provided:	Online support;
Dimensions(mm):	442021102250;	Voltage:	220V/380V;
Port:	Shanghai;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal / Escrow;
Sludge Flow(m3/h):	6~90;	Place of Origin:	Shanghai China;
Condition:	New;	Weight:	1350;
Warranty:	1 Year;	Supply Ability:	20 Set/Sets per Month Screw Filter Press;
Packaging Detail:	Industrial Sludge Dehydration Automatic Stainless Steel Screw Filter Press is packed in standard export packing;

Product Category

PRODUCT
CATEGORIES

Sludge dewatering machine

Belt filter press

Screw filter press

mbr wastewater treatment plant

Sludge deep dewatering system

Sludge drying machine

Sludge thickening machine

→ VIEW ALL

Screw filter press

MBR Wastewater Treatment Plant

Sludge deep dewatering system

Sludge drying machine

Product Introduction

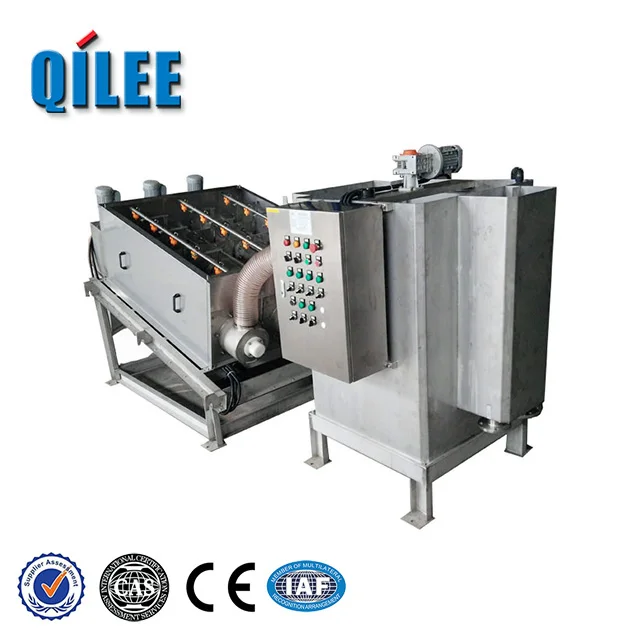

Industrial Sludge Dehydration Automatic Stainless Steel Screw Filter Press

Screw Filter Press Features:

1.Suitable for sludge dewatering of high/low consistency.
2.There is no need to worry about jam up. Reduce the cleaning water consumption.
3.The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
4.The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.
5.Automatically working for 24 hours, reducing the labor strength of workers.
6.The slow running speed of screw shaft reduces the power consumption and noise.
7. It is made with stainless, extending the service life.
8. It is convenient for daily maintenance.

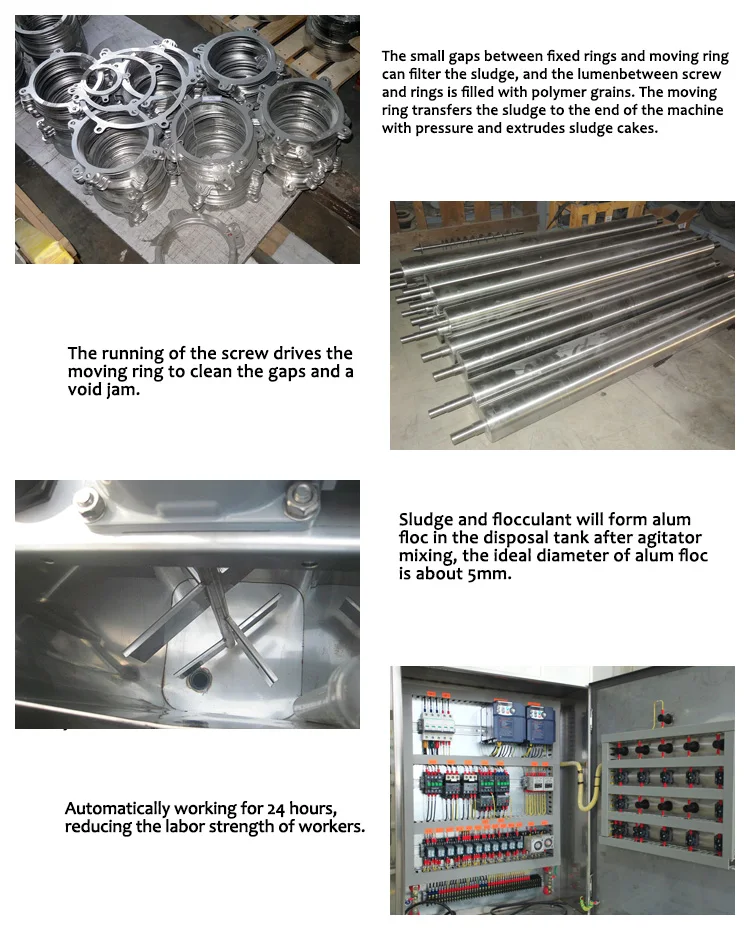

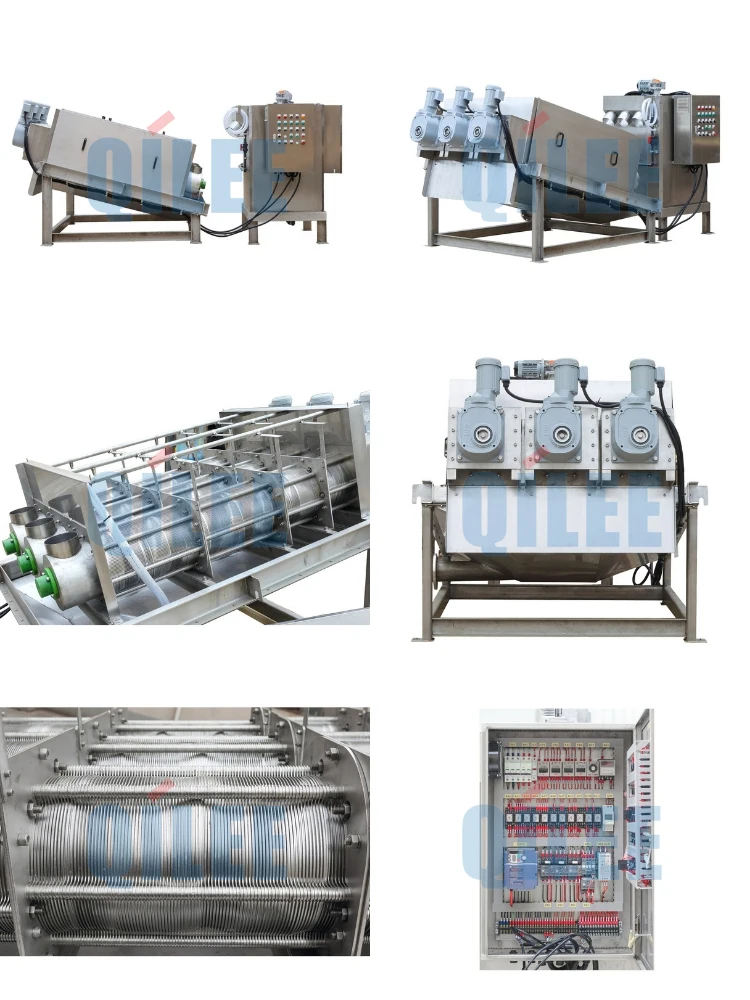

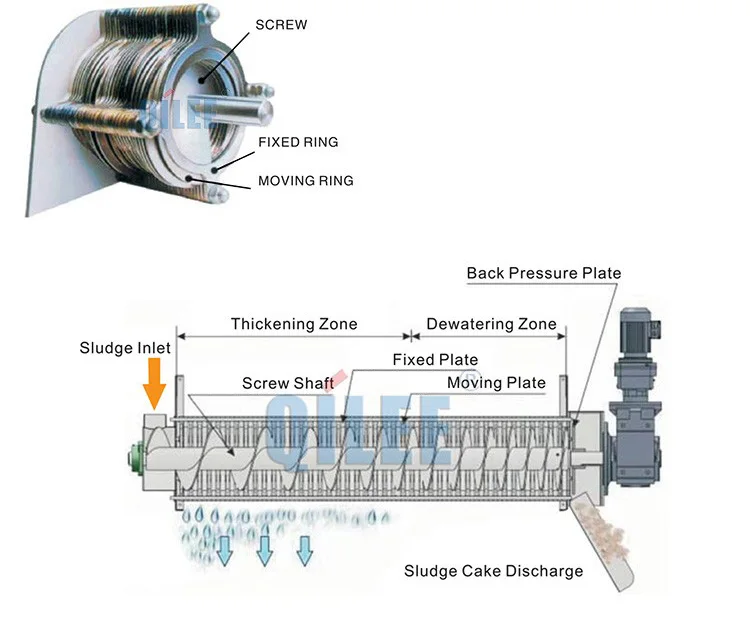

Screw Filter Press Structure:

The main part of the dehydrator is a filter device that a screw runs through the stacked fixed rings and moving ring.

The small gaps between fixed rings and moving ring can filter the sludge, and the lumenbetween screw and rings is filled with polymer grains. The moving ring transfers the sludge to the end of the machine with pressure and extrudes sludge cakes.

The running of the screw drives the moving ring to clean the gaps and avoid jam.

Screw Filter Press Application:

•City mixed raw sewage,Food & beverage industry,Chemical industry,Leather & tannery sewage,Paper & pulp sewage,Elecro-plating sewage,Pringting & dyeing sewage,Power plant,Petrochemical industry

Screw Filter Press Selection of models:

Model	Ds Standard Treating Capacity		Sludge Flow
Model	Low-high consistency		2000mg/L	5000 mg/L	10000 mg/L	20000 mg/L	25000 mg/L	50000mg/L
QLD101	~3kg/h	~5 kg/h	~1.5m3/h	~0.6 m3/h	~0.5 m3/h	~0.25 m3/h	~0.2 m3/h	~0.1 m3/h
QLD131	~5 kg/h	~10 kg/h	~2.5 m3/h	~2 m3/h	~1 m3/h	~0.5 m3/h	~0.4 m3/h	~0.2 m3/h
QLD132	~10 kg/h	~20 kg/h	~5 m3/h	~4 m3/h	~2 m3/h	~1 m3/h	~0.8 m3/h	~0.4 m3/h
QLD201	~16kg/h	~18 kg/h	~4.5 m3/h	~1.8 m3/h	~1.5 m3/h	~0.75 m3/h	~0.6 m3/h	~0.3 m3/h
QLD202	~18 kg/h	~30 kg/h	~9 m3/h	~3.6 m3/h	~3 m3/h	~1.5 m3/h	~1.2 m3/h	~0.6 m3/h
QLD301	~30 kg/h	~50 kg/h	~15 m3/h	~6 m3/h	~5 m3/h	~2.5 m3/h	~2 m3/h	~1 m3/h
QLD302	~60 kg/h	~100 kg/h	~30 m3/h	~12 m3/h	~10 m3/h	~5 m3/h	~4 m3/h	~2 m3/h
QLD303	~90 kg/h	~150 kg/h	~45 m3/h	~18 m3/h	~15 m3/h	~7.5 m3/h	~6 m3/h	~3 m3/h
QLD304	~100 kg/h	~200 kg/h	~50 m3/h	~10 m3/h	~20 m3/h	~10 m3/h	~8 m3/h	~4 m3/h
QLD352	~120 kg/h	~200 kg/h	~60 m3/h	~24 m3/h	~20 m3/h	~10 m3/h	~8 m3/h	~4 m3/h
QLD353	~180 kg/h	~300 kg/h	~90 m3/h	~36 m3/h	~30 m3/h	~15 m3/h	~12 m3/h	~6 m3/h

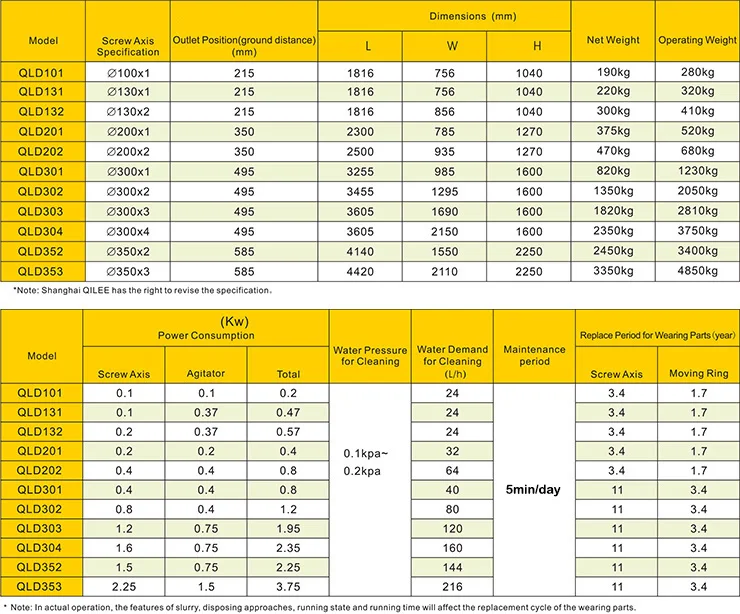

Screw Filter Press specifications & Operation Conditions:

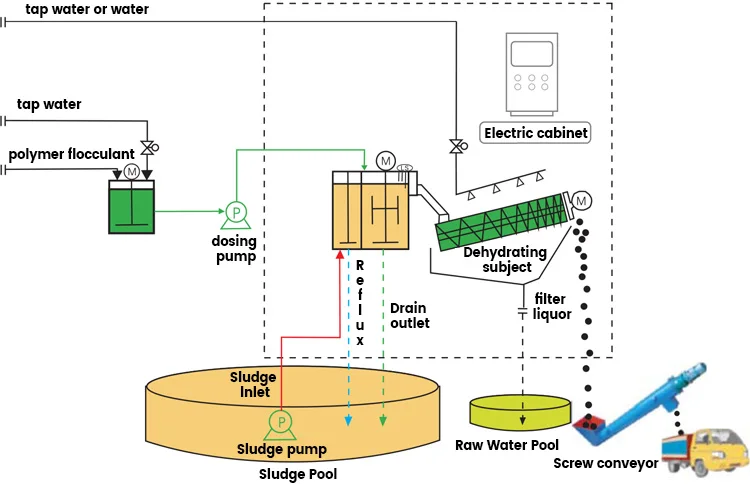

Screw Filter Press Flow Diagram:

1.The sludge in the sludge sump is carried to the measuring tank by sludge pump.And the sludge inlet volume can be controlled by adjusting the liquid level tube.
2.Sludge and flocculant will form alum floc in the disposal tank after agitator mixing, the ideal diameter of alum floc is about 5mm.
3.After gravity thickening in the thickening part, large amount of filtrate will discharge from the gaps between rings.
4.The thickened sludge is carried forward by the screw and dehydrated sufficiently under the pressure of the back pressure plate.
5.The dehydrated mud cake is discharged from the gaps between back pressure plates and screw body. The treating capacity of sludge and water content's rate of mud cake can be controlled by adjusting the running speed of screw and gaps between back pressure plates.

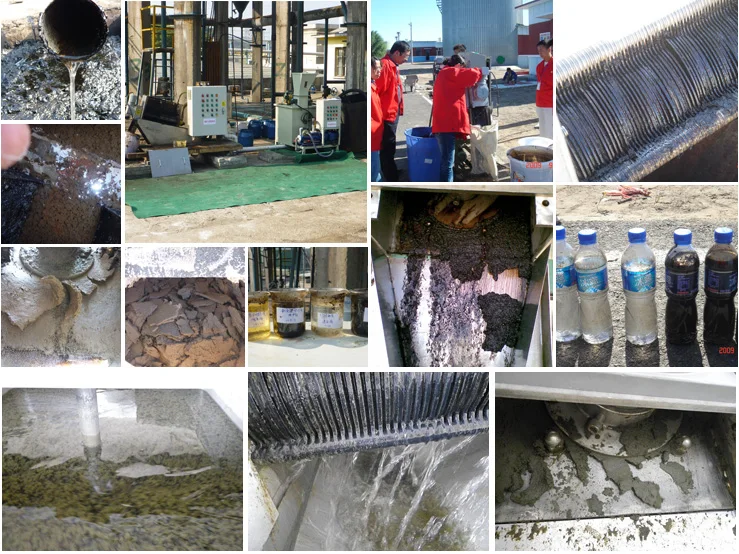

Screw Filter Press Cooperation case:

FAQ

What’s the application scope of Screw Filter Press ?

It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.

What’s the material of Screw Filter Press ?

It is SUS304.

What’s the equipment used together with Screw Filter Press ?

Sludge pump, polymer dosing pump, washing pump, air compressor.

How to choose the model?

Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
