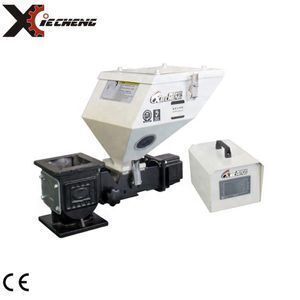

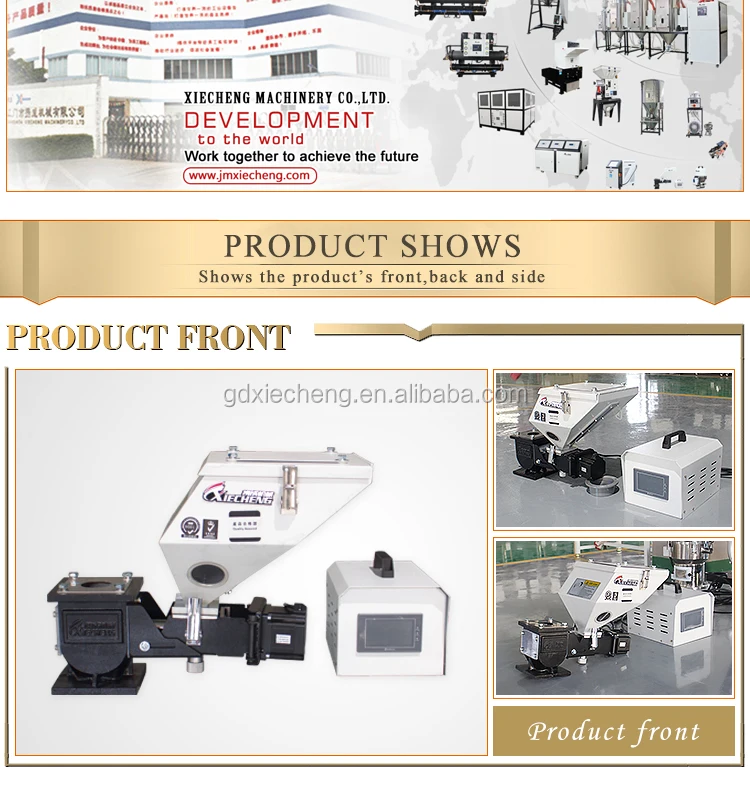

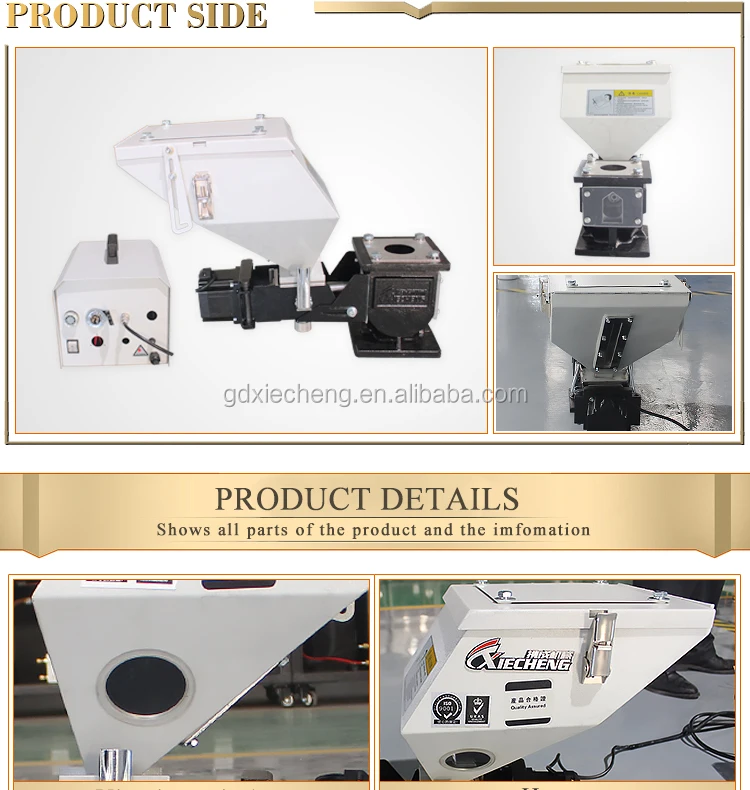

Small Screw Volumetric Doser for Powder

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Zhau
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant;	type:	single or double unit for customized;
Voltage:	220V50Hz1 Phase;	Automatic Grade:	Automatic;
Dimension(LWH):	290530580mm;	Certification:	CE;
After-sales Service Provided:	Online support,Video technical support;	Production Capacity:	1.1~32kg/hr;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	500 Set/Sets per Month;
Port:	Jiangmen/Shenzhen/Guangzhou;	Power(W):	60;
Brand Name:	XIECHENG;	mixer power:	0.9kw;
Place of Origin:	Guangdong China;	Warranty:	1 year;
Packaging Detail:	wooden case package;	Condition:	New;
control methord:	microcomputer;	Weight:	29kg;
storage capacity:	10L;	Application:	extruder ,injection machine;
After-sales Service Provided:	Overseas service center available;

Small Screw Volumetric Doser for Powder

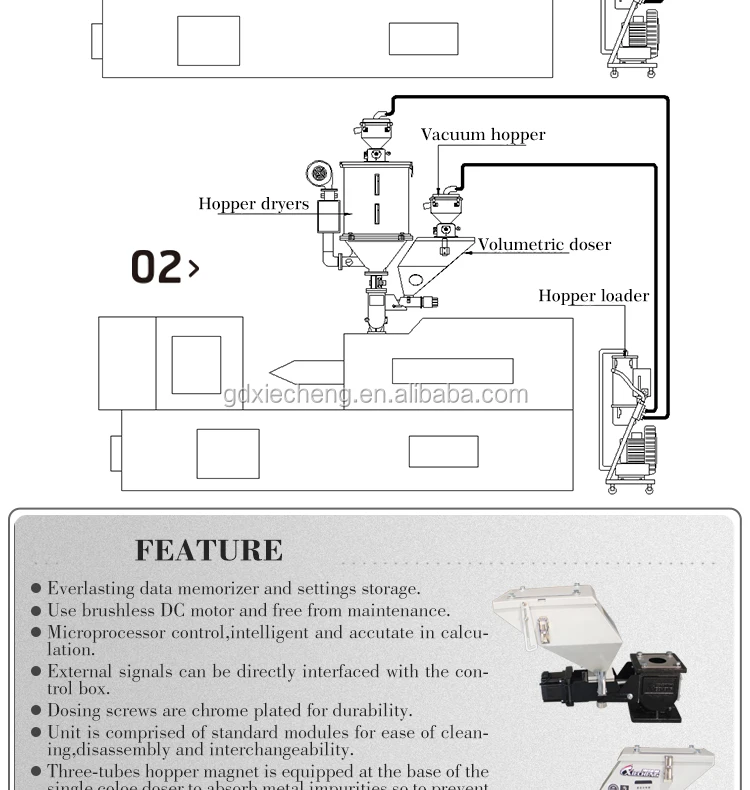

Everlasting data memorizer and settings storage.
Use brushless DC motor and free from maintenance.
Microprocessor control,intelligent and accutate in calculation.
External signals can be directly interfaced with the control box.
Dosing screws are chrome plated for durability.
Unit is comprised of standard modules for ease of cleaning,disassembly and interchangeability.

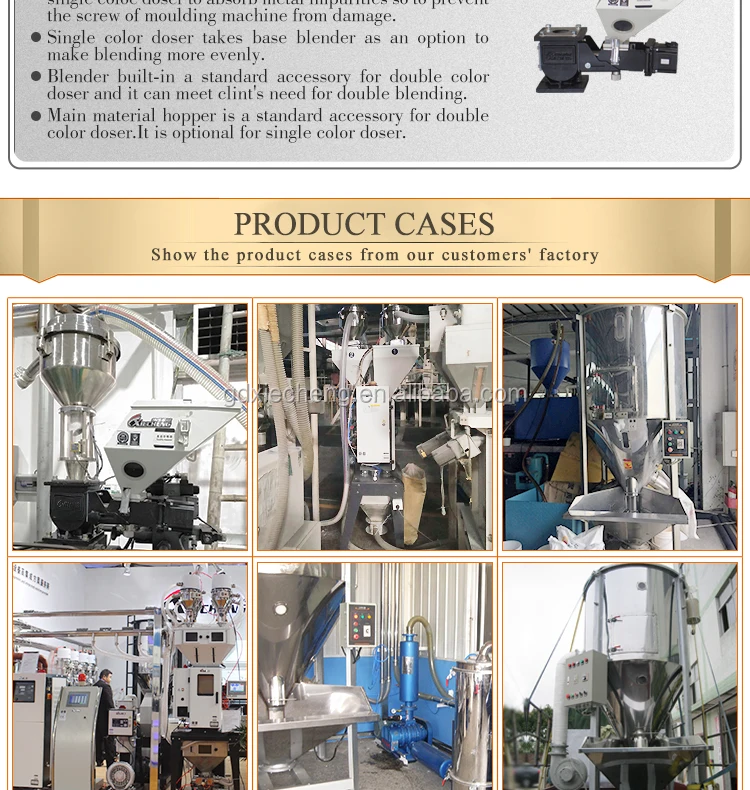

Three-tubes hopper magnet is equipped at the base of the single coloe doser to absorb metal impurities so to prevent the screw of moulding machine from damage.
Single color doser takes base blender as an option to make blending more evenly.
Blender built-in a standard accessory for double color doser and it can meet clint's need for double blending.
Main material hopper is a standard accessory for double color doser.It is optional for single color doser.

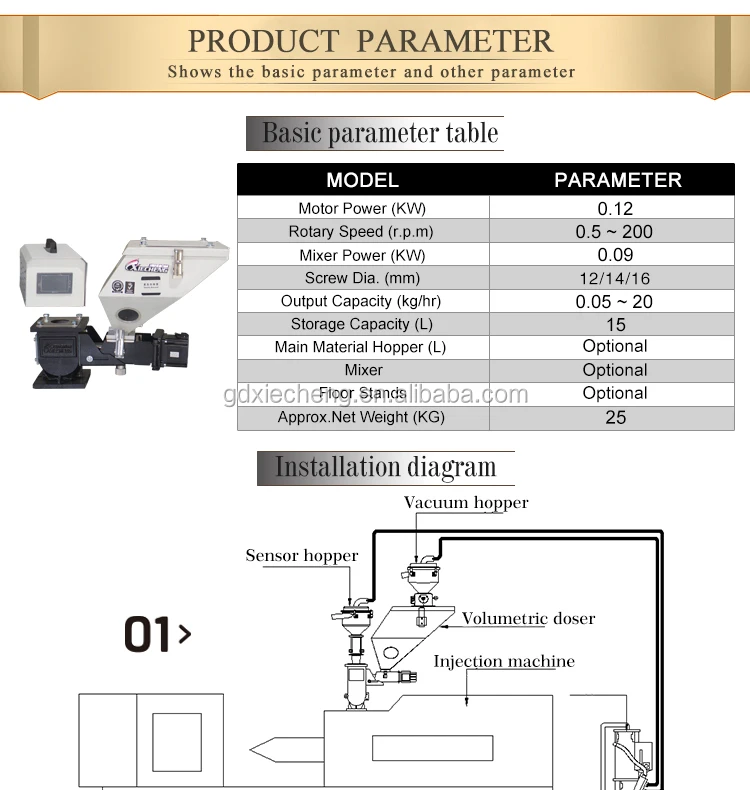

Specification

Model	Singel Color Unit							Double Color Unit
Model	SCM-30-16	SCM-30-14	SCM-30-12	SCM-100-16	SCM-100-14	SCM-100-12	SCM-D-30/30	SCM-D-30/100	SCM-D-100/100
Motor Power(kw)	0.06	0.06	0.06	0.06	0.06	0.06	0.06×2	0.06×2	0.06×2
Rev(r.p.m.)	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000
Mixer Power(kw)	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9
Screw External Dia.(mm)	16	14	12	16	14	12	**	**	**
Output Capacity(kg/hr)	1.1-32	1.1-20	0.3-10	0.5-15	0.2-8	0.1-4	*	*	*
Storage Capacity(L)	10	10	10	10	10	10	10	10	10
Gear Ratio	30:1	30:1	30:1	100:1	100:1	100:1	30:1/100:1	30:1/100:1	30:1/100:1
Main Material Hopper	Optional	Optional	Optional	Optional	Optional	Optional	norm	norm	norm
Mixer Power(kw)	Optional	Optional	Optional	Optional	Optional	Optional	norm	norm	norm
Floor Stands	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Dimensions
H(mm)	580	580	580	580	580	580	580	580	580
W(mm)	530	530	530	530	530	530	900	900	900
D(mm)	290	290	290	290	290	290	290	290	290
Approx.Net Weight(KG)	29	29	29	29	29	29	50	50	50
