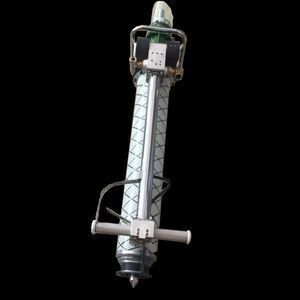

China coal Excellent and good price High Quality Coal Mining Pneumatic Jumbolter Rock Bolting Anchor Drilling Rig Machine

Supplier: Jiangsu Hengshuo Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Luna Chen
Price: $830.00 /set
Min. Order: 1 set

Click here to contact

Product details

model number:	MQT;	Weight:	55kg;
gas consumption:	4.5m;	Voltage:	380V;
Brand Name:	hengshuo;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	wooden case;	rotation speed:	≥560r/min;
Port:	shanghai;	Certificate:	IOS9000;
Place of Origin:	Jiangsu China;	After-sales Service Provided:	No overseas service provided;
power(w):	2.8kw;	Condition:	New;
Type:	Core Drilling Rig;	Supply Ability:	1000 Set/Sets per Month;
water flushing pressure:	0.6-1.2mpa;	rated rotate speed:	206r/min;

Product Description

MQT-130/2.8
Parameter name		Unit	Parameter
Working Pressure		Mpa	0.5
Rated Torque		N·m	130
Rated Speed		r/min	206
Leg Propulsion	Ⅰ	kN	5
	ⅠⅠ	kN	6.5
	ⅠⅠⅠ	kN	8
Maximum Output		kW	2.8
Idle Rotate Speed		r/min	>=560
1/2Idle Rotate Speed		r/min	280
Max Loading Torque		N·m	210
Air Consumption		m³/min	4.5
Noise Level	Sound Pressure Level	dB(A)	<=95
	Acoustic Power Level	dB(A)	<=112
Feeding Stroke	Ⅰ	mm	740+-50
	ⅠⅠ	mm	720+-50
	ⅠⅠⅠ	mm	730+-50
Flushing Water Pressure		Mpa	06-1.2

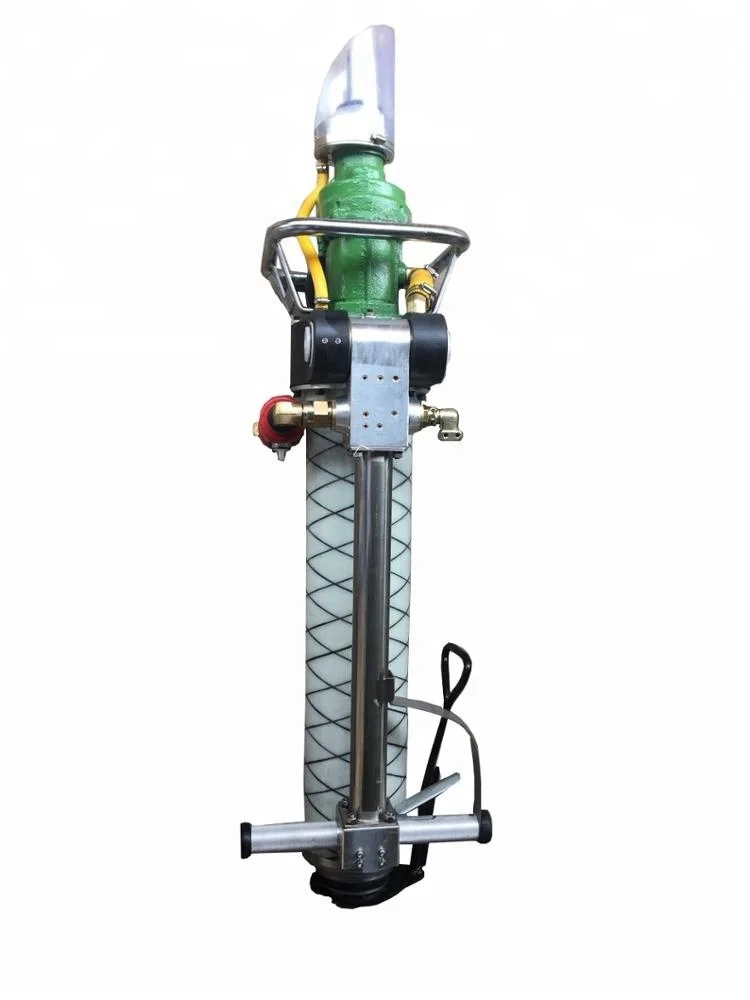

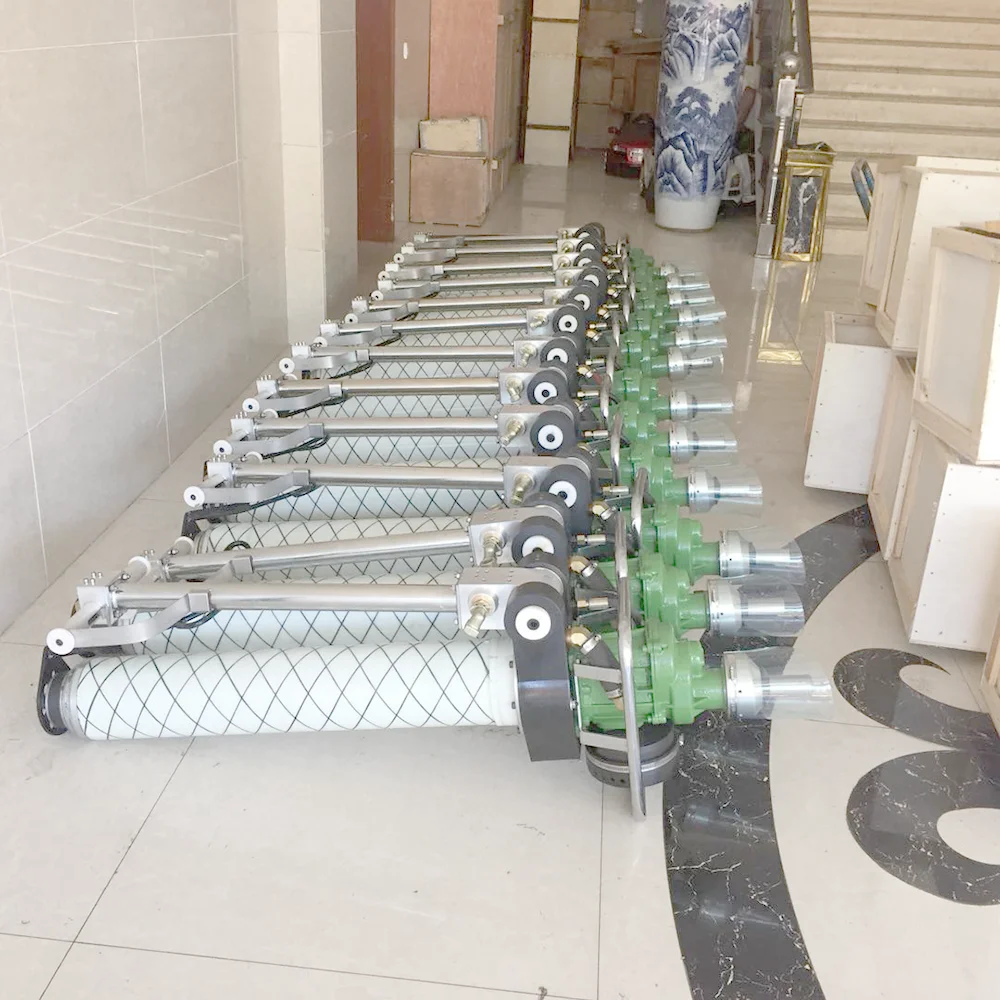

Product Show

Certificate

Main Features

1. The machine is small volume, light weight, simple operation, convenient maintenance of gear type pneumatic motor, running stability, high reliability of new glass fiber reinforced plastic pneumatic design, safety explosion-proof longer service life.

2. Rock hardness f10 is mainly used in coal mine coal lane, rock bolt and anchor cable supporting drilling, and stirring and install the resin anchor rod, anchor rope, for with damping nut bolt, anchor drilling machine can be directly to tighten the nut when mixing, realize the bolt mixing, a complete installation, and meet the requirements of initial prestressing force anchor.

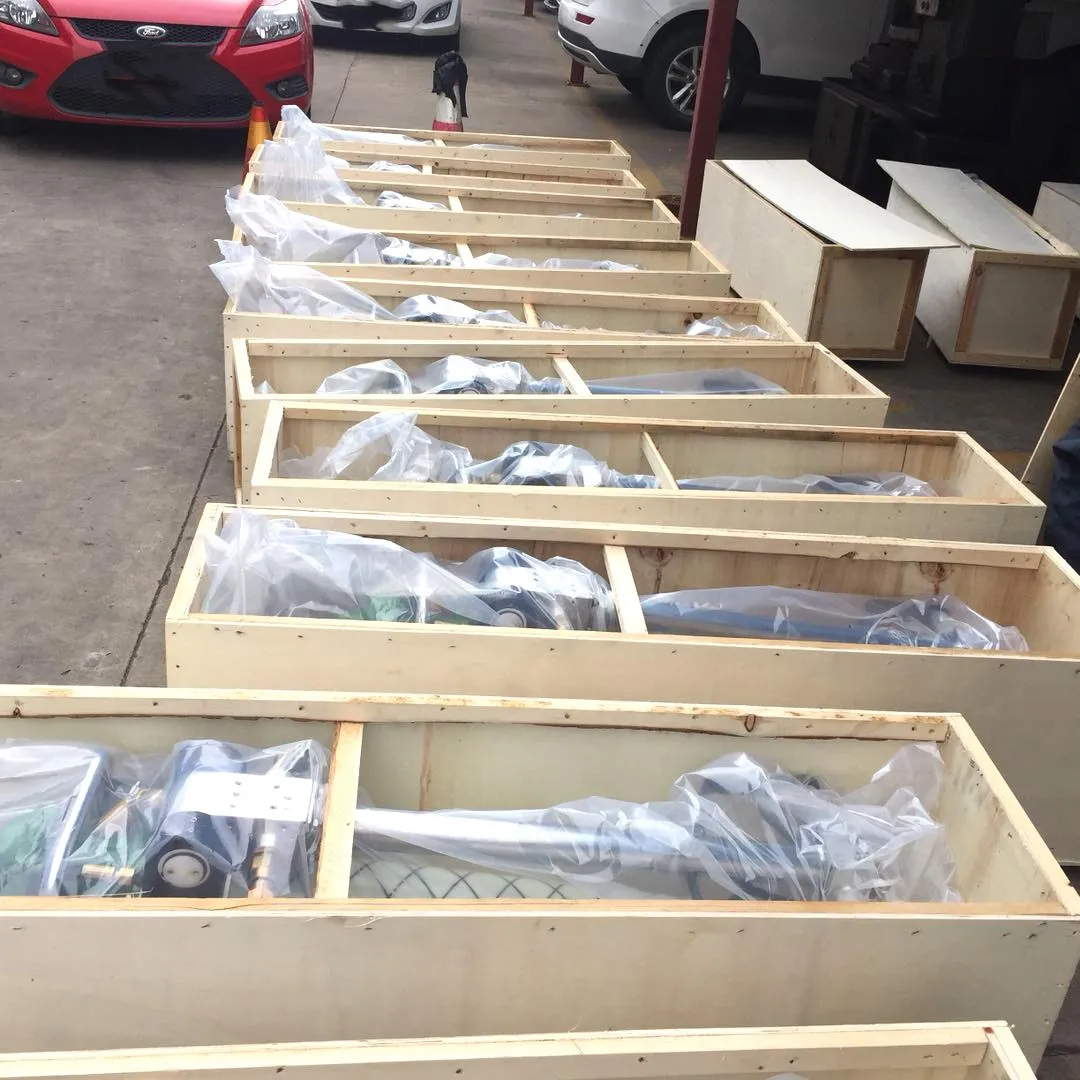

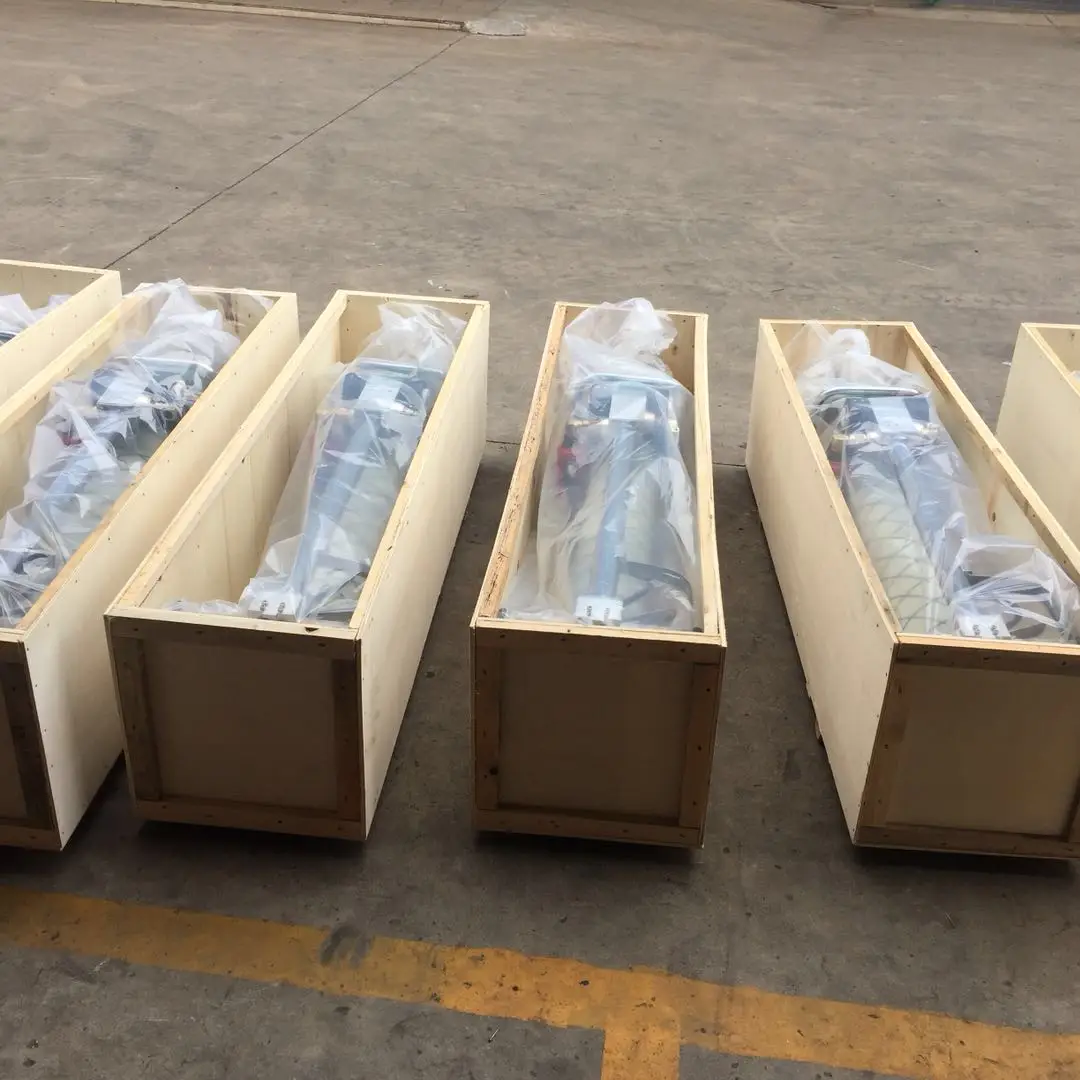

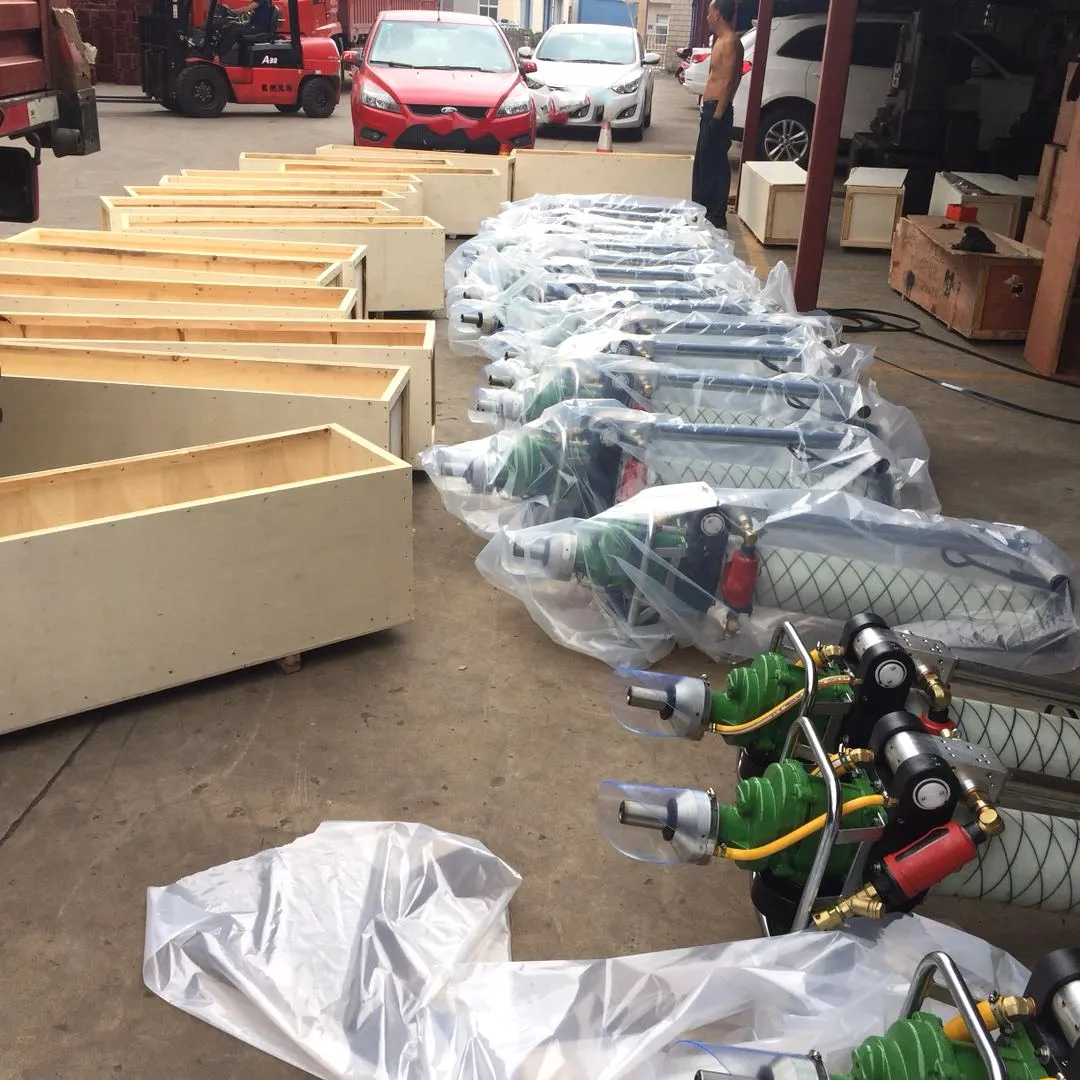

Packing

FAQ

Trade information:

1. Q: What’s the MOQ (minimum order quantity)?
A: One piece.

2. Q: What’s the best FOB price?
A: Our price is made as per your drawing specification as well as the purchasing quantity.

3. Q: What’s the lead time?
A: Normally, it takes around 60 days.

4. Q: Why the lead time is so long?
A: One gear part is made in around 20 machining processes. If every process takes 1 to 2 days, then it’s already at least 40 days. Not to say the forging and heat treatment time which take around 7 days min.

5. Q: What’s the payment term?
A: FOB Shanghai, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment. Of course, we may also negotiate it.

6. Q: What kind of packing can you provide?
A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.

7. Q: Which countries have you exported?
A: Germany, Denmark, Spain, Holland, Italy, Japan, India, Indonesia, etc.

8. Q: How do you make sure the quality of your products?
A: We will do a series of inspections (includes: 1st pc inspection, self inspection, final inspection)
We will provide you the reports 1 set for each batch/ shipment.
