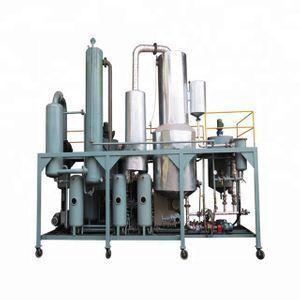

used motor oil Distill to diesel refinery machine

Supplier: Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Ms. Alan Zhang
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	used motor oil Distill to diesel refinery machine: two 40 feet high containers;	catalyst:	Exclusive Catalyst Compound;
Structure:	vertical;	Material:	Q245R/Q345R boiler steel;
Operation:	Waste Oil Recycling Machine;	Brand Name:	JINZHEN distillation machine;
Condition:	New;	After-sales Service Provided:	Field installation, commissioning and training;
capacity:	1/2/3/5/8/10/15T/20T;	Weight:	25tons;
Place of Origin:	Henan China (Mainland);	Dimension(LWH):	customized;
Function:	Oil Filter;	Power(W):	20kw;
Port:	Qingdao Tianjin Shanghai Guangzhou;	Fuel:	coal,wood,natural gas;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Cooling way:	Water cooling;
Raw material:	tyre oil, plastic oil, waste oil, mix oil, crude oil, raw oil;	Certification:	CE, ISO9001;
Type:	Waste Oil Regeneration System;	Warranty:	1 years;
Voltage:	220/380V/440v;	Supply Ability:	8 Set/Sets per Month oil distillation machine;
Flow:	As per requirement;

used motor oil Distill to diesel refinery machine

Welcome to JINZHEN MACHINERY

Product Description

Our oil distillation plant can process tire crude oil, plastic crude oil and waste engine oil into diesel. It is the latest design which is unique in China market.

The oil rate is 85% to 95%.

The fuel oil can be used for diesel generator, boiler, trucks, tractors and agricultural vehicles etc.

Our oil distillation plant has some advantages.

1. Vertical reactor with indirectly heating system is very efficient and reasonable. It is easy to clean the bottom of reactor.

2. Indirect heating will prolong the service life of reactor

3. After finished one batch oil distillation, we will pump the oil to odor and color removal tank. Then can start to pump fuel oil to reactor for another batch. So we say it is continuous working.

4.Better oil quality.

The oil color can be darker or lighter according to customers’ requirement.

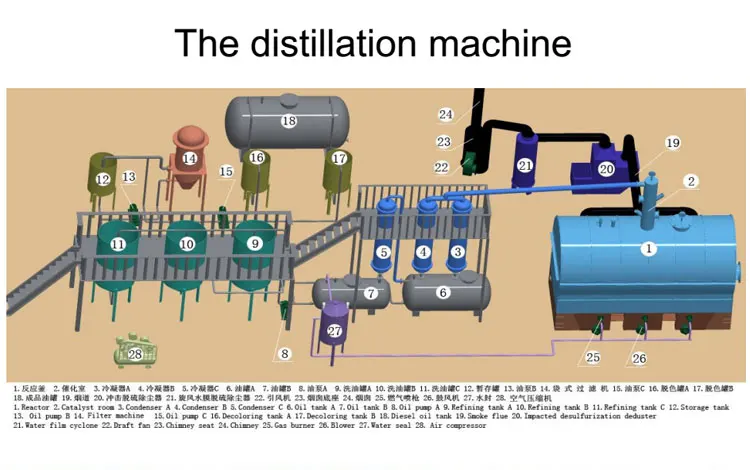

The 3D flow chart of oil distillation plant

Refining (Distillation) plant works as follows:
1. Pump waste oil into distillation reactor by oil pump.
2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees.
3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system.

Parameters of the waste oil distillation to diesel oil:

Item	Contents
Input-Raw Materials	Waste engine/sludge oil /Plastic pyrolysis oil/Tire pyrolysis oil/Lubrication oil
Average out-put oil rate	85%-90%
End products	Diesel oil, waste gas, slag
Structure form	Horizontal
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Model(Diameter*Length)(mm)	Reactor size	Capacity
	D1500*L3000	3 Ton/Day
	D2000*L5000	5 Ton/Day
	D2800*L6000	10 Ton/Day
Material of reactor	Q245R&Q345R boiler plate
Thickness of reactor	16mm, 18mm
Mode of cooling	Circulating water cooling
Space needed	Length: 30m, Width :10 m at most
Power consumption	Average 15 KW/h

<<< Get Categories & Factory Price Now >>>

Company Information

Xinxiang Cty Jinzhen Machinery Manufacturing Co., Ltd is a private enterprise with more than 10 years of development in HENAN. At present, the company has product research, manufacturing, market trinity comprehensive strength. The main products cover all over the world. The company has always been adhering to the “high-tech, high starting point, high quality, high speed’ as the general policy of science and technology is popular the factory. The enterprise overall through ISO9001:2008, CE, BV, etc.

My company is located in the central plains transportation center - Xinxiang, covers an area of 100 mu(96000 square meter), with one modern laboratory, large-scale production workshop and other production of experimental base. Have more than 100 management personnel, sales personnel and technical personnel.

High quality products and warm service warmly welcome your arrival!

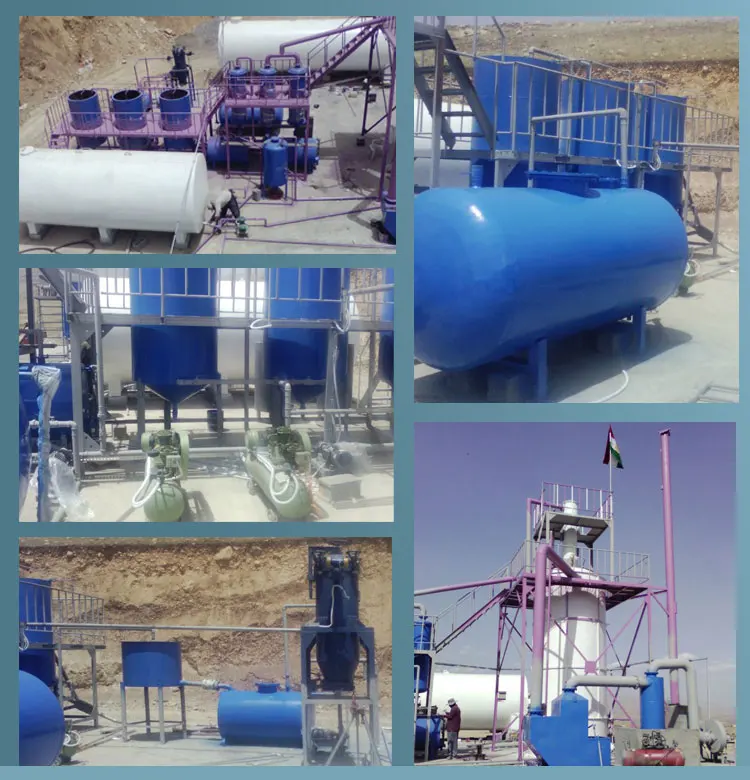

Client from the world wide for the waste oil refinery

<<< Get Categories & Factory Price Now >>>

Packaging & Shipping

Packing Details : container or frame.

Delivery Details : 25-35 days after receiving the deposit.

Our Services

1. Quality warranty period: Jinzhen’s plants enjoy one-year guarantee, after which, we still offer lifelong technical support for your plant.

2. Our After-sales Service Department will pay you regular visits for any feedback, opinions or suggestions.

3. For any tiny plant problem you cannot solve after one-year guarantee finishes, please feel free to Email or call our salespeople, who will wholeheartedly help you solve your problem.

4. For problems that cannot be solved via email or phone-call, our engineers may be dispatched to do plant maintenance and debugging (which usually takes as short as one day) until your plant resumes normal operation.

5. For the damage caused by the users, our company provides the parts and accessories with cost price.
