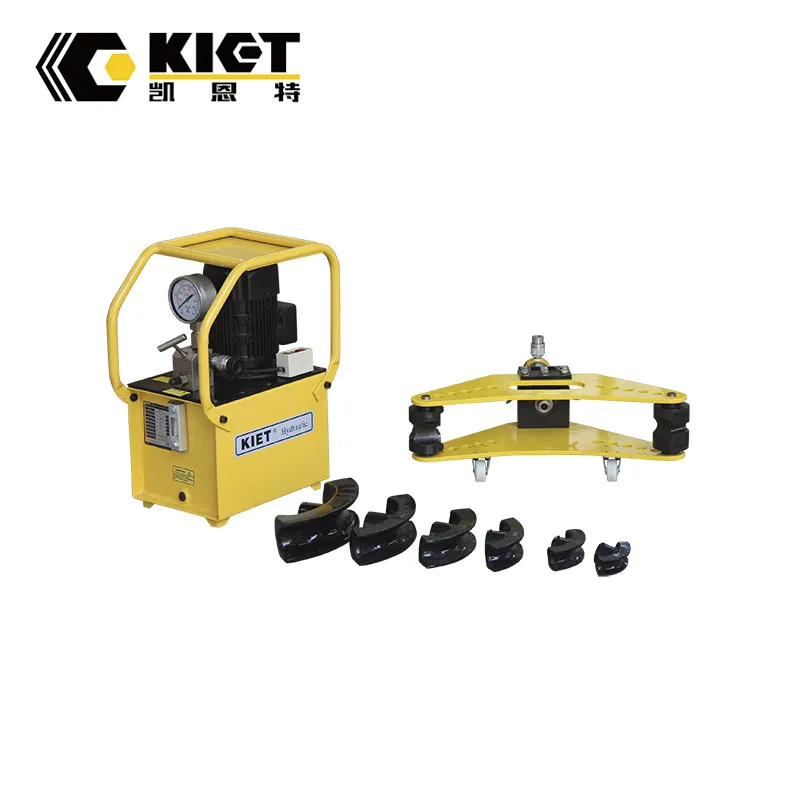

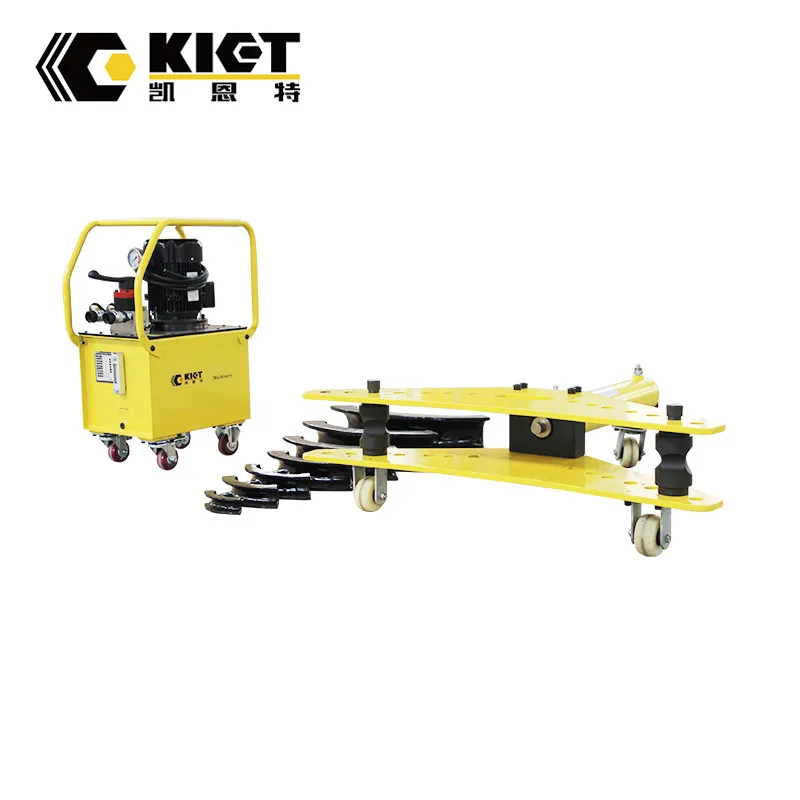

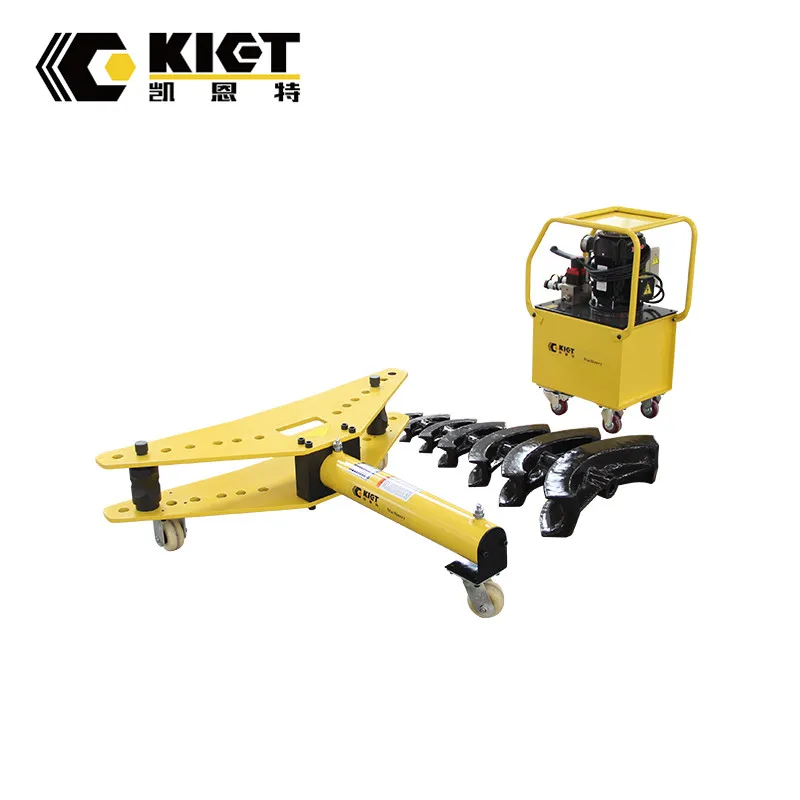

4 Inch Portable Split Type Electric Tube Bender

Supplier: Jiangsu Canete Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr China KIET
Price: $1450.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Shanghai;	Pipe diameter:	4"-6";
Warranty:	1 year;	Color:	yellow or customized;
Model:	KET-DWG;	Payment Terms:	L/C,T/T,Credit Card;
Packaging Detail:	The package of Pipe Bender: plywood case;	Place of Origin:	Jiangsu China;
Maximum bending degree:	90°;	Description:	Electric Hydraulic Pipe Bender;
Package:	Plywood Case;	Supply Ability:	100 Set/Sets per Month;
Working pressure:	70MPa;	Bending thickness range:	≤4mm;
Usage:	pipe bending;

4 Inch Portable Split Type Electric Tube Bender

1. Separately designed between the bender and pump, easy to carry on site.

2. Widely used in smooth wninkde-free bending for water pipes, wire pipes, gas pipes, pipe,
especially for thick-walled pipes
3. Size 1/2"-2" pipes can be bent to 90° at a time, size 2"-6" must move the pipe to bend.

Product Description

Features:

1. A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic
Hose, Molds, Fied plug-pin.
2. Double acting Hydraulic Cylinder, quickly reset, improving the bending eficiency,
3. Piston plated hard Cr to prevent scratches and corson, surface painted to Improve the resistance of corrison
4. Lightweight heat-treated steel molds and steel frame make bending pipe smooth
wrinkle-free
5. Size 4"-6"Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic
Cylinder which reset quickly, works more efficiently with Electric Pump

Product Parameter

Model	Pipe Diameter(mm)	Bend Radius(mm)	Thickness (mm)	Capacity(KN)	Motor Power(Kw)
KET-DWG-60	22-60	4*Pipe Diameter	≤4	100	0.75
	2 pcs Die, 2pcs Pin, Bend tires:22 27 34 42 48 60
KET-DWG-76	27-76	4*Pipe Diameter	≤10	300	0.75
	2 pcs Die, 2pcs Pin, Bend tires:27 34 42 48 60 76
KET-DWG-108	27-108	4*Pipe Diameter	≤10	300	2.2
	2 pcs Die, 2pcs Pin, Bend tires: 27 42 48 60 76 89 108
KET-DWG-159	76-159	4*Pipe Diameter	≤10	500	2.2
	2 pcs Die, 2pcs Pin, Bend tires:76 89 108 133 159
