SWG-60 Portable Split Type Hydraulic Pipe Bender
-
Supplier: Jiangsu Canete Machinery Manufacturing Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr China KIET -
Price: $931.00 /set -
Min. Order: 1 set
| Model: | KET-SWG-60; | Weight: | 52KG; |
| Selling Units: | Single item; | Description: | Hydraulic Pipe Bender; |
| Package Type: | The package of SWG-60 Portable Split Type Hydraulic Pipe Bender: plywood case; | Single gross weight: | 72 KG; |
| Place of Origin: | Jiangsu China (Mainland); | Bending thickness range: | ≤4mm; |
| Pipe diameter: | 22-60mm; | Maximum bending degree: | 90°; |
| Package: | Plywood Case; | Color: | yellow or customized; |
| Working pressure: | 70MPa; | Single package size: | 110X85X41 cm; |
| Warranty: | 1 year; |

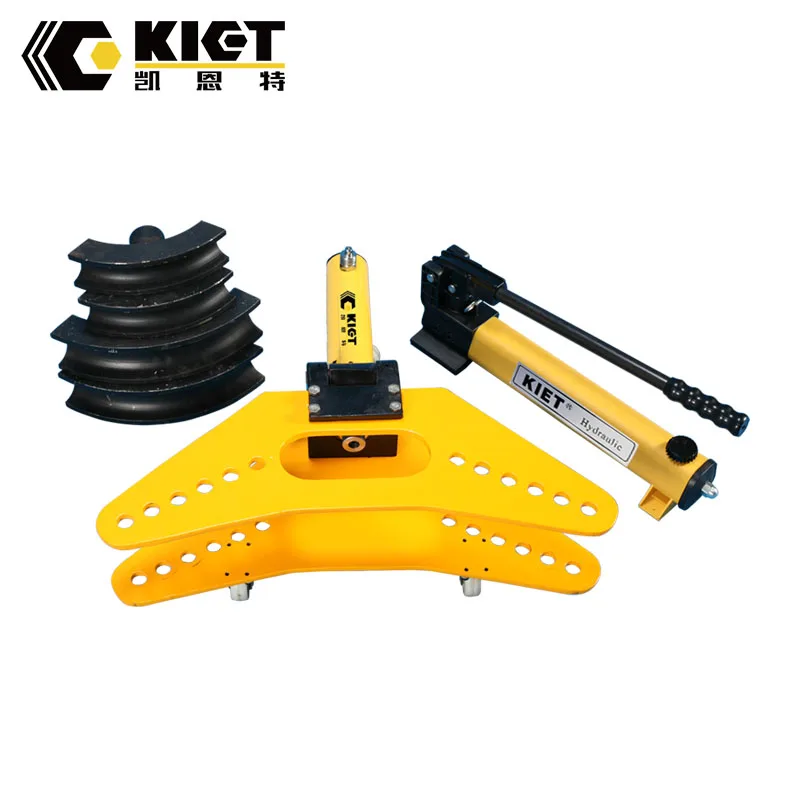

Portable Split Type Hydraulic Pipe Bender
Features:
1. A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic
Hose, Molds, Fied plug-pin.
2. Double acting Hydraulic Cylinder, quickly reset, improving the bending eficiency,
3. Piston plated hard Cr to prevent scratches and corson, surface painted to Improve the resistance of corrison
4. Lightweight heat-treated steel molds and steel frame make bending pipe smooth
wrinkle-free
5. Size 4"-6"Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic
Cylinder which reset quickly, works more efficiently with Electric Pump
Product Parameter
Model | Pipe Diameter(mm) | Bend Radius(mm) | Thickness | Capacity(KN) |
KET-SWG-60 | 22-60mm | 4*Pipe Diameter | ≤4 | 100 |
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
KIET provides one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.
