Packaging Detail: | Wooden Box for KIET Brand SSB Series High Pressure Electric Hydraulic Pump Hydraulic Power Pack Unit; | Accessories available: | hydraulic hose; |
Output flow rate: | 1-9 L/min; | Oil tank material: | Ti-aluminum alloy; |
Payment Terms: | L/C,T/T,Credit Card; | Weight range: | 25-160 kg; |
Spare parts available: | Yes; | Type: | Hydraulic Power Units; |
Certification: | CE, ISO9001:2008; | OEM: | Yes; |
Model Number: | ZEM, ZEE; | Color: | customized; |
Supply Ability: | 3000 Set/Sets per Month; | Brand Name: | KIET; |
Place of Origin: | Jiangsu China; | High pressure: | 700 bar; |
Port: | Shanghai; | Low pressure: | 100 bar; |

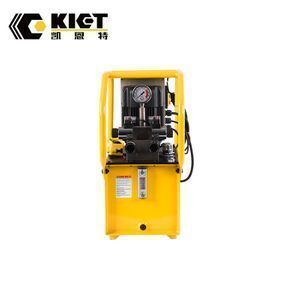

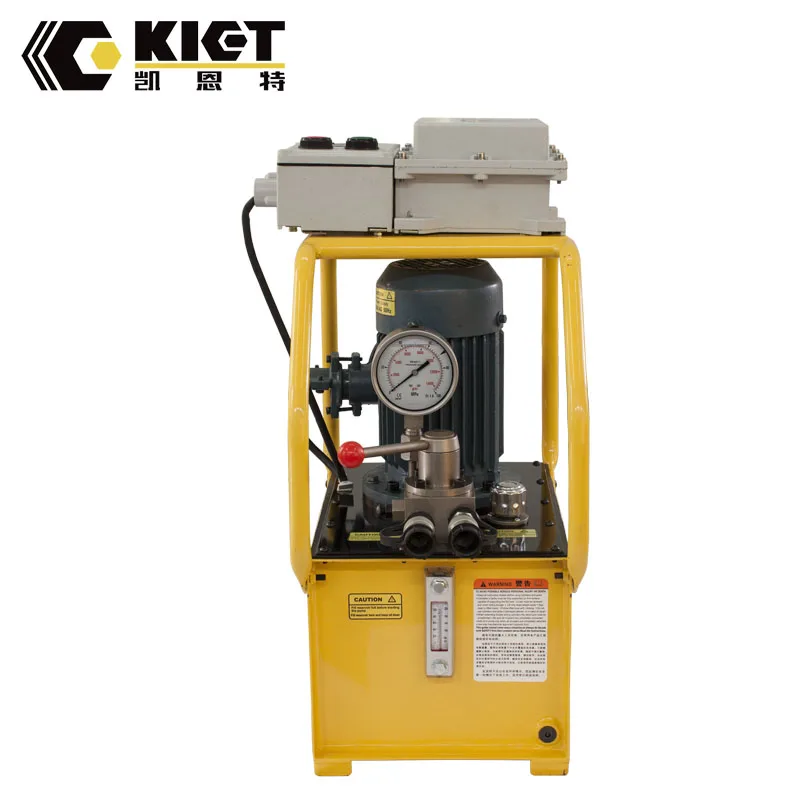

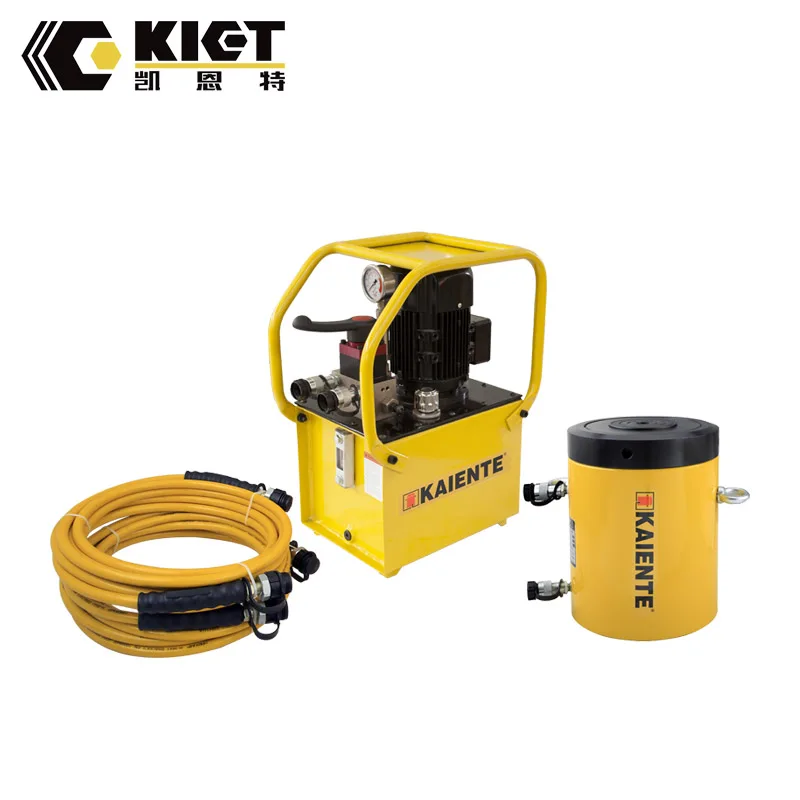

KIET Brand SSB Series High Pressure Electric Hydraulic Pump Hydraulic Power Pack Unit
Features:
Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant, durable.Lightweight and compact design make it easy to moved. Double speed pump design, with the high flow in low pressure. The actuator can be fast moved on no- load status. Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibratethe working pressure and aviod the over load. Motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both double acting and single acting cylinders. Choosing the solenoid valve electric hydraulic pump, remote operation can be realized.
Product Parameter
No. | Model Number | Max Working Pressure (Bar) | flow rate(L/min) | Voltage (v) | Motor power (Kw) | Valve Function | Useable Oil Capacity (L) | Frequency(Hz) |
1 | SSB-55 | 700 | 0.4 | 220 | 0.55 | Manual Vavle | 10 | 50 |
2 | SDB-55 | 700 | 0.4 | 220 | 0.55 | Solenoid valve | 10 | 50 |
3 | DSB-75 | 700 | 1 | 380 | 0.75 | Manual Vavle | 16 | 50 |
4 | SSB-75 | 700 | 1 | 380 | 0.75 | Solenoid valve | 16 | 50 |
5 | DSB-220 | 700 | 2 | 380 | 2.2 | Manual Vavle | 32 | 50 |
6 | SSB-220 | 700 | 2 | 380 | 2.2 | Manual valve | 32 | 50 |
7 | SDB-220 | 700 | 2 | 380 | 2.2 | Solenoid valve | 32 | 50 |
8 | SSB-550 | 700 | 4.5 | 380 | 5.5 | Manual Valve | 70 | 50 |
9 | SDB-550 | 700 | 4.5 | 380 | 5.5 | Solenoid valve | 70 | 50 |
10 | SSB-750 | 700 | 6 | 380 | 7.5 | Manual Valve | 100 | 50 |
11 | SDB-750 | 700 | 6 | 380 | 7.5 | Solenoid valve | 100 | 50 |
Shipping:
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

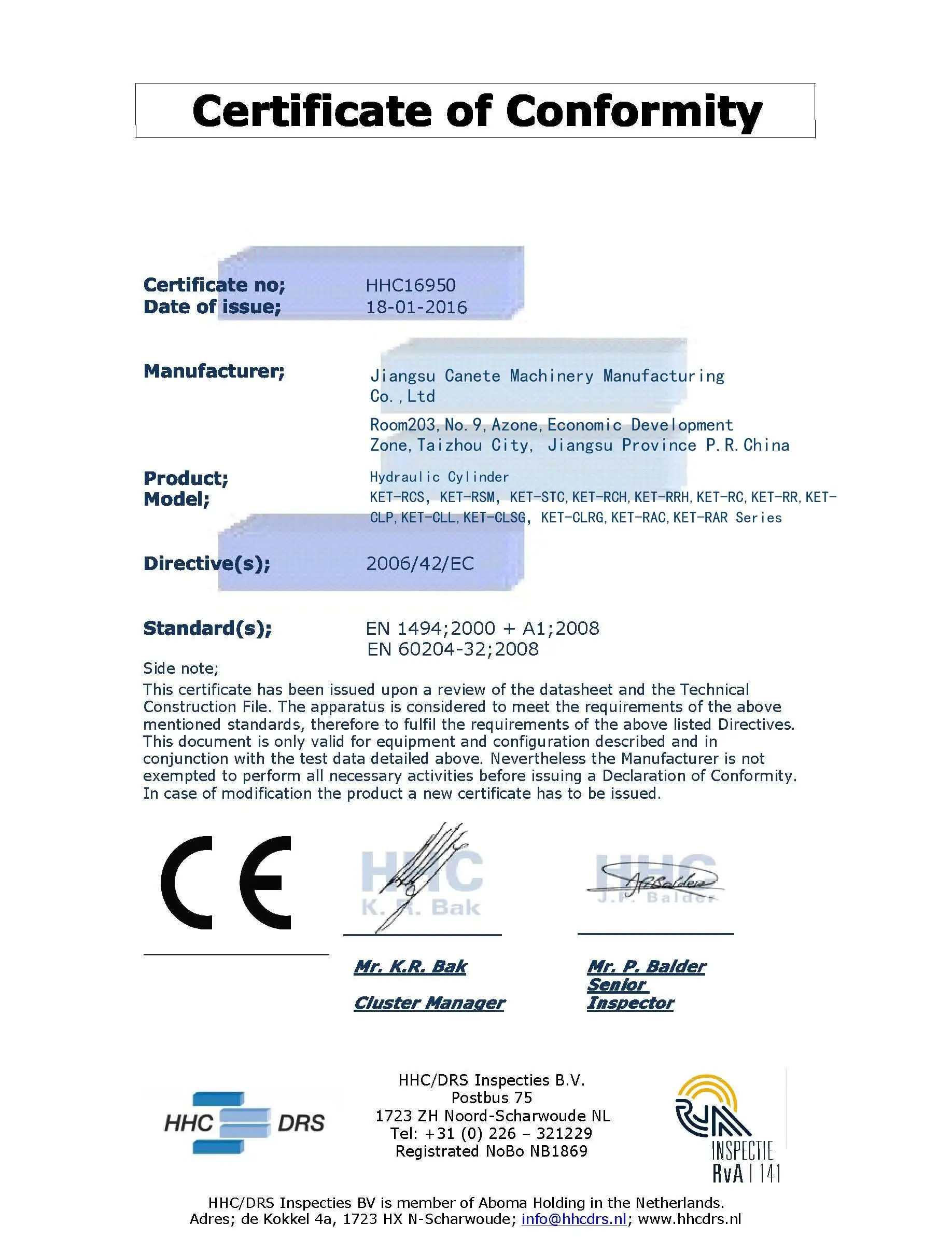

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:

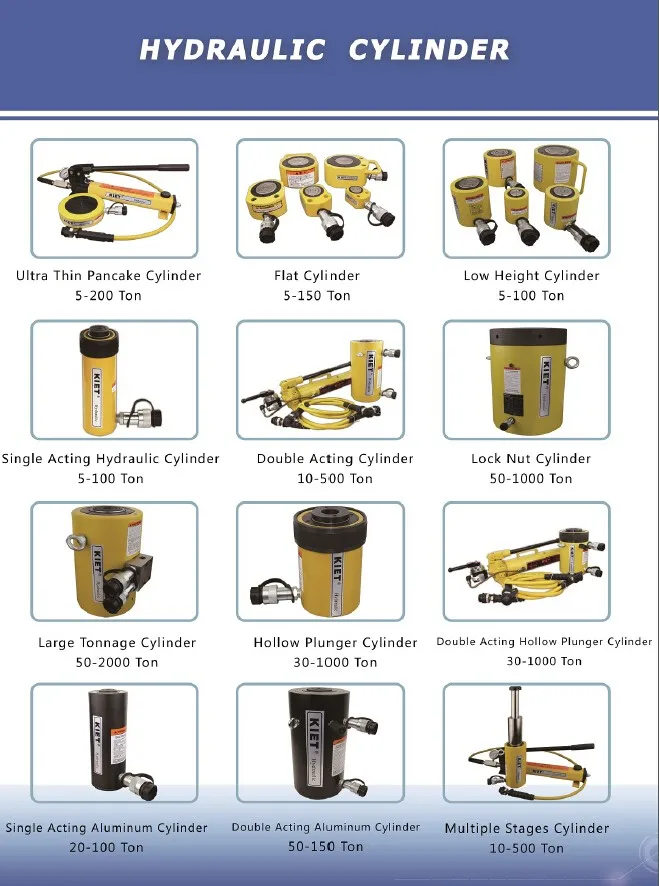

• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
KIET provides one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.
