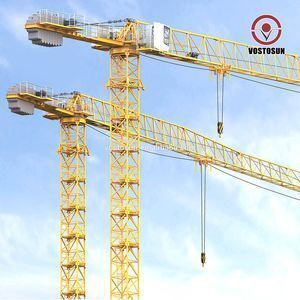

25t Topless XGT8039-25 Inner Climbing Used Tower Crane Small Tower Crane truck mounted crane

Supplier: Shanghai Vostosun Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Wang Jing
Price: $36230.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,No after-sales service;	Applicable Industries:	Construction works ;
Section material:	Square tube/Folding;	Warranty:	1 Year;
Rated Lifting Moment:	560t.m;	Basic height:	74M;
Feature:	Tower Crane;	Port:	Qingdao port, Shanghai port, Tianjin port, or others as request;
Tip load:	3.9/5/6/7/8/9/10.5/12.2/13.8;	Place of Origin:	Jiangsu China (Mainland);
Supply Ability:	50 Set/Sets per Month Stationary hydraulic concrete placing boom hg32;	Application:	Construction;
Packaging Detail:	ROLL shipment or Bulk break shipment. Standard packing, spare parts will put into the wooden cases then transport by the container, or as request, each machine and spare part will be matched with a nameplate in customer local language....;	Rated Loading Capacity:	25t;
Span:	80m;	Max. Lifting Height:	272.35M;
Section size:	250025005950;	Brand Name:	XCGM;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,BANK OF KUNLUN;
Condition:	New;	Certification:	CE ISO;
Length:	80/75/70/65/60/55/50/45/40;

Product Description

Type	XGT8039-25
Basic height	68.8M/80.7M
Max height	271.1M/283M
Length	80/75/70/65/60/55/50/45/40
Max load	25t
Tip load	3.9/5/6/7/8/9/10.5/12.2/13.8
Section size	2500×2500×5950
Section material	Square tube/Folding

XGT8039-25
Items	Mechanism	Speed(m/min)		Rope capacity	Motor(Kw)
Hoist mechanism	110JLF63	2 multiplying power	0-90	660M >660M*	110
		4 multiplying power	0-45
Trolleying mechanism	15DFV16	0-60m/min			15
Slewing mechanism	JH12CT5	0-0.6r/min			3×9
Travelling	RT	0-25m/min			6×5.2
Main Supply	380V(±10%)/50Hz*
Gross Power(Excluding climbing and travelling):152Kw

Product Advantages

1. The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.

2. Max. jib length: 80m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 40 meters.

3. Max. lifting capacity 25t.

4. With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.
