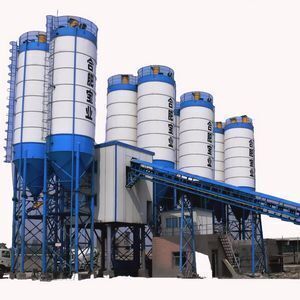

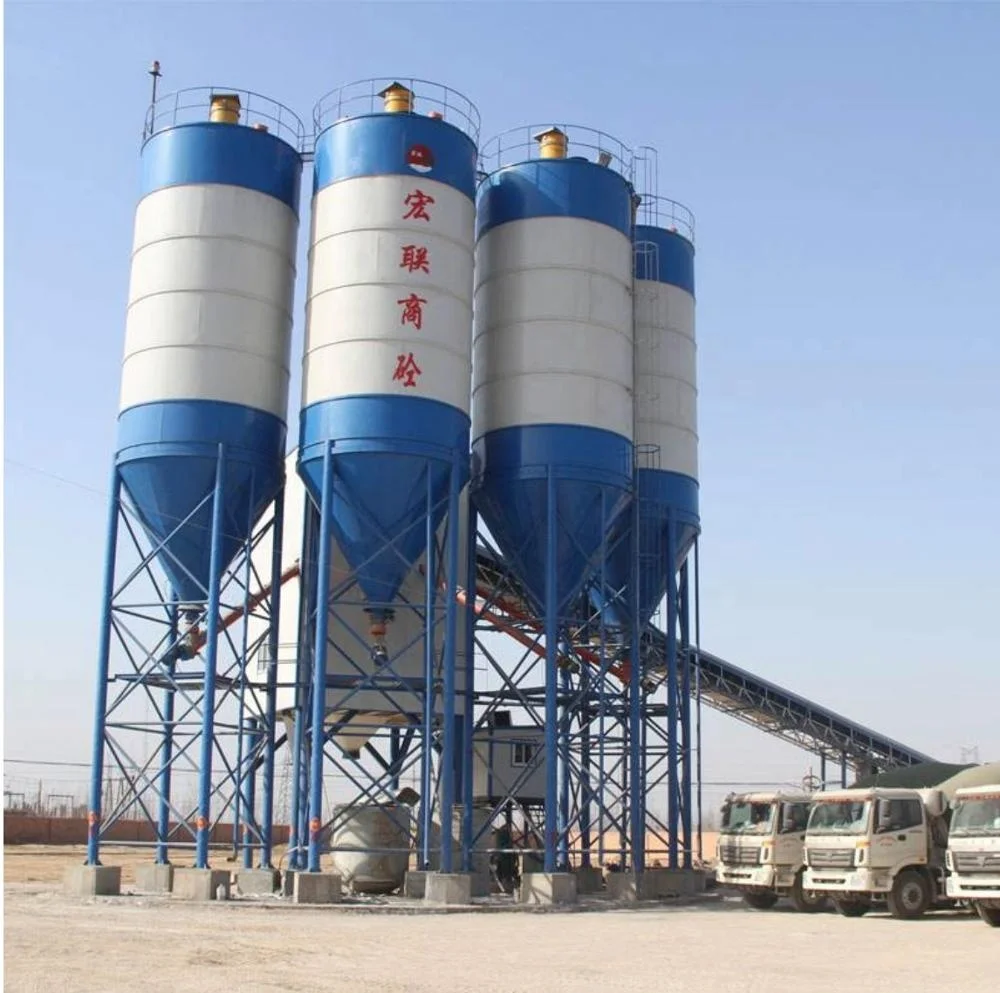

Mobile Concrete batching plant HZS50

Supplier: Shanghai Vostosun Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Wang Jing
Price: $100000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Condition:	New;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,No after-sales service;
Place of Origin:	Shanghai China;	Applicable Industries:	Building Material Shops,Construction works ;
Warranty:	1 Year;	Payment Terms:	L/C,T/T;
Supply Ability:	30 Set/Sets per Year;	Power Type:	Gasoline;
Product name:	Concrete;	Certification:	ISO CE;
Brand Name:	VOSTOSUN;	Port:	Shanghai;

Product Description

Model			HZS60	HZS90	HZS120	HZS180	HZS200
Theoretical productivity		m³/h	60	90	120	180	200
Mixer nominal capacity		m³	1	1.5	2	3	4
Aggregate bin: quantity and capacity		m³	3×12	4×12	4×15	4×25	4×30
Max. weighing value	Aggregate	kg	3000	4×1200	4×2000	4×3000	4×4000
	Cement	kg	600	1000	1200	1800	2000
	Flyash	kg	-	300	400	400	800
	Water	kg	250	400	500	800	1200
	Additive	kg	40	40	50	80	80
Measuring accuracy	Aggregate	%	±2
	Powder	%	±1
	Water	%	±1
	Additive	%	±1
Unloading height			3.8m	3.8m	3.8m	4m	4m
Dimension (length× width)		m	31×16	27×16.2	47×22	58×19	68×22

Packaging & Shipping

Product Advantages

Why Choose Us

Ø CORE VALUE:

Integrity, Profession, Efficiency, Gratitude, and Responsibility

Ø GOAL AND VISION:

Committed To Becoming a Professional Solution Provider For Centralized Procurement And Supply Of

Engineering, Mining And Mineral Powder Processing Projects.

Ø OUR MISSION:

Your Requirements For Equipment Selection, Quality, Cost, Delivery, Risk Control And After-Sales Service,

Your Service Requirements For Overseas Markets,They Are Our Existing Value And Unremitting Pursuit!

FAQ

Q:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.

Q: Whats's the warranty time?
A:From the date of shipment,1 year or 1500 working hours,whichever comes first.

Q:What`s the international project experience?
A: Kazakhstan Astana Capital Moving Projuct,
Russia Voronezh Nuclear Power Station,
Shanghai Pengxin Mining Congo(Gold) Copper Project,
Equatorial Guinea National Highway Equipment General Contracting

Q:What`s the technical support or partnership?
A: Institute of Powder Engineering, Tsinghua University.
Chinese Academy of Geological Sciences.
China Academy of Building Research
