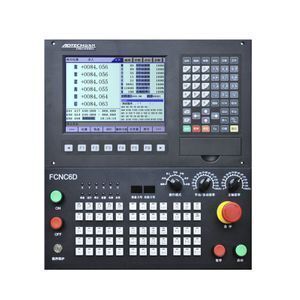

CNC controller for lathe/turning with auto tool changer function LE

Product details
Supply Ability:100 Set/Sets per Week;Payment Terms:T/T,Western Union;
Display:7.0 inch english HMI;Weight:7.0kg;
Auto tool changer:Avaliable;Additional panel:Avaliable;
Place of Origin:Guangdong China;Brand Name:ADTECH;
Application:Lathe and Turning Center;Certification:CE,CCC;
Dimension(L*W*H):43*33*30;Processing accuracy:0.001mm;
Max. control axes:2 axes;Manual pulse generator:Avaliable;
Condition:New;AutoCAD:Avaliable;
Packaging Detail:Standard export carton;G code:Avaliable;
Port:Shenzhen Port;
Product Description



  • 7.0 Inch TFT color display, 800 X 400 hight resolution display Ethernet network interface, 10/100M enthernet port.
  • U flash and USB communication port, USB TO PC communication connector.
  • Multi-language
  • Additional plate (FCNC4M) and MPG (CNC4A)
  • ARM 9 CPU+FPGA double core processor
  • Four chanel 2 mb/s high speed pulse output , 6 chanel AB phase encoder
  • Two chanel serial RS232 connector.
  • SD card big capacity memory connector.
  • Support 4 axis linkage.
  • Self-diagnosis
    Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating.
  • Compensation
    Automatic reverse clearance compensation
    Automatic tool length compensation
    Automatic tool radius compensation
    Automatic tool radius biasing and automatic tool tip transition
  • Abundant instruction system
    Scaling instruction
    Mirror processing instruction
    Tool biasing instructions
    Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
    Fixed-point instructions: starting point, setting point, etc.
    Linear, arc and spiral interpolation instructions
    Six workpiece coordinate systems, nine extension coordinate systems and one reference point
  • Full English menu operation & full screen edit
    4640/4620 CNC control system uses cascading menu structure and full Chinese operation to ensure simple operation and visibility.
  • Abundant error-correction functions
    Point out the nature and correct the errors in operation.
  • Program exchange between CNC system and PC
    Perform CAD/CAM/CAPP auxiliary programming with abundant software in PC, and then transmit CNC program to the system through communication interface (USB disk, RS232 interface), or transmit the programs from the system to PC.
  • CNC system operating condition

    Operating voltage

    24V DC (with filter)

    Operating temperature

    0°C— 45°C

    Optimum operating temperature

    5°C— 40°C

    Operating humidity

    10%——90%(no condensing)

    Optimum operating humidity

    20%——85%

    Storage temperature

    0°C—50°C

    Storage humidity

    10%——90%

    Operating environment

    No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference
