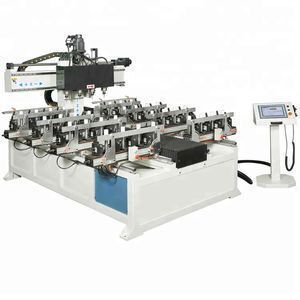

SDC-SC4-2000 Chair Making 4-driller CNC Seat Mortising Machine

Product details
Servo motor power:1.0kw*3;Dimension(L*W*H):3230*2230*1900mm;
Place of Origin:Shanghai China;Packaging Detail:SDC-SC4-2000 Chair Making 4-driller CNC Seat Mortising Machine usually packed by plywood case or shrink film;
Power(W):17.8kw;Wheel base of cutter heads:200mm;
Weight:1650kg;Max. Z-axis stroke:220mm;
Automatic Grade:Automatic;Condition:New;
Payment Terms:L/C,T/T,30% Advanced Payment,70% Balance Remitted Before Shipment;Warranty:1 Year;
Voltage:380v/50hz/3ph or customized;After-sales service:Engineers are available to serve overseas;
Sample:Not available;Max. X-axis stroke:1200mm;
Port:Shanghai port;Drill Diameter:200MM;
Application:Woodworking;Main spindle power:3.7kw*4;
Supply Ability:30 Set/Sets per Month lock mortising machine;Quantity of dust inlet:150mm*2;
Certification:CE & ISO;Brand Name:Shanghai Fuma;
Max Y-axis stroke:2000mm;After-sales Service Provided:Field installation, commissioning and training;
Applicable Industries:Manufacturing Plant,portable wood door lock mortiser machine;Motor Speed:18000r/min;

Product Description

SD-SC4-2000  Chair Making 4-driller CNC Seat Mortising Machine



Characteristics:

1. Straight-groove mortises, profiled-groove mortises and combined hole groove mortises.
    Tool setting at tool setting point and machine tuning are easter.
2. Onginaly developed wizard style machining data input, Eliminate the requirement of manpower for this.

3. Four cutters and duplex stages.

4. Cycle machining at fast speed.
5. Support all CAD files to import graphics.
6. Perfect design at the very low price.



Model

SDC-SC4-2000

Max. X-axis stroke

1200mm

Max. Y-axis stroke

2000mm

Max. Z-axis stroke

220mm

Wheelbase of cutter heads

200mm

Spindle speed

1800r/min

Spindle power

3.7kw*4

Servo motor power

1.0kw*3

Total installed power

17.8kw

Dust suction inlet

150mm*2

Overall size

3230*2230*1900mm

Weight

1650kg







Our Customers:



Our Big Family:



FAQ



Warranty?

Mechanical parts one year,Electrical parts three months



Any aftersale support available?

Yes we have, Engineers available to service machinery overseas



Payment:

TT 30% advanced payment,70% balance remitted before shipment.

Packaging & Shipping



Packing detail:

Shrink film,plywood case packing will have extra cost.



Our Services







Company Information

 Shanghai Fuma Woodworking Machinery & Equipment Co., LTD is specialized in the area of making woodworking machine, and also run as an agent by selling for various brands and plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please do not hesitate to contact us for more information.
