Supply Ability: | 30 Set/Sets per Month; | Hogger spindle speed: | 2840rpm; |
Pressing thickness: | 20-80mm; | Place of Origin: | Shanghai China; |
Pressing Width: | 30-150mm; | Power(W): | 61.6KW; |
Air Pressure: | 6-8bar; | Shaping thickness: | 20-150mm; |
In-fedding length: | 150-900mm; | Condition: | New; |
Max.pressing lenth: | 6040mm; | Weight: | 7500kg; |
After-sales Service Provided: | Field installation, commissioning and training; | Port: | shanghai port; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | One year; |
Shaper spindle diameter: | 50mm; | Brand Name: | FUMA; |
Payment Terms: | L/C,T/T,30% Advanced Payment,70% Balance Remitted Before Shipment; | Voltage: | 380V 50HZ 3PH; |
Hogger spindle diameter: | 30mm; | Packaging Detail: | FJL150-8 Full Automatic Finger Joint Line Machine(2.5M-6M) Usually packed by plywood case or shrink film; |
Shaper spindle speed: | 6750rpm; | Certification: | CE; |
Dimension(L*W*H): | One 40ft Container; |

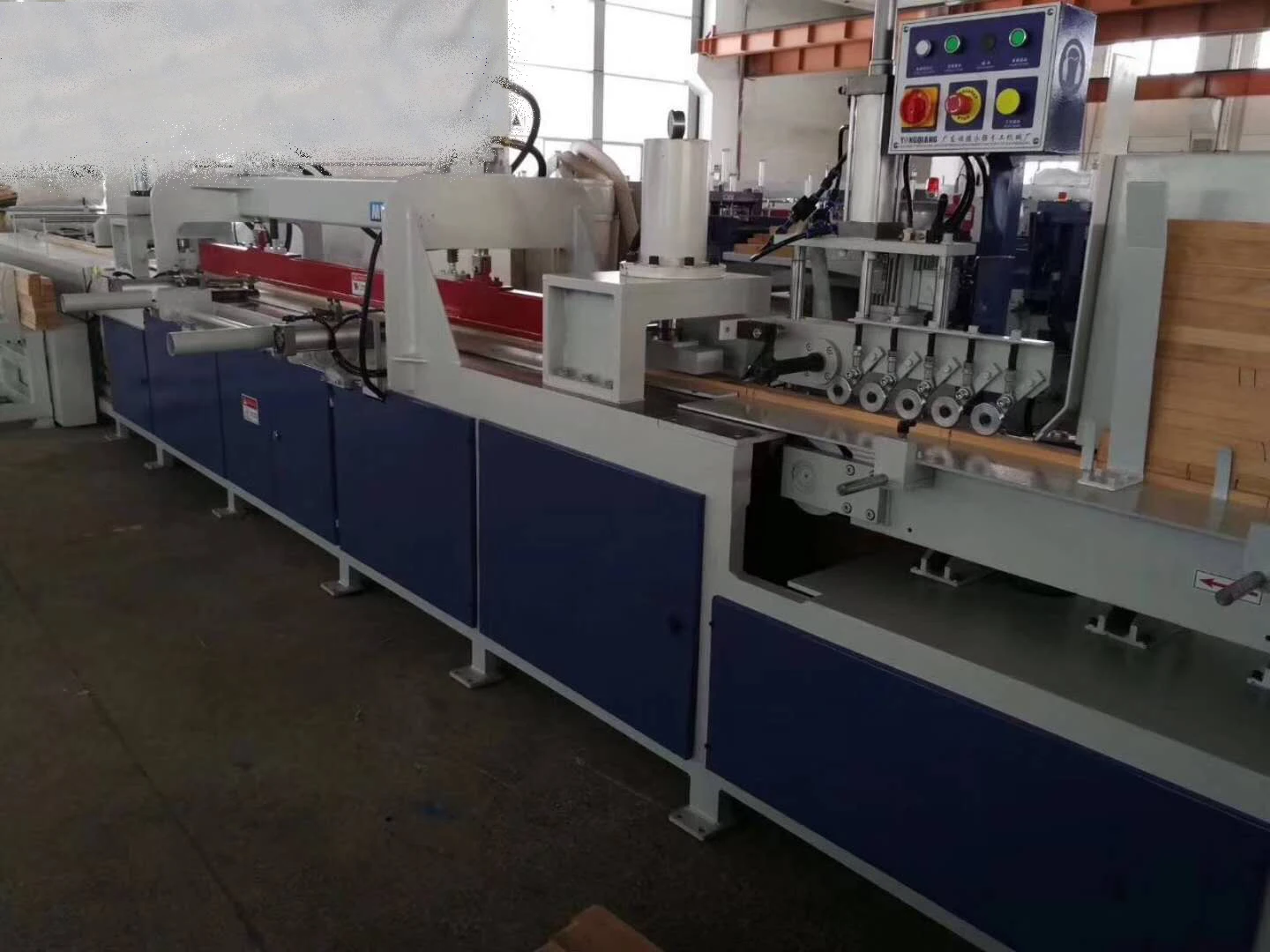

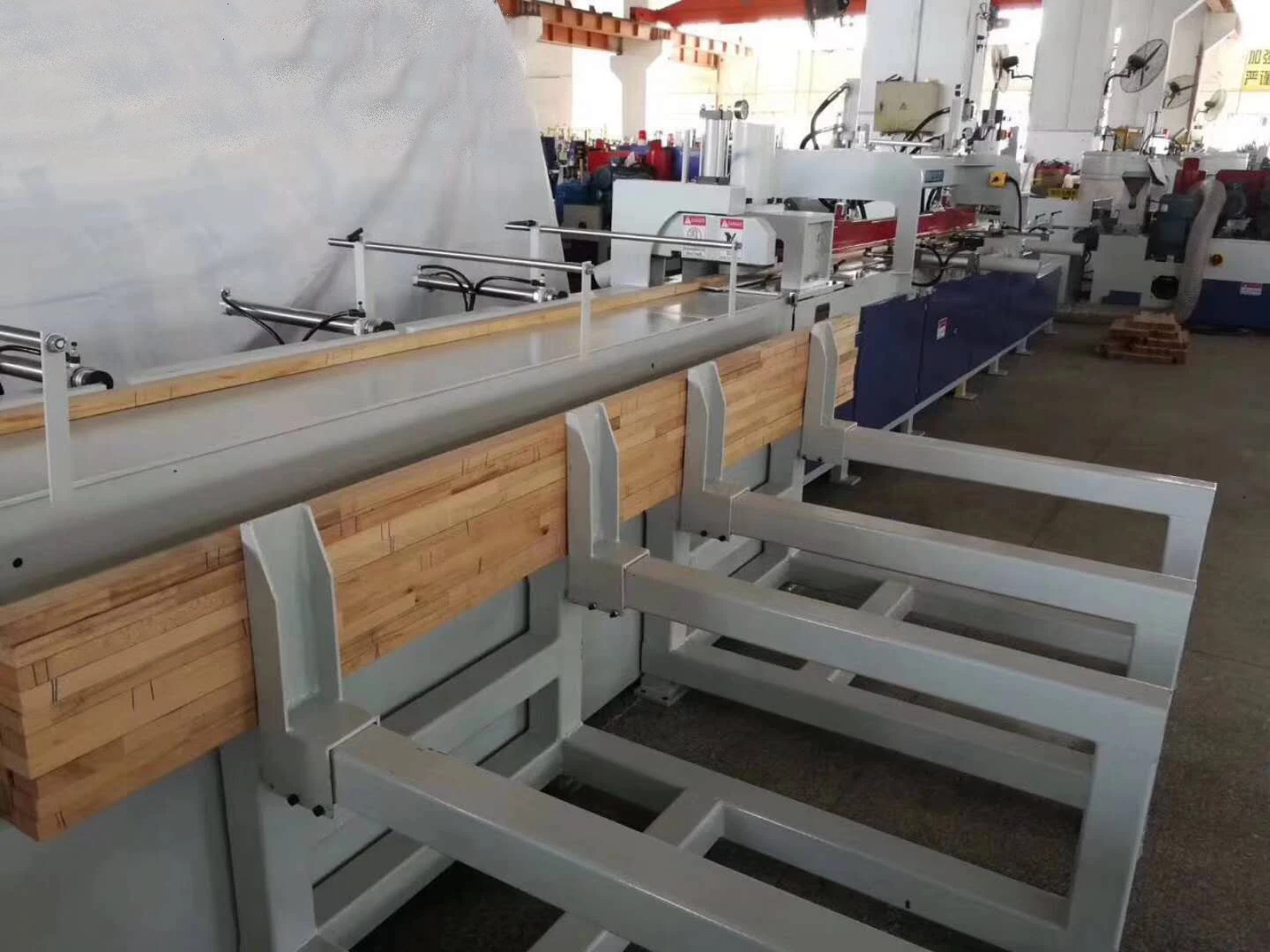

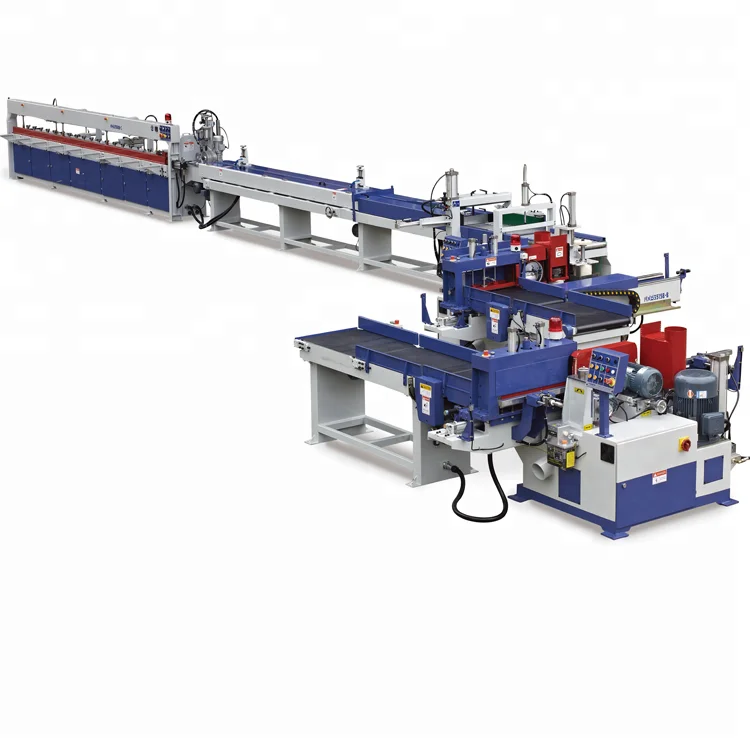

FJL150-8 Full Automatic Finger Joint Line Machine (2.5M-6M)
MODEL | FJL150-8 | |
Infeed length | 80-900mm | |
Shaping thickness | 14-150mm | |
Max. working width of shaper working table | 590mm | |
Pressing thickness | 20-80mm | |
Pressing width | 30-150mm | |

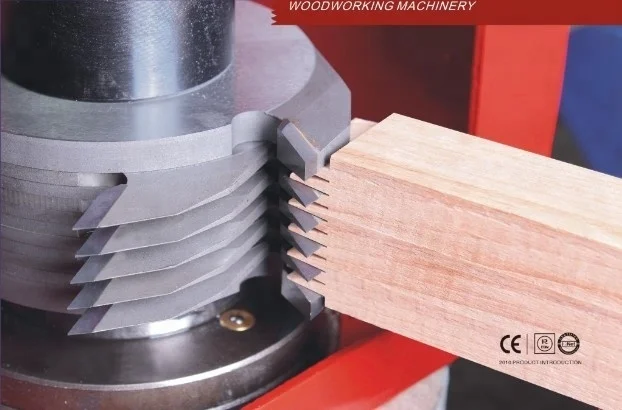

Shaper spindle diameter | Φ50mm | |
Shaper spindle speed | 6750rpm | |
Hogger spindle diameter | Φ30mm | |
Hogger spindle speed | 2840rpm | |
Max. pressing length | 6040mm | |
Max. thrust force | 7500kg | |
Motor Power
| Shaper spindle power | 15kw×2 |
| Hogger power | 4kw×2 |
| Total conveyor power for shaper | 0.75kw×3 |
| Hydraulic system power for shaper | 0.75kw×2 |
| Hydraulic system power for press | 4kw |
| Saw blade power for press | 4kw |
| Total conveyor power for press | 1.5kw |
| Total power for belt conveyor | 1.5kw |
| Total power for roller conveyor | 2.25kw |
| Total power for chain conveyor | 3.75kw |
| Total motor power | 58.75kw |
Remark | Working air pressure | 6-8Bar |
| Wind measure of dust collector | 9000m³/h |
| Fixing dimensions | 18000×6000m |
Our Customers:
Warranty?
Mechanical parts one year,Electrical parts three months
Any aftersale support available?
Yes we have, Engineers available to service machinery overseas
Payment:
TT 30% advanced payment,70% balance remitted before shipment
Packing detail:
Shrink film,plywood case packing will have extra cost.
