Electronic Wool Yarn Spinning Machine DW7040H

Product details
Design:Mini-type design,;Place of Origin:China;
Port:BY NEGOTIATION;Weight:320kg;
After-sales Service Provided:Engineers available to service machinery overseas;Power(W):1500W;
Packaging Detail:Standard packaging of wool yarn spinning machine;Certification:CE ISO;
Power supply:220V,50Hz;Condition:New;
Payment Terms:L/C,T/T,Western Union;Application:Lab Ring Spinning Machine;
Diplay:PLC;Automatic:Yes;
Supply Ability:1000 Set/Sets per Year;After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training;
Production Capacity:99.9%;Product name:Open End Yarn Spinning Machine;
Applicable Industries:Manufacturing Plant;Warranty:1 Year;
Brand Name:FYI;Type:Spinning Production Line;
Spinning Method:Ring Spinning;Dimension(L*W*H):1200*800*1600mm;

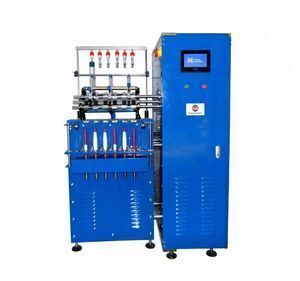

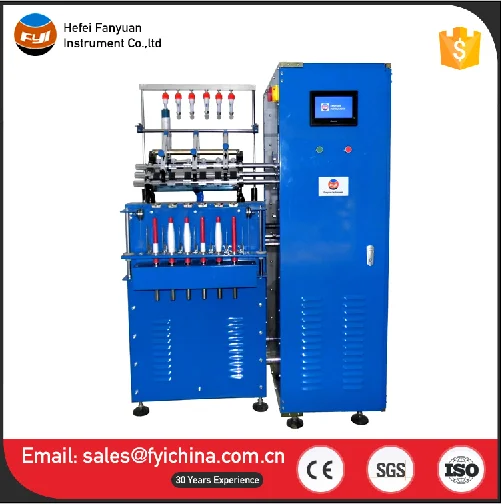

DW7040H Electronic Wool Yarn Spinning Machine



Application:



Electronic Wool Yarn Spinning Machine  is used to spin roving to be spun yarn through drafting and ring spinning. It’s the ideal system for teaching, researching, etc.





Features:



l          Use S/Z twist reversing;



l          High-efficiency imported frequency converter;



l          Drafting, spindle blade, flyer or moulding drive independently;



l          Mini-type design, easy to clean, set and maintain;



l          PLC + touch screen, easy to learn and operate;



Key Specification of Electronic Wool Yarn Spinning Machine:



Suitable fiber type



Wool yarn,Cotton Yarn



Length of machinable fiber



Wool fiber, 55~90mm



Control mode



PLC & touch screen



Language



English



Density of yarn



6~99tex(6~100Ne)



Spindle gauge



75mm



Number of spindles



6



Ring diameter



53



Pressure mode



Pendulum arm



Upper roller diameter



Front roller 50mm, middle roller 50mm, back roller 50mm



Down roller diameter



Front roller 35mm, middle roller 35mm, back roller 35mm

Distance of rollersFrontbetween back: max. 230mm, manually-adjustable



Spindle length



205mm



Suitable twist



200~2000 (T/m)



Draft Range



Approx. 2-50



Draft Rangecontrol



Automatic



Twist



S or Z



Max speed of spindle



8000rpm
