Packaging Preview: | Mixing tank: | 1L or customized | |
place of origin; place of origin: | Anhui, China | Certificate: | Chief Executive |
weight: | 300kg | Spinning method: | ring spinning |
Material: | 316L stainless steel | type: | Spinning production line |
Warranty: | 1 year, 1 year | Production capacity: | high speed |
Video external inspection: | if | Health status: | new |
Sample size: | 200~ 600ml | automatic: | Yes |
brand: | for reference | strength: | 6kW |
Spinneret: | 1 | Marketing Type: | New Products 2020 |
Mechanical test report: | if | Sales unit: | single product |
application: | Wet spinning machine | heating power: | 0.6kW |
Core Components Warranty: | 1 year | Single package size: | 175X66X80cm |
Dimensions (L*W*H): | 850*800*12,000 mm | Packaging Details: | Laboratory Scale Wet Spinning Machine Standard Packaging |
Key words: | Wet spinning machine | product name: | Laboratory Scale Wet Spinning Machine |
Core components: | motor | Gross weight per piece: | 150.000 kg |
Serve: | Engineers can serve overseas | Showroom location: | Indonesia, Bangladesh |
Applicable industries: | manufacturing plant |

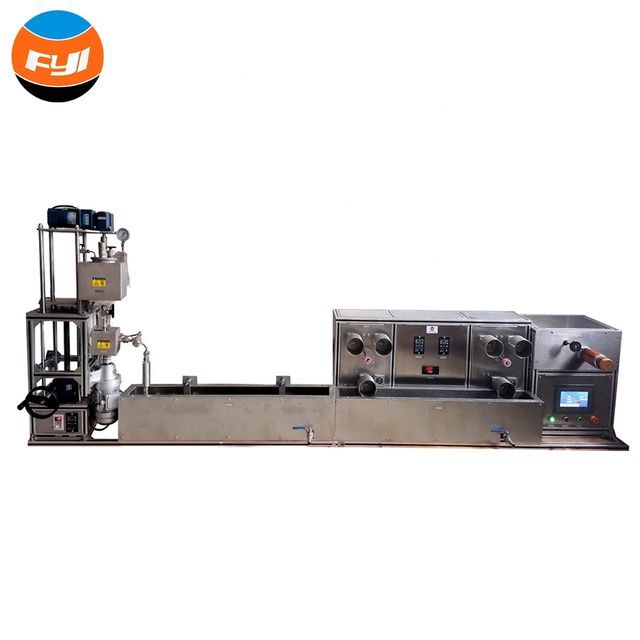

DW7091A Laboratory Small Wet Spinning Machine
application:
Deutsche Welle7091A Laboratory Small Wet Spinning MachineSuitable for preparing seaweed fiber, polyester, polypropylene, vinylon, aramid, acrylic, polyvinyl chloride fiber, common viscose fiber, Lyocell, MODAL, Tencel, Newcell and other long and short fibers, BCF filament and other chemical fiber materials, chitosan Fiber, soy protein fiber and milk protein fiber.
Routing:
Solution tank (with heating, stirring, vacuum defoaming) - metering pump (with heating) - filter (with heating) - gooseneck - spinneret cover (with filter) - coagulation bath - Three-Roll Drafting (1) - Drafting Bath - Three-Roll Drafting (2) - Hank Winding
l Solution tank |
Volume: 2L; Material: 316L |
l Heating method |
Circulating hot water heating |
l Tank heating power |
4kW |
l Hot water tank capacity |
20L |
l Gooseneck |
Material: 316L |
l Spinneret cover |
Material: Tantalum; Bore diameter: Ø 0.07 mm |
l Metering pump reduction ratio |
1:59 |
l Three-roll drafting (1) |
Dimensions: Ø 100 x 80 mm; Material: 316L; Line speed: 1 - 20 m/min |
l Three-roll drafting (2) |
Dimensions: Ø 100 x 80 mm; Material: 316L; Line speed: 1 - 20 m/min |
l Winding speed |
10-40m/min |
l Control method |
The touch screen control adopts PLC communication module, and the drum adopts inverter control |
l Power |
AC 220V, 50Hz, 6kw |
l Control cabinet size |
800*600*1,400mm |
l Overall size |
850*800*12,000 mm |
l Weight of the whole machine |
≤300kg |
